Thermo Scientific TRACE™ 1310 Natural Gas ...

Thermo Scientific - TRACE™ 1310 Natural Gas (NG) and Natural Gas Liquid Analyzer (NGL)

Supplier: Thermo Fisher Scientific Australia Pty Ltd

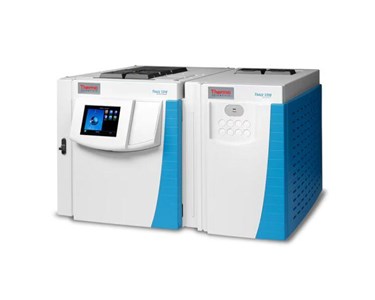

TRACE™ 1310 Natural Gas (NG) and Natural Gas Liquid Analyzer (NGL)

This dual-channel analyser is tailored for comprehensive testing of natural gas (NG) and natural gas liquids (NGL), offering reliable solutions for compliance with GPA 2261 standards.

Simultaneous dual-sample analysis for NG and NGL with high precision and compliance to international standards.

The dual-channel analyser provides advanced analysis capabilities for both natural gas (NG) and natural gas liquids (NGL), ensuring precise measurement and regulatory compliance. Select from more than 15 turnkey analyser combinations designed for routine and specialised analyses of NG and NGL according to international standards (GPA, ASTM, ISO, DIN).

Key Features

Gas chromatograph system equipped with a 12 cm colour touchscreen for intuitive control.
Dual-channel design allows simultaneous analysis of two different samples, increasing productivity.
Supports early regrouping peaks for C6+, individual peaks for O₂, N₂, CO₂, methane, ethane, and C₃–C₅ per channel.
Modified to deliver separate peaks for O₂ and N₂.
Turnkey solution for both standard and modified analytical workflows.
Comes with eight packed columns and two TCD (Thermal Conductivity Detector) sensors.
Equipped with a heated auxiliary valve oven featuring two 10-port injection valves and four 6-port column switching valves.
Easy maintenance thanks to modular Instant Connect injectors and detectors.

Technical Specifications

Detector Type	TCD (Thermal Conductivity Detector)
Sensitivity	Hydrocarbons: 0.005%, Permanent gases: 0.01%, H₂S: 0.05%
Linear Dynamic Range	1 × 10⁵
Säulenkapazität (Column Capacity)	8
Maximum Temperature	450 °C (GC), 400 °C (detector)
Maximum Heating Rate	125 °C/min
Heated Zones	6
Power Supply	120 V ± 10%
Dimensions (H × W × D)	45 × 53.5 × 67 cm
Weight	41 kg
Sample Throughput	Single or dual sample analysis per run, thanks to dual-channel system
Compliance	GPA 2261 and other international standards

System Advantages

Combines flexible configuration with user-friendly operation and high reliability.
Provides vital composition, heating value, and impurity information for gas production, storage, and distribution.
Developed by a specialist team with over 60 years of experience.

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific TRACE™ 1310 Natural Gas (NG) and Natural Gas Liquid Analyzer (NGL) use Get a quote.

Key Features

Gas chromatograph system equipped with a 12 cm colour touchscreen for intuitive control.
Dual-channel design allows simultaneous analysis of two different samples, increasing productivity.
Supports early regrouping peaks for C6+, individual peaks for O₂, N₂, CO₂, methane, ethane, and C₃–C₅ per channel.
Modified to deliver separate peaks for O₂ and N₂.
Turnkey solution for both standard and modified analytical workflows.
Comes with eight packed columns and two TCD (Thermal Conductivity Detector) sensors.
Equipped with a heated auxiliary valve oven featuring two 10-port injection valves and four 6-port column switching valves.
Easy maintenance thanks to modular Instant Connect injectors and detectors.

Technical Specifications

Detector Type	TCD (Thermal Conductivity Detector)
Sensitivity	Hydrocarbons: 0.005%, Permanent gases: 0.01%, H₂S: 0.05%
Linear Dynamic Range	1 × 10⁵
Säulenkapazität (Column Capacity)	8
Maximum Temperature	450 °C (GC), 400 °C (detector)
Maximum Heating Rate	125 °C/min
Heated Zones	6
Power Supply	120 V ± 10%
Dimensions (H × W × D)	45 × 53.5 × 67 cm
Weight	41 kg
Sample Throughput	Single or dual sample analysis per run, thanks to dual-channel system
Compliance	GPA 2261 and other international standards

System Advantages

Combines flexible configuration with user-friendly operation and high reliability.
Provides vital composition, heating value, and impurity information for gas production, storage, and distribution.
Developed by a specialist team with over 60 years of experience.

Read less...

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific TRACE™ 1310 Natural Gas (NG) and Natural Gas Liquid Analyzer (NGL) use Get a quote.
