Thermo Scientific - TVA2020 Toxic Vapor Analyzer

Supplier: Thermo Fisher Scientific Australia Pty Ltd

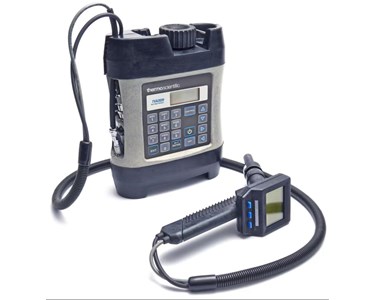

TVA2020 Toxic Vapor Analyzer

The TVA2020 is a portable analyser designed for the detection of toxic vapours, offering rapid identification of organic and inorganic compounds in demanding applications.

Rapid, dual-detection of toxic vapours in a lightweight, portable unit.

Main Features

Portable and intrinsically safe vapour analyser
Detects both organic and inorganic compounds with FID and optional PID technology
Lightweight (21% lighter than previous models) and compact design for easy transport and reduced user fatigue
Bluetooth™ connectivity for wireless data transfer
Fast response times and user-friendly maintenance
Configurable with standard or enhanced probe, transport case, and hydrogen refill unit
Designed for environmental monitoring, site remediation, and compliance testing (e.g., EPA Method 21)

Technical Specifications

Detection Technologies	FID or FID/PID (dual option)
Measurable Range	FID: 0 – 30,000 ppm (Methane) PID: 0 – 2,000 ppm (Isobutene)
Accuracy	FID: ±10% of reading or ±1 ppm (greater of the two), 1–10,000 ppm PID: ±20% of reading or ±0.5 ppm (greater of the two), 0.5–500 ppm
Min. Detectable Level	FID: 0.5 ppm (Methane) PID: 0.5 ppm (Isobutene)
Repeatability	FID: 2% at 500 ppm Methane PID: 1% at 100 ppm Isobutene
Response Time	<3.5 seconds for 90% of final value (FID: 10,000 ppm Methane; PID: 500 ppm Isobutene)
Operating Temperature	–10°C to +45°C
Battery Type & Life	Lithium-ion, minimum 10 hours operation, full charge in <10 hours
Dimensions (W x D x H)	22.9 cm x 10.2 cm x 29.2 cm
Weight	FID only: 4.17 kg \| Dual: 4.26 kg
Power Requirements	100-230 V
Inputs/Outputs	Bluetooth™, USB
Calibration Kit	FID: CR009UY Dual: CR012UH
Warranty	1 year from date of delivery

Additional Features

Automatic or user-selectable data points collection (from every second to every 999 minutes)
Automatic protocol parameter activation, alarm set-up and response factors customisation available
Compatible with monitoring routes and LDAR database integration
Accessories: Standard/enhanced probes, carrying case, hydrogen refill unit

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific TVA2020 Toxic Vapor Analyzer use Get a quote.

Main Features

Portable and intrinsically safe vapour analyser
Detects both organic and inorganic compounds with FID and optional PID technology
Lightweight (21% lighter than previous models) and compact design for easy transport and reduced user fatigue
Bluetooth™ connectivity for wireless data transfer
Fast response times and user-friendly maintenance
Configurable with standard or enhanced probe, transport case, and hydrogen refill unit
Designed for environmental monitoring, site remediation, and compliance testing (e.g., EPA Method 21)

Technical Specifications

Detection Technologies	FID or FID/PID (dual option)
Measurable Range	FID: 0 – 30,000 ppm (Methane) PID: 0 – 2,000 ppm (Isobutene)
Accuracy	FID: ±10% of reading or ±1 ppm (greater of the two), 1–10,000 ppm PID: ±20% of reading or ±0.5 ppm (greater of the two), 0.5–500 ppm
Min. Detectable Level	FID: 0.5 ppm (Methane) PID: 0.5 ppm (Isobutene)
Repeatability	FID: 2% at 500 ppm Methane PID: 1% at 100 ppm Isobutene
Response Time	<3.5 seconds for 90% of final value (FID: 10,000 ppm Methane; PID: 500 ppm Isobutene)
Operating Temperature	–10°C to +45°C
Battery Type & Life	Lithium-ion, minimum 10 hours operation, full charge in <10 hours
Dimensions (W x D x H)	22.9 cm x 10.2 cm x 29.2 cm
Weight	FID only: 4.17 kg \| Dual: 4.26 kg
Power Requirements	100-230 V
Inputs/Outputs	Bluetooth™, USB
Calibration Kit	FID: CR009UY Dual: CR012UH
Warranty	1 year from date of delivery

Additional Features

Automatic or user-selectable data points collection (from every second to every 999 minutes)
Automatic protocol parameter activation, alarm set-up and response factors customisation available
Compatible with monitoring routes and LDAR database integration
Accessories: Standard/enhanced probes, carrying case, hydrogen refill unit
