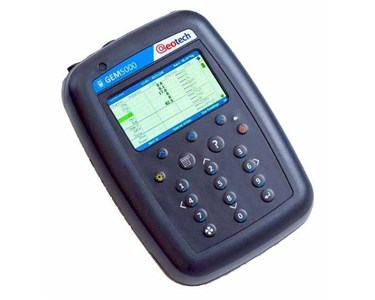

The GEM5000 is a portable landfill gas extraction monitor developed to precisely measure and manage landfill gas concentrations, ensuring optimal methane extraction and operational efficiency.

Highly accurate landfill gas monitoring and flow calculation in a portable, certified instrument.

Features

Certified to ATEX, IECEx, CSA, MCERTS and ISO17025 (UKAS calibration)
Measures percentages of methane (CH₄), carbon dioxide (CO₂), and oxygen (O₂)
Optional measurement of CO (hydrogen compensated), H₂S, NH₃, and H₂ with internal sensor
Simultaneous static and differential pressure recording
Custom user settings and an easy gas reading function
Calculates gas flow (m³/h) and calorific value (kW), with external hardware and software
Data logging and profiling capability for up to 6 gases
Modular and upgradeable design
Choice of additional gases and external GPS/field navigator
3 year warranty with robust, reliable construction
Easy-to-read high resolution 4.3” colour TFT display
Wireless Bluetooth, USB connectivity and memory for 2,000 IDs and 4,000 readings

Applications

Landfill gas field optimisation
Landfill gas energy calculation
Flare and engine output estimation

Benefits

Helps balancing of landfill gas fields for maximum methane output
Allows real-time adjustments for operational optimisation
No need for self-certification of external anemometer
Maximises revenue from methane extraction and power generation
Simple to use and read on site

Technical Specifications

Battery Type	Rechargeable nickel metal hydride (not user replaceable)
Battery Life/Charge Time	Up to 8 hours typical use; approx. 4 hours to full charge
Gas Measurement Ranges	CH₄: 0–100% (0–70%: ±0.5%, 70–100%: ±1.5%) CO₂: 0–100% (0–60%: ±0.5%, 60–100%: ±1.5%) O₂: 0–25% (±1.0%) Optional gases: H₂S up to 10,000ppm, CO up to 2,000ppm, NH₃, H₂
Response Times	CH₄, CO₂: =10 seconds O₂: =20 seconds CO, H₂S: =30 seconds NH₃, H₂: =90 seconds
Pump Flow Rate	550 mL/min, automatic shutdown on low flow
Physical Dimensions/Weight	220mm (L) x 155mm (W) x 60mm (D); 1.6kg
Operating Conditions	-10°C to +50°C; relative humidity 0–95% (non-condensing); case seal IP65
Data/Communication	2,000 IDs, 4,000 readings, wireless Bluetooth, USB port
Display	4.3” full colour TFT, alpha-numeric keypad
Certifications	ATEX, IECEx, CSA, MCERTS, ISO17025 (UKAS)

Options Available

H₂ compensated CO sensor
Measurement of additional gases including H₂S up to 10,000ppm
GPS/field navigator
Gas Analyser Manager software for data download
External gas flow devices: anemometer (ATEX) or Pitot tubes

To contact Thermo Fisher Scientific Australia Pty Ltd about GEM5000 Landfill Gas Extraction Monitor use Get a quote.

Features

Certified to ATEX, IECEx, CSA, MCERTS and ISO17025 (UKAS calibration)
Measures percentages of methane (CH₄), carbon dioxide (CO₂), and oxygen (O₂)
Optional measurement of CO (hydrogen compensated), H₂S, NH₃, and H₂ with internal sensor
Simultaneous static and differential pressure recording
Custom user settings and an easy gas reading function
Calculates gas flow (m³/h) and calorific value (kW), with external hardware and software
Data logging and profiling capability for up to 6 gases
Modular and upgradeable design
Choice of additional gases and external GPS/field navigator
3 year warranty with robust, reliable construction
Easy-to-read high resolution 4.3” colour TFT display
Wireless Bluetooth, USB connectivity and memory for 2,000 IDs and 4,000 readings

Applications

Landfill gas field optimisation
Landfill gas energy calculation
Flare and engine output estimation

Benefits

Helps balancing of landfill gas fields for maximum methane output
Allows real-time adjustments for operational optimisation
No need for self-certification of external anemometer
Maximises revenue from methane extraction and power generation
Simple to use and read on site

Technical Specifications

Battery Type	Rechargeable nickel metal hydride (not user replaceable)
Battery Life/Charge Time	Up to 8 hours typical use; approx. 4 hours to full charge
Gas Measurement Ranges	CH₄: 0–100% (0–70%: ±0.5%, 70–100%: ±1.5%) CO₂: 0–100% (0–60%: ±0.5%, 60–100%: ±1.5%) O₂: 0–25% (±1.0%) Optional gases: H₂S up to 10,000ppm, CO up to 2,000ppm, NH₃, H₂
Response Times	CH₄, CO₂: =10 seconds O₂: =20 seconds CO, H₂S: =30 seconds NH₃, H₂: =90 seconds
Pump Flow Rate	550 mL/min, automatic shutdown on low flow
Physical Dimensions/Weight	220mm (L) x 155mm (W) x 60mm (D); 1.6kg
Operating Conditions	-10°C to +50°C; relative humidity 0–95% (non-condensing); case seal IP65
Data/Communication	2,000 IDs, 4,000 readings, wireless Bluetooth, USB port
Display	4.3” full colour TFT, alpha-numeric keypad
Certifications	ATEX, IECEx, CSA, MCERTS, ISO17025 (UKAS)

Options Available

H₂ compensated CO sensor
Measurement of additional gases including H₂S up to 10,000ppm
GPS/field navigator
Gas Analyser Manager software for data download
External gas flow devices: anemometer (ATEX) or Pitot tubes
