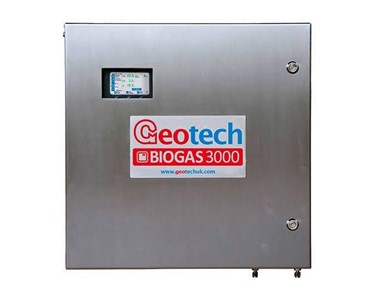

The BIOGAS3000 is a fixed biogas and landfill gas analyser designed for continuous gas monitoring in anaerobic digestion and landfill applications.

Robust, modular analyser for continuous biogas monitoring with zero operational downtime.

Features

Standard measurements for CH₄, CO₂ & O₂
Optional measurements: H₂S, H₂, CO (up to two additional gases)
Modular design allowing easy maintenance and hot-swap modules
User calibration to ensure accuracy in extreme temperatures
ATEX and IECEx certified for use in potentially explosive atmospheres (zone 2)
ISO / IEC 17025 calibration for optimal accuracy
Continuous monitoring with up to 4 configurable sample points
IP65 rated weatherproof stainless steel enclosure
Alarms for gas levels, faults and liquid level monitoring
6 x 4-20mA analogue outputs, Modbus RTU communication, optional Profibus/Profinet
Ultra-clear, informative full colour display
Operating temperature: 0°C to +50°C without heater, -20°C to +50°C with heater
Extended warranty & service pack options

Sectors & Applications

Biogas and landfill gas operations
Agricultural waste management
Biogas upgrading and flaring
Food & farm waste AD, sewage/wastewater treatment AD

Benefits

Customisable configuration to site requirements
Zero downtime due to modular, hot-swap servicing
Reliability and longevity; protected from damaging gases
Operational in hazardous/explosive environments
Minimises through-life costs, easy to operate and install
Multi-lingual interface

Technical Specifications

Sampling Points	1–4
Gases Monitored	Standard: CH₄, CO₂, O₂ • Optional: H₂S, H₂, CO (5 total max)
Measurement Intervals	User definable; continuous option available
Operating Temperature	0°C to +50°C (standard); -20°C with heater option
Mains Supply	110–230 VAC, 50/60Hz
Max Power Consumption	155W
Gas Measuring Principle	Dual wavelength IR (CH₄, CO₂), Electrochemical (O₂, H₂S, H₂, CO)
Ranges	CH₄: 0–100% (±0.5% =70%) CO₂: 0–100% (±0.5% =60%) O₂: 0–25% (±1.0%) H₂S (various): 0–10,000 ppm (±1.5–5% FS) CO/H₂: 0–1,000 ppm (±2–3% FS)
Response Time	CH₄: =10 s, CO₂: =10 s, O₂: =20 s H₂S: =30-40 s CO: =30 s, H₂: <90 s
Cell Lifetime	O₂: 3 years, others: 2 years (in air)
Pump Flow	Typical 300ml/min, flow-fail below 75ml/min
Communications	6 x 4-20mA outputs, Modbus RTU, optional Profibus/Profinet
Alarm Outputs	1 x fault relay, 7 x configurable alarm relays
IP Rating	IP65
Operating Pressure	-350 mbar to +350 mbar
Humidity	0–95% non-condensing
Dimensions	650mm x 600mm x 210mm (stainless steel wall-mount enclosure)
Weight	36.5 kg
Display	4.3” full colour TFT, alpha-numeric tactile keypad
Moisture Removal	User replaceable microfibre filter, 2.0µm PTFE water traps, optional auto moisture drain
Certifications	ISO17025, ATEX / IECEx zone 2, BS EN standards

Heater option: ATEX certified 100W heater for extended operating range
Continuous operation includes daily air purge

To contact Thermo Fisher Scientific Australia Pty Ltd about BIOGAS 3000 Online Gas Analyser use Get a quote.

Features

Standard measurements for CH₄, CO₂ & O₂
Optional measurements: H₂S, H₂, CO (up to two additional gases)
Modular design allowing easy maintenance and hot-swap modules
User calibration to ensure accuracy in extreme temperatures
ATEX and IECEx certified for use in potentially explosive atmospheres (zone 2)
ISO / IEC 17025 calibration for optimal accuracy
Continuous monitoring with up to 4 configurable sample points
IP65 rated weatherproof stainless steel enclosure
Alarms for gas levels, faults and liquid level monitoring
6 x 4-20mA analogue outputs, Modbus RTU communication, optional Profibus/Profinet
Ultra-clear, informative full colour display
Operating temperature: 0°C to +50°C without heater, -20°C to +50°C with heater
Extended warranty & service pack options

Sectors & Applications

Biogas and landfill gas operations
Agricultural waste management
Biogas upgrading and flaring
Food & farm waste AD, sewage/wastewater treatment AD

Benefits

Customisable configuration to site requirements
Zero downtime due to modular, hot-swap servicing
Reliability and longevity; protected from damaging gases
Operational in hazardous/explosive environments
Minimises through-life costs, easy to operate and install
Multi-lingual interface

Technical Specifications

Sampling Points	1–4
Gases Monitored	Standard: CH₄, CO₂, O₂ • Optional: H₂S, H₂, CO (5 total max)
Measurement Intervals	User definable; continuous option available
Operating Temperature	0°C to +50°C (standard); -20°C with heater option
Mains Supply	110–230 VAC, 50/60Hz
Max Power Consumption	155W
Gas Measuring Principle	Dual wavelength IR (CH₄, CO₂), Electrochemical (O₂, H₂S, H₂, CO)
Ranges	CH₄: 0–100% (±0.5% =70%) CO₂: 0–100% (±0.5% =60%) O₂: 0–25% (±1.0%) H₂S (various): 0–10,000 ppm (±1.5–5% FS) CO/H₂: 0–1,000 ppm (±2–3% FS)
Response Time	CH₄: =10 s, CO₂: =10 s, O₂: =20 s H₂S: =30-40 s CO: =30 s, H₂: <90 s
Cell Lifetime	O₂: 3 years, others: 2 years (in air)
Pump Flow	Typical 300ml/min, flow-fail below 75ml/min
Communications	6 x 4-20mA outputs, Modbus RTU, optional Profibus/Profinet
Alarm Outputs	1 x fault relay, 7 x configurable alarm relays
IP Rating	IP65
Operating Pressure	-350 mbar to +350 mbar
Humidity	0–95% non-condensing
Dimensions	650mm x 600mm x 210mm (stainless steel wall-mount enclosure)
Weight	36.5 kg
Display	4.3” full colour TFT, alpha-numeric tactile keypad
Moisture Removal	User replaceable microfibre filter, 2.0µm PTFE water traps, optional auto moisture drain
Certifications	ISO17025, ATEX / IECEx zone 2, BS EN standards

Heater option: ATEX certified 100W heater for extended operating range
Continuous operation includes daily air purge
