Thermo Scientific Niton™ DXL Precious ...

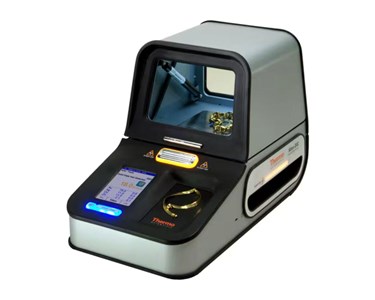

Thermo Scientific - Niton™ DXL Precious Metal Analyzer

Supplier: Thermo Fisher Scientific Australia Pty Ltd

Niton™ DXL Precious Metal Analyzer

The DXL-Edelmetallanalysator is a non-destructive precious metal analyser designed for fast and reliable identification of gold and other valuable metals in jewellery, coins, and related products.

Rapid, non-destructive gold and precious metal analysis with instant results.

Designed for swift, simple, and non-destructive testing of precious metal purity, this analyser offers rapid, on-the-spot assessment of gold content and differentiation between solid gold and gold plating. Utilising advanced Si-PIN semiconductor detector technology and the AuDIT™ gold-plating detection algorithm, it is tailored for retail, pawnshops, and similar applications.

Key Features

Analysis of 21 elements, including all precious metals.
Immediate, destruction-free results on a bright touchscreen colour display.
No need for harsh chemicals or acids.
Simpler and faster than traditional acid or fire assay methods with comparable accuracy.
Compact, ergonomic design optimised for countertop retail use.
Automatic gold measurement—no manual recalibration required.
Detects other trace alloying and hazardous elements affecting value/refining.
Internal CCD camera for easy sample positioning; optional 3 mm small-spot focus for tiny components.
Password protection for user security.
Data transfer via USB and included software.

Specifications

Analysis Elements	21 (including all precious metals)
Detector Type	High-performance silicon PIN semiconductor
Input/Display	Touchscreen
Internal Data Storage	64 MB system / 128 MB user memory, >10,000 results with spectra
Data Transfer	USB
Optional Accessories	3 mm small-spot focus, extra battery, external charger, lockable carrying case
Dimensions (L x W x H)	396 mm x 206 mm x 265 mm
Chamber Inner (L x W x H)	172 mm x 184 mm x 133 mm
Weight	7.7 kg
Power	80 µA, 45 kV
Certification/Compliance	CE, RoHS
System Electronics	400 MHz ARM 11 CPU, 300 MHz DSP, 80 MHz ASICs, 4096-channel MCA

Standard Accessories

Battery pack with four 7.2 V Li-ion cells (rechargeable indoors/external power)
110/220 V AC adapter
USB-to-PC cable
Niton Data Transfer (NDT™) PC software
8 mm measurement field
Internal CCD camera
Self-adhesive stabiliser pads
Puncture-resistant x-ray window replacements

Applications

Non-destructive analysis of precious metal purity and chemistry
Suitable for testing jewellery, coins, and other valuable products

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Niton™ DXL Precious Metal Analyzer use Get a quote.

Key Features

Analysis of 21 elements, including all precious metals.
Immediate, destruction-free results on a bright touchscreen colour display.
No need for harsh chemicals or acids.
Simpler and faster than traditional acid or fire assay methods with comparable accuracy.
Compact, ergonomic design optimised for countertop retail use.
Automatic gold measurement—no manual recalibration required.
Detects other trace alloying and hazardous elements affecting value/refining.
Internal CCD camera for easy sample positioning; optional 3 mm small-spot focus for tiny components.
Password protection for user security.
Data transfer via USB and included software.

Specifications

Analysis Elements	21 (including all precious metals)
Detector Type	High-performance silicon PIN semiconductor
Input/Display	Touchscreen
Internal Data Storage	64 MB system / 128 MB user memory, >10,000 results with spectra
Data Transfer	USB
Optional Accessories	3 mm small-spot focus, extra battery, external charger, lockable carrying case
Dimensions (L x W x H)	396 mm x 206 mm x 265 mm
Chamber Inner (L x W x H)	172 mm x 184 mm x 133 mm
Weight	7.7 kg
Power	80 µA, 45 kV
Certification/Compliance	CE, RoHS
System Electronics	400 MHz ARM 11 CPU, 300 MHz DSP, 80 MHz ASICs, 4096-channel MCA

Standard Accessories

Battery pack with four 7.2 V Li-ion cells (rechargeable indoors/external power)
110/220 V AC adapter
USB-to-PC cable
Niton Data Transfer (NDT™) PC software
8 mm measurement field
Internal CCD camera
Self-adhesive stabiliser pads
Puncture-resistant x-ray window replacements

Applications

Non-destructive analysis of precious metal purity and chemistry
Suitable for testing jewellery, coins, and other valuable products

Read less...

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Niton™ DXL Precious Metal Analyzer use Get a quote.
