CyberVisuell Panel PC HMI Touch Screen15.6" ...

CyberVisuell - Panel PC HMI Touch Screen15.6" Intel 11th Gen Core i5 PPC-DS156H-T2-CT Price Guide: $3,301

Supplier: ESIS

Panel PC HMI Touch Screen15.6" Intel 11th Gen Core i5 PPC-DS156H-T2-CT

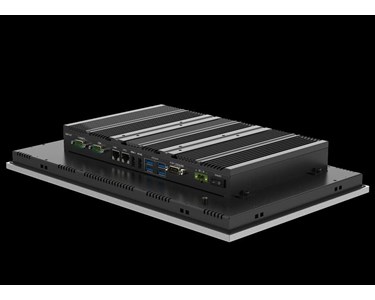

15.6″ Panel PC with 11th-gen. Core i5-1135G7 processor. Fanless design, PCap Touch, I/O includes 2GLAN, 6USB3.0, 2COM(DB9), 2HDMI, 1*VGA, Line-out. Compatible with Windows 11, features front IP65 protection, All-Metal construction,

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

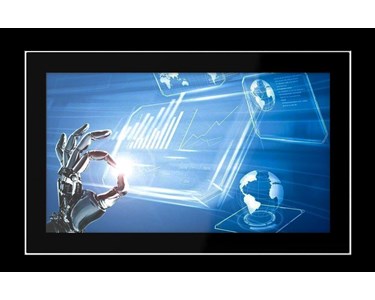

15.6” TFT LCD display, LED Backlit, Full HD 1920 * 1080;
Intel 11th gen. Core i5-1135G7 processor;
1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide DC 9~36V input range;
IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel 11th Gen. Core i5-1135G7
TDP	Default 15W (BIOS fixed)
Memory	SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage	1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic	Intel Iris Xe Graphics
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio	On-board Realtek ACL 897 audio controller
Expansion	1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog	0~256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu

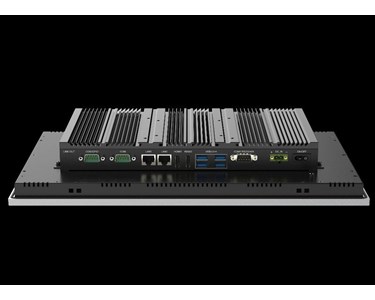

I/O interface
COM	2RS232 (Optional 1 RS485)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Mic-in/Line-out (2 in 1, 4.0mm jack)
USB	6x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	15.6” TFT LCD
Resolution	1920 * 1080 (FHD)
Brightness	450 nits
Backlit & MTBF	LED backlit & 50 000hours
Display area	344.23 * 193.54
View angle	85/85/85/85
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment

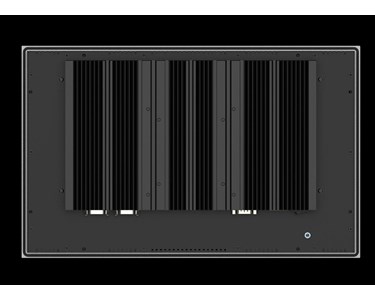

Mount method	Panel mount, VESA 75/100

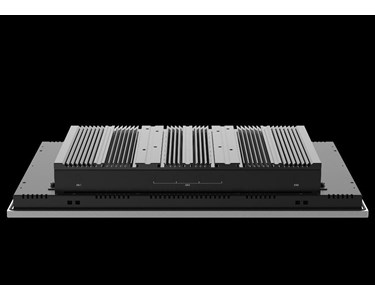

Cooling system	Large area finned heat sink
Overall dimension	395.6 * 247.9 * 57.5 (mm)
Cut-out dimension	385 * 237 (mm)
Net weight	4.3 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	-20~+70?
Storage temp.	-30~+80?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 40W
EMC	CE/FCC Class A

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel 11th Gen. Core i5-1135G7
TDP	Default 15W (BIOS fixed)
Memory	SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage	1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic	Intel Iris Xe Graphics
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio	On-board Realtek ACL 897 audio controller
Expansion	1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog	0~256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu
I/O interface
COM	2RS232 (Optional 1 RS485)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Mic-in/Line-out (2 in 1, 4.0mm jack)
USB	6x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	15.6” TFT LCD
Resolution	1920 * 1080 (FHD)
Brightness	450 nits
Backlit & MTBF	LED backlit & 50 000hours
Display area	344.23 * 193.54
View angle	85/85/85/85
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method	Panel mount, VESA 75/100
Cooling system	Large area finned heat sink
Overall dimension	395.6 * 247.9 * 57.5 (mm)
Cut-out dimension	385 * 237 (mm)
Net weight	4.3 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	-20~+70?
Storage temp.	-30~+80?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 40W
EMC	CE/FCC Class A

Read less...
