CyberVisuell Industrial Fan-less Box PC ...

CyberVisuell - Industrial Fan-less Box PC Intel Whiskey Lake Core i3 TBOX-12815 Price Guide: $2,153

Supplier: ESIS

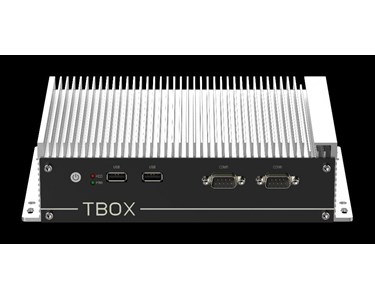

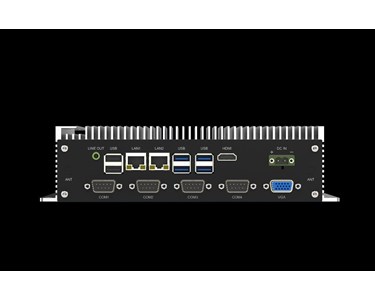

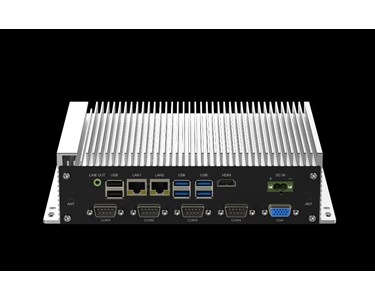

Industrial Fan-less Box PC Intel Whiskey Lake Core i3 TBOX-12815

High performance 8th Gen Core CPU, Rich array of I/O connections, Dual HDMI display outputs, wide temperature operation to 60°C, Win 11 / Win 10 / Linux support.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged & compact, fanless designed box structure;
On-board Intel Whiskey Lake 8th-gen. Core i3-8145U Dual-core processor;
Single DDR4 memory, up to 16GB, 1* M.2 and 1* 2.5” SATA storage;
DC 12V input, optional wide voltage DC 9~36V input;
2 GLAN, Dual wireless expansion 4G/5G, WIFI/BT support;
6 USB (4 USB3.0), 6 COM (optional GPIO), 2 HDMI;
Industrial -20 ~ + 70? operating range, optional -40~+80 ?.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Whiskey Lake 8th. Gen Core i3–8145U
CPU Ghz	Dual–core 2.1Ghz, burst to 3.9Ghz, TDP 15W
TPM	Intel PTT TPM2.0
Memory	SO–DIMM, DDR4–1866/2133/2400 MT/s, Max. up to 16GB
Storage	1M.2 NGFF Key–M/B slot (PCIe x4, 2242/2280), 1 2.5” SATA
Graphic	Intel UHD Graphics 620
Network	2* Intel I211 GBE LAN chip, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 3042/3052)
Audio	On–board Realtek ACL 662 Audio controller
Expansion	1* M.2 Key–B slot, 1* M.2 Key–E slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS485 (Optional RS232), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Mic–in/Line–out
USB	4* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 60 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 25W
EMC	CE/FCC Class A

Features:

Rugged & compact, fanless designed box structure;
On-board Intel Whiskey Lake 8th-gen. Core i3-8145U Dual-core processor;
Single DDR4 memory, up to 16GB, 1* M.2 and 1* 2.5” SATA storage;
DC 12V input, optional wide voltage DC 9~36V input;
2 GLAN, Dual wireless expansion 4G/5G, WIFI/BT support;
6 USB (4 USB3.0), 6 COM (optional GPIO), 2 HDMI;
Industrial -20 ~ + 70? operating range, optional -40~+80 ?.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Whiskey Lake 8th. Gen Core i3–8145U
CPU Ghz	Dual–core 2.1Ghz, burst to 3.9Ghz, TDP 15W
TPM	Intel PTT TPM2.0
Memory	SO–DIMM, DDR4–1866/2133/2400 MT/s, Max. up to 16GB
Storage	1M.2 NGFF Key–M/B slot (PCIe x4, 2242/2280), 1 2.5” SATA
Graphic	Intel UHD Graphics 620
Network	2* Intel I211 GBE LAN chip, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 3042/3052)
Audio	On–board Realtek ACL 662 Audio controller
Expansion	1* M.2 Key–B slot, 1* M.2 Key–E slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS485 (Optional RS232), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Mic–in/Line–out
USB	4* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 60 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 25W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell Industrial Fan-less Box PC Intel Whiskey Lake Core i3 TBOX-12815 use Get a quote.

TBOX-12815 _ v1.0 Datasheet(0.71MB)
