CyberVisuell - 11th Gen. Core i5 Rugged Industrial Box PC TBOX-12T25 Price Guide: $2,487

Supplier: ESIS

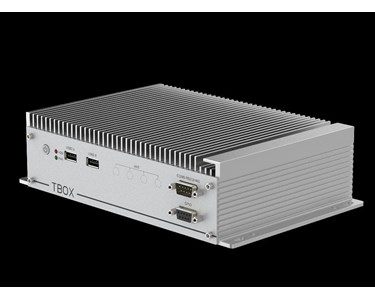

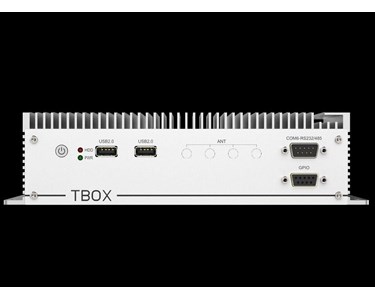

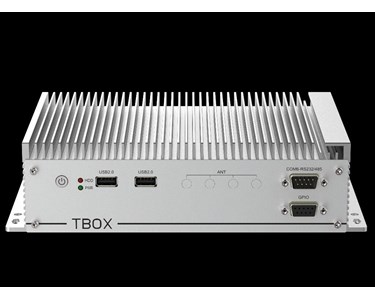

11th Gen. Core i5 Rugged Industrial Box PC TBOX-12T25

High performance 11th Gen Core i5 CPU, Rich array of I/O connections, Dual HDMI display outputs, wide temp operation to 70C, Win 11 / Win 10 / Linux support.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged & compact, fanless designed box structure;
On-board Intel Tiger Lake UP3 Core i5-1135G7 Quad-core processor;
1* DDR4 memory, single slot, max. up to 32GB,
1* M.2 2280(NGFF) Key-M slot (PCIe x4 NVME) SSD;
DC 12V input, optional wide voltage DC 9~36V input;
2 GLAN, optional 2 wireless expansion 4G/5G, WIFI/BT support;
8 USB (6 USB3.0), 6 COM, GPIO (Optional), 2 HDMI, Audio;
Industrial -20 ~ + 70? operating range, optional -40~+80 ?.

Specifications

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i5-1135G7, Quad core, up to 4.2Ghz
TDP	15W (Fixed configuration)
Memory	SO–DIMM, DDR4–2666/2933/3200 MHz, Single slot, Max. up to 32GB
Storage	1M.2 (NGFF) 2280 Key–M slot (PCIe x4 NVME) SSD, 1 2.5” SATA (optional)
Graphic	Intel Iris Xe Graphics (Up to 80 EUs, 1.3Ghz)
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 Key–B 3042/3052)
Audio	On–board Realtek ACL897 Audio controller
Expansion	1* M.2 (NGFF) Key–E slot, 1* M.2 (NGFF) Key–B slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux

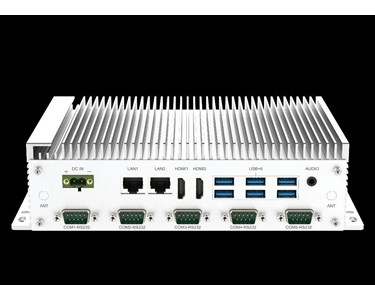

I/O
Serial port	COM1: RS232/RS485; COM2/3/4/5: RS232; COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	1* Mic–in/Line–out (2in1 3.5mm Jack)
USB	6* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9 COM5)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 25W
EMC	CE/FCC Class A

Features:

Rugged & compact, fanless designed box structure;
On-board Intel Tiger Lake UP3 Core i5-1135G7 Quad-core processor;
1* DDR4 memory, single slot, max. up to 32GB,
1* M.2 2280(NGFF) Key-M slot (PCIe x4 NVME) SSD;
DC 12V input, optional wide voltage DC 9~36V input;
2 GLAN, optional 2 wireless expansion 4G/5G, WIFI/BT support;
8 USB (6 USB3.0), 6 COM, GPIO (Optional), 2 HDMI, Audio;
Industrial -20 ~ + 70? operating range, optional -40~+80 ?.

Specifications

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i5-1135G7, Quad core, up to 4.2Ghz
TDP	15W (Fixed configuration)
Memory	SO–DIMM, DDR4–2666/2933/3200 MHz, Single slot, Max. up to 32GB
Storage	1M.2 (NGFF) 2280 Key–M slot (PCIe x4 NVME) SSD, 1 2.5” SATA (optional)
Graphic	Intel Iris Xe Graphics (Up to 80 EUs, 1.3Ghz)
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 Key–B 3042/3052)
Audio	On–board Realtek ACL897 Audio controller
Expansion	1* M.2 (NGFF) Key–E slot, 1* M.2 (NGFF) Key–B slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS232/RS485; COM2/3/4/5: RS232; COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	1* Mic–in/Line–out (2in1 3.5mm Jack)
USB	6* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9 COM5)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 25W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell 11th Gen. Core i5 Rugged Industrial Box PC TBOX-12T25 use Get a quote.

TBOX-12T25 _en v3.0 Datasheet(0.49MB)
