CyberVisuell - Rugged & Compact Intel 11th Gen Core i7 Box PC TBOX-11T35 Price Guide: $2,714

Supplier: ESIS

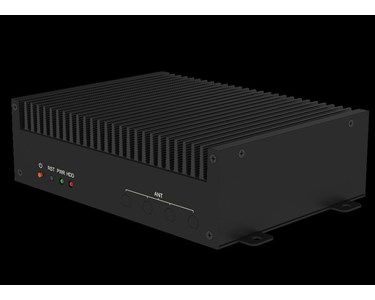

Rugged & Compact Intel 11th Gen Core i7 Box PC TBOX-11T35

Fanless Industrial PC, Compact Size, High Performance 11th Gen Core i7. Great for dusty and hot environments, or integrating into kiosks & digital signage. Available with Win 10/11, optional WiFi/BT or 4G module.

Industrial Reliability, Value for Money

Receive 1-3 days from order

Features of this product

Rugged, Ultra-small, fanless designed box structure;
Intel 11th Gen Tiger Lake Core i3 processors;
DC 12V power input, with locking DC jack;
Industrial -20 ~ + 60°C operating range;
2 GLAN, optional with 4G/5G, and Wi-Fi/BT expansion;
6 USB3.0, 2 HDMI, Audio;
1 M.2 3052 B-key, and 1 M.2 2230 E-key slot.

Specifications of this product

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i7-1165G4 Processor
CPU Series	Intel Tiger Lake 11th Gen Core
TDP	15W (fixed configuration)
Memory	SO-DIMM, DDR4-2666/2933/3200Mt/s, Single slot, max. up to 32GB
Storage	1* M.2 2280 M–Key (PCIe Gen.IV x4, NVMe) SSD
Graphic	Intel UHD Graphics (Up to 48 EUs, 1.25Ghz)
Network	1* Intel I219, 1* Intel I225, optional Wi-Fi/BT (M.2 E-key 2230), 4G/5G (M.2 Key-B 3042/3052)
Audio	On–board Realtek ACL897 Audio controller
Expansion	1* M.2 3052 B–key slot. 1* M.2 2230 E–key slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10, Win11, Linux

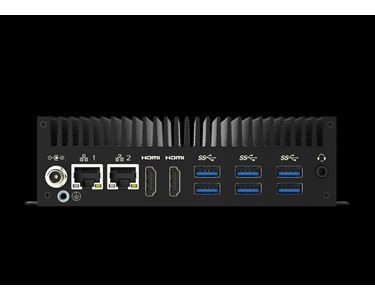

I/O
Serial port	N/A
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	1* Mic-in/Line-out (2 in 1 Jack)
USB	6* USB3.0
Display	2* HDMI
Power Input	DC Jack, lockable 5.5 * 2.5
GPIO	N/A
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black
Mount method	Desktop, wall mount, optional with Din–rail mount
Cooling system	Finned aluminum heatsinks

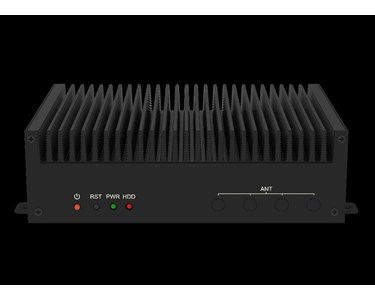

Indicator & Button	Power switch, Power LED, HDD LED
Dimension	168.4 * 110.0 * 45.0 mm
Net weight	About 0.85 KG
Power & Environmental
Operating temp.	–20 ~ + 60 (°C)
Storage temp.	–40 ~ + 70 (°C)
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V
Power consumption	About 25W
EMC	CE/FCC Class A

Applications of this product

Industrial Controllers
Public Kiosks
Security Systems
Parking Systems
Digital Signage
Health Care Mobile Carts

Why choose this product

Rugged and Reliable, Industrial Grade PC
Compact and Fanless Design
Powerful CPU and Versatile Connections
Fully Compatible with Windows and Linux Software

Features of this product

Rugged, Ultra-small, fanless designed box structure;
Intel 11th Gen Tiger Lake Core i3 processors;
DC 12V power input, with locking DC jack;
Industrial -20 ~ + 60°C operating range;
2 GLAN, optional with 4G/5G, and Wi-Fi/BT expansion;
6 USB3.0, 2 HDMI, Audio;
1 M.2 3052 B-key, and 1 M.2 2230 E-key slot.

Specifications of this product

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i7-1165G4 Processor
CPU Series	Intel Tiger Lake 11th Gen Core
TDP	15W (fixed configuration)
Memory	SO-DIMM, DDR4-2666/2933/3200Mt/s, Single slot, max. up to 32GB
Storage	1* M.2 2280 M–Key (PCIe Gen.IV x4, NVMe) SSD
Graphic	Intel UHD Graphics (Up to 48 EUs, 1.25Ghz)
Network	1* Intel I219, 1* Intel I225, optional Wi-Fi/BT (M.2 E-key 2230), 4G/5G (M.2 Key-B 3042/3052)
Audio	On–board Realtek ACL897 Audio controller
Expansion	1* M.2 3052 B–key slot. 1* M.2 2230 E–key slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10, Win11, Linux
I/O
Serial port	N/A
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	1* Mic-in/Line-out (2 in 1 Jack)
USB	6* USB3.0
Display	2* HDMI
Power Input	DC Jack, lockable 5.5 * 2.5
GPIO	N/A
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black
Mount method	Desktop, wall mount, optional with Din–rail mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	168.4 * 110.0 * 45.0 mm
Net weight	About 0.85 KG
Power & Environmental
Operating temp.	–20 ~ + 60 (°C)
Storage temp.	–40 ~ + 70 (°C)
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V
Power consumption	About 25W
EMC	CE/FCC Class A

Applications of this product

Industrial Controllers
Public Kiosks
Security Systems
Parking Systems
Digital Signage
Health Care Mobile Carts

Why choose this product

Rugged and Reliable, Industrial Grade PC
Compact and Fanless Design
Powerful CPU and Versatile Connections
Fully Compatible with Windows and Linux Software

Read less...

To contact ESIS about CyberVisuell Rugged & Compact Intel 11th Gen Core i7 Box PC TBOX-11T35 use Get a quote.
