CyberVisuell Panel PC HMI Touch Screen, ...

CyberVisuell - Panel PC HMI Touch Screen, 15.6″ Celeron PPC-DS156H-E1-CT Price Guide: $2,772

Supplier: ESIS

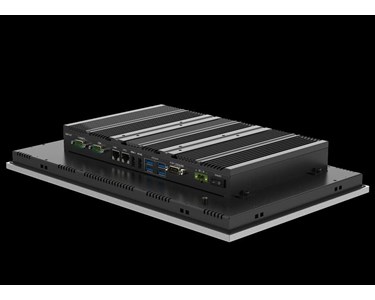

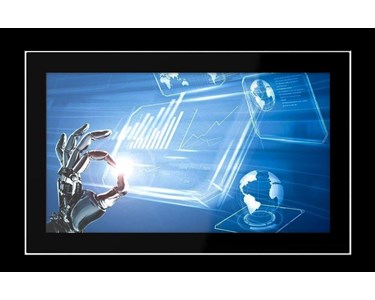

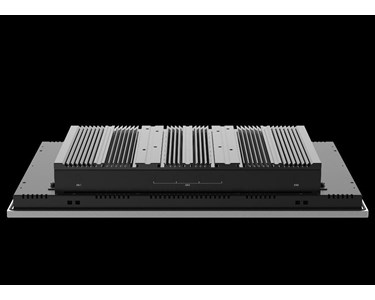

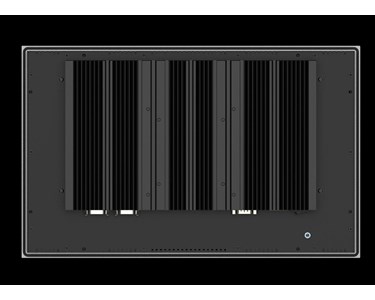

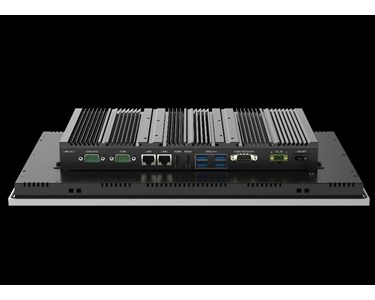

Panel PC HMI Touch Screen, 15.6″ Celeron PPC-DS156H-E1-CT

15.6″ Panel PC with Elkhart Lake Celeron J6412 processor. Slim fanless design with PCap Touch, I/O includes 2GLAN, 3USB3.0, 3USB2.0, 2COM (DB9), 2*HDMI, Audio. Supports Windows 10 / 11, features Front IP65 protection.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Widescreen 15.6" TFT LCD display, LED Backlit, Full HD 1920 *1080;
Intel Elkhart Lake Celeron J6412 processor, Quad-core 2.0Ghz;
1* DDR4 memory, up to 32GB, 1* M.2 NVME and 1* 2.5" SATA storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide voltage DC 9~36V range;
IO: 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Apollo Lake J3455, Quad-core 1.5Ghz, burst to 2.3Ghz
Memory	SO-DIMM, Support DDR3L 1333/1600/1866 MHz, Max. up to 8GB
Storage	1* M.2 (SATA) + 1* 2.5” SATA
Graphic	Intel UHD Graphics 500
Network	2* Intel I211 GBE LAN chip (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio	On-board Realtek ACL 662 audio controller
Expansion	1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog	0~256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu
I/O interface
COM	3RS232 (Default), Optional 1 RS485 or 8*GPIO
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Line-out
USB	4x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	15.6” TFT LCD
Resolution	1920 * 1080 (Full HD)
Brightness	450 nits
Backlit & MTBF	LED backlit & 50 000hours
Display area	344.16 * 193.59
View angle	85/85/85/85
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method	Panel mount, VESA 75/100
Cooling system	Large area finned heat sink
Overall dimension	395.6 * 247.9 * 57.5 (mm)
Cut-out dimension	385 * 237 (mm)
Net weight	4.3 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	-20~+70?
Storage temp.	-30~+80?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 35W
EMC	CE/FCC Class A

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen, 15.6″ Celeron PPC-DS156H-E1-CT use Get a quote.

Features:

Widescreen 15.6" TFT LCD display, LED Backlit, Full HD 1920 *1080;
Intel Elkhart Lake Celeron J6412 processor, Quad-core 2.0Ghz;
1* DDR4 memory, up to 32GB, 1* M.2 NVME and 1* 2.5" SATA storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide voltage DC 9~36V range;
IO: 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Apollo Lake J3455, Quad-core 1.5Ghz, burst to 2.3Ghz
Memory	SO-DIMM, Support DDR3L 1333/1600/1866 MHz, Max. up to 8GB
Storage	1* M.2 (SATA) + 1* 2.5” SATA
Graphic	Intel UHD Graphics 500
Network	2* Intel I211 GBE LAN chip (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio	On-board Realtek ACL 662 audio controller
Expansion	1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog	0~256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu
I/O interface
COM	3RS232 (Default), Optional 1 RS485 or 8*GPIO
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Line-out
USB	4x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	15.6” TFT LCD
Resolution	1920 * 1080 (Full HD)
Brightness	450 nits
Backlit & MTBF	LED backlit & 50 000hours
Display area	344.16 * 193.59
View angle	85/85/85/85
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method	Panel mount, VESA 75/100
Cooling system	Large area finned heat sink
Overall dimension	395.6 * 247.9 * 57.5 (mm)
Cut-out dimension	385 * 237 (mm)
Net weight	4.3 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	-20~+70?
Storage temp.	-30~+80?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 35W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen, 15.6″ Celeron PPC-DS156H-E1-CT use Get a quote.

PPC-DS156-E1-CT_ V1.0 Datasheet(0.50MB)
