CyberVisuell Panel PC HMI Touch Screen ...

CyberVisuell - Panel PC HMI Touch Screen 21.5" 11th-gen Core i3 PPC-DS215-T1-CT Price Guide: $3,309

Supplier: ESIS

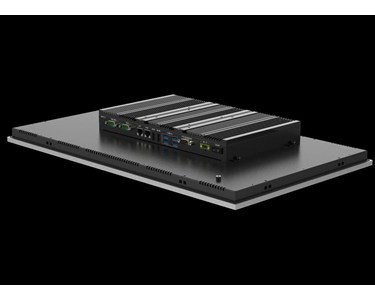

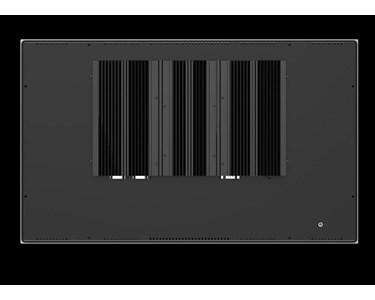

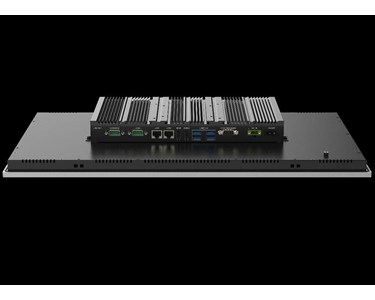

Panel PC HMI Touch Screen 21.5" 11th-gen Core i3 PPC-DS215-T1-CT

21.5″ Panel PC with 11th-gen Core i3-1115G4 processor. Slim, fanless design with PCap Touch, I/O includes 2GLAN, 6USB3.0, 2COM (DB9), 2HDMI. Supports Windows 11, features front IP65 protection.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
11th-gen. Core i3-1115G4 processor;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V, optional wide voltage DC 9~36V power input;
IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, Support Windows 11 OS;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	11th-gen. Core i3-1115G4
TDP	Default 15W (BIOS fixed)
Memory	SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage	1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic	Intel Iris Xe Graphics
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio	On-board Realtek ACL 897 audio controller
Expansion	1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog	0 ~ 256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu
I/O interface
COM	2RS232 (Optional 1 RS485)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Mic-in/Line-out (2 in 1, 4.0mm jack)
USB	6x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	21.5” TFT LCD
Resolution	1920 * 1080 (Full HD)
Brightness	250 nits
Backlit & MTBF	LED backlit & 30 000hours
Display area	476.64 * 268.11
View angle	89/89/89/89
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method	Panel mount, VESA 75/100
Cooling system	Large area finned heat sink
Overall dimension	527 * 318.7 * 57.5 (mm)
Cut-out dimension	516 * 308 (mm)
Net weight	7.0 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	0~+60?
Storage temp.	-20~+70?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 45W
EMC	CE/FCC Class A
