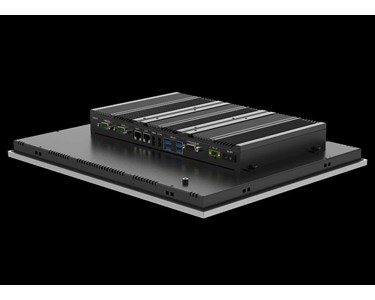

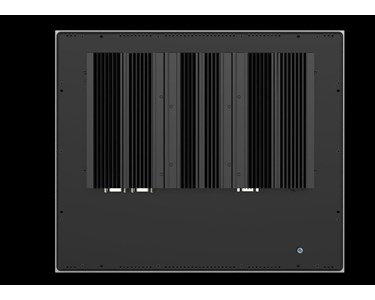

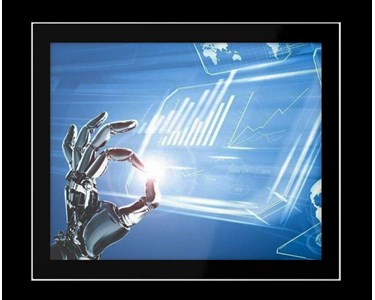

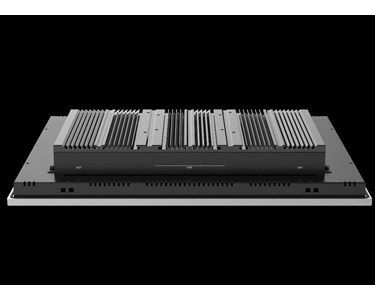

CyberVisuell - Panel PC HMI Touch Screen, 17" Intel 11th Gen Core i3 PPC-DS170-T1-CT Price Guide: $3,048 Get latest price

Read more...

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen, 17" Intel 11th Gen Core i3 PPC-DS170-T1-CT use Get a quote.

Features:

Specifications:

Hardware & System:

• BIOS: SPI AMI EEI BIOS
• CPU: Intel 11th Gen. Tiger Lake UP3 (Celeron 6305E, Core i3-1115G4, Core i5-1135G7, Core i7-1165G7)
• TDP: Default 15W (BIOS fixed)
• Memory: SO-DIMM, DDR4 2666/2933/3200 MHz, Max. 32GB
• Storage: 1 x M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1 x 2.5” SATA SSD
• Graphics: Intel Iris Xe Graphics
• Network: 1 x Intel I219, 1 x Intel I225 LAN chips, Optional Wi-Fi + BT, 3G/4G/5G
• Audio: On-board Realtek ACL 897 audio controller
• Expansion: 1 x M.2 (NGFF) Key-B 3052 slot, 1 x M.2 (NGFF) Key-E 2230 slot
• Watchdog: 0~256 seconds programmable
• OS: Windows 10, Windows 11, Linux, Ubuntu

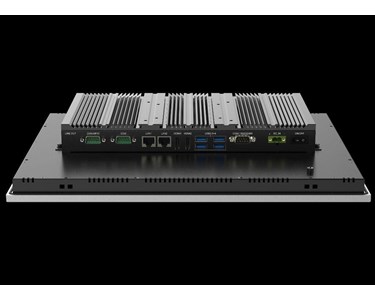

IO Interface:

• COM: 2 x RS232 (Optional 1 x RS485)
• Ethernet: 2 x RJ45, 10/100/1000 Mbps
• Audio: Mic-in/Line-out (2-in-1, 4.0mm jack)
• USB: 6 x USB3.0
• Display: 2 x HDMI
• Power: 1 x 2-pin Phoenix terminal

LCD Display:

• Size/Type: 17.0” TFT LCD
• Resolution: 1280 x 1024 (SXGA)
• Brightness: 250 nits
• Backlight & Lifetime: LED backlit, 30,000 hours
• Display Area: 337.92 x 270.34 mm
• View Angle: 85/85/85/85 degrees
• Touchscreen Type: Projective capacitive touchscreen (wide temp.), 5-wire resistive touchscreen, EETI controller
• Touch Points: Up to 10 points (Pcap), single touch (Resistive)
• Durability: >100,000,000 touches (Pcap), 35 million clicks @ 250g (Resistive)
• Surface Hardness: Glass, Mohs 6H hardness (Pcap), PET film laminated (Resistive)
• Special Treatment: Anti-fingerprint (Pcap)

Structure:

• Material: Magnesium-Aluminum alloy, sandblasted, anodized
• Mount Method: Panel mount, VESA 75/100
• Cooling System: Large area finned heat sink
• Overall Dimension: 386.5 x 323.5 x 57.5 mm
• Cut-Out Dimension: 376 x 313 mm
• Net Weight: 4.7 kg
• IP Protection: Front Panel IP65

Power & Environmental:

• Operating Temp.: -20 ~ +60°C
• Storage Temp.: -30 ~ +80°C
• Relative Humidity: 10 ~ 95% @ 10°C (Non-condensation)
• Vibration: 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
• Shock: 10G/Peak (11 ms)
• Power Input: DC 12V (Optional DC 9 ~ 36V)
• Power Consumption: Around 40W
• EMC: CE/FCC Class A
