CyberVisuell - Panel PC HMI Touch Screen 12.1" Intel 11th Gen Core i5 PPC-DS121-T2-CT Price Guide: $3,007

Supplier: ESIS

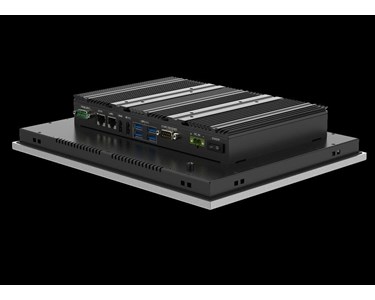

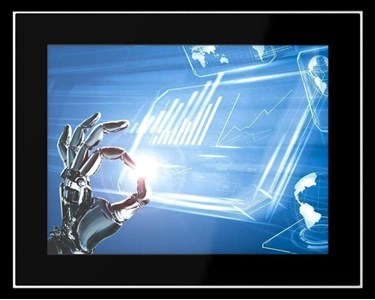

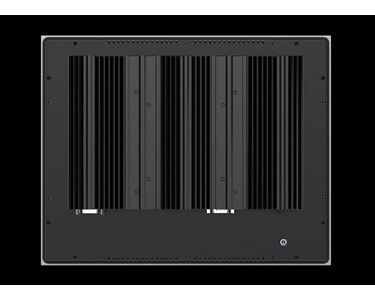

Panel PC HMI Touch Screen 12.1" Intel 11th Gen Core i5 PPC-DS121-T2-CT

12.1″ Panel PC with 11th-gen Core i5-1135G7 processor. Fanless & Slim design with PCap Touch, IO: 2GLAN, 6USB3.0, 1COM (DB9), 2HDMI, Audio. Compatible with Windows 11, features front IP65 protection, All-Metal construction

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

12.1” TFT LCD display, LED Backlit, XGA 1024 *768;
11th-gen. Core i5 processor;
1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide DC 9~36V input range;
IO: 2*GLAN, 6*USB3.0, 1*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	11th-gen. Core i5-1135G7 processor
TDP	Default 12W (BIOS fixed)
Memory	SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage	1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic	Intel Iris Xe Graphics
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio	On-board Realtek ACL 897 audio controller
Expansion	1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog	0~256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu

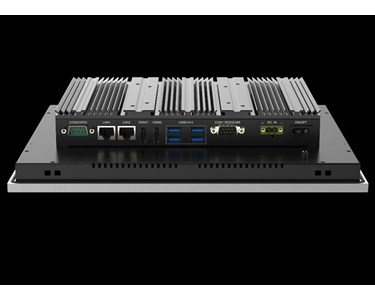

I/O interface
COM	1RS232 (Optional 1 RS485)
Ethernet	2x RJ45, 10/100/1000 Mbps
Audio	Mic-in/Line-out (2 in 1, 4.0mm jack)
USB	6x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	12.1” TFT LCD
Resolution	1024 * 768 (XGA)
Brightness	350 nits
Backlit & MTBF	LED backlit & 50 000hours
Display area	245.76 * 184.32
View angle	80/80/80/80
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method	Panel mount (Optional support VESA 75/100 mount)

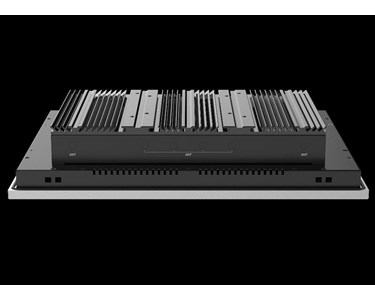

Cooling system	Large area finned heat sink
Overall dimension	306.0 * 242.5 * 57.5 (mm)
Cut-out dimension	295 * 232 (mm)
Net weight	3.5 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	-20~+60?
Storage temp.	-30~+80?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 35W
EMC	CE/FCC Class A

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen 12.1" Intel 11th Gen Core i5 PPC-DS121-T2-CT use Get a quote.

Features:

12.1” TFT LCD display, LED Backlit, XGA 1024 *768;
11th-gen. Core i5 processor;
1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide DC 9~36V input range;
IO: 2*GLAN, 6*USB3.0, 1*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	11th-gen. Core i5-1135G7 processor
TDP	Default 12W (BIOS fixed)
Memory	SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage	1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic	Intel Iris Xe Graphics
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio	On-board Realtek ACL 897 audio controller
Expansion	1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog	0~256 seconds programmable
OS	Win10, Win11, Linux, Ubuntu
I/O interface
COM	1RS232 (Optional 1 RS485)
Ethernet	2x RJ45, 10/100/1000 Mbps
Audio	Mic-in/Line-out (2 in 1, 4.0mm jack)
USB	6x USB3.0
Display	2x HDMI
Power	1x 2 pins, phenix terminal
LCD Display
Size/Type	12.1” TFT LCD
Resolution	1024 * 768 (XGA)
Brightness	350 nits
Backlit & MTBF	LED backlit & 50 000hours
Display area	245.76 * 184.32
View angle	80/80/80/80
Touchscreen
Type	Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points	Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability	>100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness	Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment	Anti-fingerprint (PCap)
Structure
Structure and surface	Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method	Panel mount (Optional support VESA 75/100 mount)
Cooling system	Large area finned heat sink
Overall dimension	306.0 * 242.5 * 57.5 (mm)
Cut-out dimension	295 * 232 (mm)
Net weight	3.5 KG
IP protection	Front Panel IP65
Power & Environmental
Operating temp.	-20~+60?
Storage temp.	-30~+80?
Relative Humidity	10 ~ 95% @ 10C (Non-condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	Around 35W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen 12.1" Intel 11th Gen Core i5 PPC-DS121-T2-CT use Get a quote.

PPC-DS121-T_V3.0 Datasheet(0.41MB)
