CyberVisuell Panel PC HMI Touch Screen, ...

CyberVisuell - Panel PC HMI Touch Screen, 15.0" 11th-gen Core i3 PPC-DS150-T1-CT Price Guide: $2,922

Supplier: ESIS

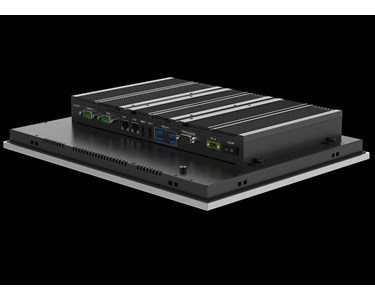

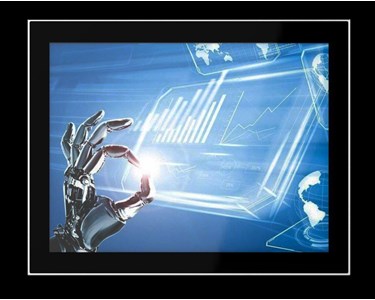

Panel PC HMI Touch Screen, 15.0" 11th-gen Core i3 PPC-DS150-T1-CT

15.0” Industrial Panel PC TFT LCD display , LED Backlit , PCap Touch, XGA 1024 768; Intel 11th Gen. Tiger Lake UP3 Celeron, Core i3/i5/i7 processors; 1 DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage, All-Metal construction, IP65 front

Industrial Grade Reliability

10 Recent Views Receive 1-2 weeks from order

Features:

15.0" TFT LCD display, LED Backlit, XGA 1024 *768;
Intel 11th -gen. Core i3-1115G4 processor;
1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide DC 9~36V input range;
IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, Support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Hardware & System Specifications

BIOS: SPI AMI EFI BIOS
CPU: Intel 11th Gen Tiger Lake UP3 (Celeron 6305E, Core i3-1115G4, Core i5-1135G7, Core i7-1165G7)
TDP: 15W (fixed in BIOS)
Memory: SO-DIMM, DDR4 (2666/2933/3200 MHz), up to 32GB
Storage:
- 1 x M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD
- 1 x 2.5” SATA SSD
Graphics: Intel Iris Xe Graphics
Network:
- 1 x Intel I219
- 1 x Intel I225 LAN chips
- Optional Wi-Fi + BT, 3G/4G/5G
Audio: On-board Realtek ACL 897 audio controller
Expansion:
- 1 x M.2 (NGFF) Key-B 3052 slot
- 1 x M.2 (NGFF) Key-E 2230 slot
Watchdog Timer: 0~256 seconds programmable
Operating System: Windows 10, Windows 11, Linux, Ubuntu

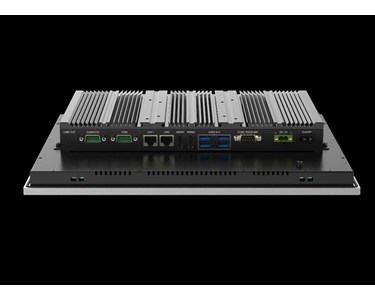

I/O Interface:
- 2 x RS232 (Optional 1 x RS485)
- 2 x RJ45 (10/100/1000 Mbps Ethernet)
- Mic-in/Line-out (2-in-1, 4.0mm jack)
- 6 x USB 3.0
- 2 x HDMI
Power:
- 1 x 2-pin Phoenix terminal
- Power input: DC 12V (Optional DC 9~36V)
- Power consumption: Around 40W
Display:
- Size: 15.0” TFT LCD
- Resolution: 1024 x 768 (XGA)
- Brightness: 350 nits
- Backlight Lifetime: 50,000 hours
- Display Area: 304.128 x 228.096 mm
- Viewing Angle: 80/80/80/80
Touchscreen:
- Type: Projective capacitive / 5-wires resistive touchscreen with EETI controller
- Touch Points: Multi-touch (up to 10 points) / Single touch (Resistive)
- Durability: >100 million touches (PCap) / 35 million clicks (Resistive)
- Surface Hardness: Glass (Mohs 6H hardness) / PET film laminated (Resistive)
- Special Treatment: Anti-fingerprint (PCap)
Structure:
- Material: Magnesium-Aluminum alloy, sand-blasted, anodized treatment
- Mount Method: Panel mount, VESA 75/100

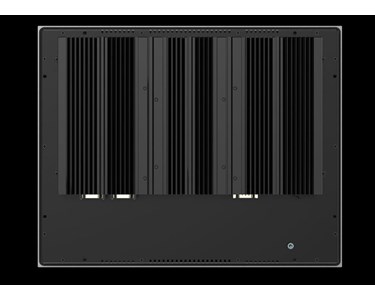

- Cooling System: Large area finned heat sink
Dimensions:
- Overall: 352.2 x 279.3 x 57.5 mm
- Cut-out: 341 x 268 mm
- Net Weight: 3.9 kg
IP Protection: Front Panel IP65
Power & Environmental:
- Operating Temp: -20 to +60°C
- Storage Temp: -30 to +80°C
- Relative Humidity: 10 ~ 95% @ 10°C (Non-condensation)
- Vibration: 50 ~ 500 Hz, 1.5G, 0.15mm peak-to-peak
- Shock: 10G/Peak (11 ms)
EMC: CE/FCC Class A

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen, 15.0" 11th-gen Core i3 PPC-DS150-T1-CT use Get a quote.

Features:

15.0" TFT LCD display, LED Backlit, XGA 1024 *768;
Intel 11th -gen. Core i3-1115G4 processor;
1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
Multi-point projected capacitive touch, or 5-wire resistive touch;
Aluminum-magnesium alloy, anodized treatment, Modular designed;
DC 12V power input, optional wide DC 9~36V input range;
IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
Intel PTT TPM2.0, Support Windows 11;
Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

Hardware & System Specifications

BIOS: SPI AMI EFI BIOS
CPU: Intel 11th Gen Tiger Lake UP3 (Celeron 6305E, Core i3-1115G4, Core i5-1135G7, Core i7-1165G7)
TDP: 15W (fixed in BIOS)
Memory: SO-DIMM, DDR4 (2666/2933/3200 MHz), up to 32GB
Storage:
- 1 x M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD
- 1 x 2.5” SATA SSD
Graphics: Intel Iris Xe Graphics
Network:
- 1 x Intel I219
- 1 x Intel I225 LAN chips
- Optional Wi-Fi + BT, 3G/4G/5G
Audio: On-board Realtek ACL 897 audio controller
Expansion:
- 1 x M.2 (NGFF) Key-B 3052 slot
- 1 x M.2 (NGFF) Key-E 2230 slot
Watchdog Timer: 0~256 seconds programmable
Operating System: Windows 10, Windows 11, Linux, Ubuntu
I/O Interface:
- 2 x RS232 (Optional 1 x RS485)
- 2 x RJ45 (10/100/1000 Mbps Ethernet)
- Mic-in/Line-out (2-in-1, 4.0mm jack)
- 6 x USB 3.0
- 2 x HDMI
Power:
- 1 x 2-pin Phoenix terminal
- Power input: DC 12V (Optional DC 9~36V)
- Power consumption: Around 40W
Display:
- Size: 15.0” TFT LCD
- Resolution: 1024 x 768 (XGA)
- Brightness: 350 nits
- Backlight Lifetime: 50,000 hours
- Display Area: 304.128 x 228.096 mm
- Viewing Angle: 80/80/80/80
Touchscreen:
- Type: Projective capacitive / 5-wires resistive touchscreen with EETI controller
- Touch Points: Multi-touch (up to 10 points) / Single touch (Resistive)
- Durability: >100 million touches (PCap) / 35 million clicks (Resistive)
- Surface Hardness: Glass (Mohs 6H hardness) / PET film laminated (Resistive)
- Special Treatment: Anti-fingerprint (PCap)
Structure:
- Material: Magnesium-Aluminum alloy, sand-blasted, anodized treatment
- Mount Method: Panel mount, VESA 75/100
- Cooling System: Large area finned heat sink
Dimensions:
- Overall: 352.2 x 279.3 x 57.5 mm
- Cut-out: 341 x 268 mm
- Net Weight: 3.9 kg
IP Protection: Front Panel IP65
Power & Environmental:
- Operating Temp: -20 to +60°C
- Storage Temp: -30 to +80°C
- Relative Humidity: 10 ~ 95% @ 10°C (Non-condensation)
- Vibration: 50 ~ 500 Hz, 1.5G, 0.15mm peak-to-peak
- Shock: 10G/Peak (11 ms)
EMC: CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell Panel PC HMI Touch Screen, 15.0" 11th-gen Core i3 PPC-DS150-T1-CT use Get a quote.

PPC-DS150-T_V3.0 Datasheet(0.40MB)
