CyberVisuell - Industrial Fan-less Box PC Intel 12th Gen. Core i5 TBOX-12D28 Price Guide: $2,971

Supplier: ESIS

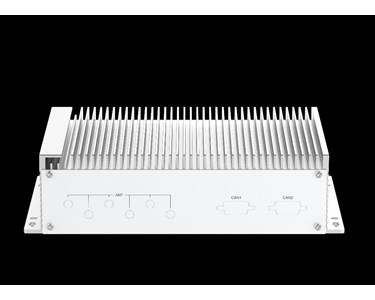

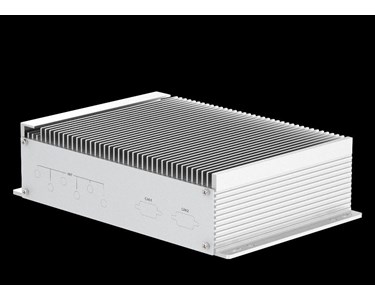

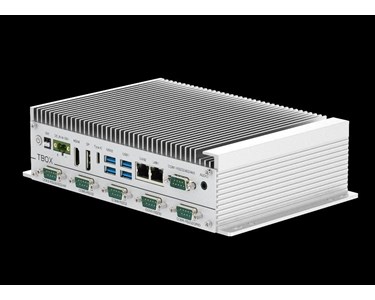

Industrial Fan-less Box PC Intel 12th Gen. Core i5 TBOX-12D28

Powerful Box PC With new Intel 12th Gen. Core i5-1235U; 2 RJ45, 4 USB, 1 USB-C, 6 COM, 1 HDMI, 1 DP, Audio; DC 9~36V Input; 3 Expansion slots

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged & compact, fanless designed box structure;
Powerful Intel Alder Lake 12th Gen. Core i5-1235U processor;
Dual DDR5 memory, max. up to 64GB, 2* M.2 & 1 SATA 3.0 storage;
DC Terminal, wide 9~36V power input, 1 SW remote switch;
2 RJ45, optional with 3G/4G/LTE, 5G, Wi-Fi/BT and Wi-Fi 6;
2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI, 1 DP, Audio;
2 M.2 and 1 Mini-PCIe expansion slots;
Industrial operating -20 ~ +60? temp. range.

Specifications:

System
BIOS		SPI AMI EEI BIOS
CPU		Intel 12^th Gen. Core i5-1235U processor
CPU Ghz		10 cores (2P+8E), 12 threads, 1.20Ghz, TDP 15W
TPM		Intel PTT TMP 2.0
Memory		SO-DIMM, DDR5-4800 Mhz, Dual channels, Max. up to 64GB
Storage		1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* M.2 2280 M-Key slot (SATA) SSD ^[1], 1* SATA3.0 SSD
Graphic		Intel Iris Xe Graphics (Up to 80 EUs, 1.20Ghz)
Network		1* Intel I226 (2.5GbE), 1* Intel I219 (1.0GbE) Network chips, optional support 3G/4G/5G/Wi-Fi/BT, Wi-Fi6 wireless
Audio		On-board Realtek ACL897 Audio controller
Expansion		1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2240 slot, 1* Mini-PCIe slot, 1* Sim card slot
Watchdog		0 ~ 256 seconds programmable
Operating system		Win10 IoT 2021 LTSC; Win10 (21H2), Win11(21H2 or later); Linux Kernel 5.17 or later

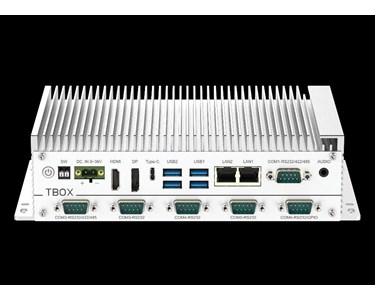

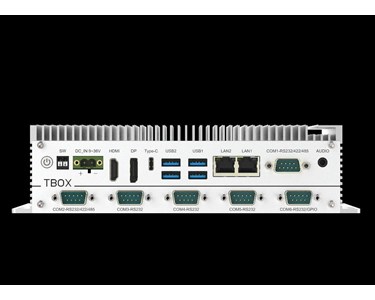

IO interface
Serial port		COM1/2: RS232/RS485/RS422 (BIOS control); COM3/4/5/6: RS232
Ethernet		2* RJ45
Audio		1* Mic-in/Line-out (2 in 1, 3.5mm Jack)
USB		2* USB3.1 type-A (USB3.2 Gen2x1 10Gbps), 2* USB3.0 type-A (USB3.2 Gen1x1 5Gbps), 1* USB-C (USB3.1 & DP1.4)
Display		1* HDMI1.4 (Max. resolution to 4K@30Hz), 1* DP++ (Max. support 8K @30Hz)
Power input		1* 2 pin, phenix terminal
GPIO		8* GPIO (Optional via 1* DB9)
Structure
Box structure and surface		Aluminum alloy, anodizing and anti-scratch treatment
Color		Silver
Mount method		Desktop, wall mount
Cooling system		Finned aluminum heatsinks
Indicator & Button		Power switch, Power LED, HDD LED
Dimension		236.5 * 150.0 * 60.0 (mm)
Net weight		About 1.6 KG
Power & Environmental
Operating temp.		-20 ~ + 60 (?)
Storage temp.		-40 ~ + 80 (?)
Humidity		10 ~ 95% @ 10C (No condensation)
Vibration		50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock		10G/Peak (11 ms)
Power input		DC terminal 9~36V range
Power consumption		About 25W
Certificate		CE/FCC/ROHS

Features:

Rugged & compact, fanless designed box structure;
Powerful Intel Alder Lake 12th Gen. Core i5-1235U processor;
Dual DDR5 memory, max. up to 64GB, 2* M.2 & 1 SATA 3.0 storage;
DC Terminal, wide 9~36V power input, 1 SW remote switch;
2 RJ45, optional with 3G/4G/LTE, 5G, Wi-Fi/BT and Wi-Fi 6;
2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI, 1 DP, Audio;
2 M.2 and 1 Mini-PCIe expansion slots;
Industrial operating -20 ~ +60? temp. range.

Specifications:

System
BIOS		SPI AMI EEI BIOS
CPU		Intel 12^th Gen. Core i5-1235U processor
CPU Ghz		10 cores (2P+8E), 12 threads, 1.20Ghz, TDP 15W
TPM		Intel PTT TMP 2.0
Memory		SO-DIMM, DDR5-4800 Mhz, Dual channels, Max. up to 64GB
Storage		1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* M.2 2280 M-Key slot (SATA) SSD ^[1], 1* SATA3.0 SSD
Graphic		Intel Iris Xe Graphics (Up to 80 EUs, 1.20Ghz)
Network		1* Intel I226 (2.5GbE), 1* Intel I219 (1.0GbE) Network chips, optional support 3G/4G/5G/Wi-Fi/BT, Wi-Fi6 wireless
Audio		On-board Realtek ACL897 Audio controller
Expansion		1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2240 slot, 1* Mini-PCIe slot, 1* Sim card slot
Watchdog		0 ~ 256 seconds programmable
Operating system		Win10 IoT 2021 LTSC; Win10 (21H2), Win11(21H2 or later); Linux Kernel 5.17 or later
IO interface
Serial port		COM1/2: RS232/RS485/RS422 (BIOS control); COM3/4/5/6: RS232
Ethernet		2* RJ45
Audio		1* Mic-in/Line-out (2 in 1, 3.5mm Jack)
USB		2* USB3.1 type-A (USB3.2 Gen2x1 10Gbps), 2* USB3.0 type-A (USB3.2 Gen1x1 5Gbps), 1* USB-C (USB3.1 & DP1.4)
Display		1* HDMI1.4 (Max. resolution to 4K@30Hz), 1* DP++ (Max. support 8K @30Hz)
Power input		1* 2 pin, phenix terminal
GPIO		8* GPIO (Optional via 1* DB9)
Structure
Box structure and surface		Aluminum alloy, anodizing and anti-scratch treatment
Color		Silver
Mount method		Desktop, wall mount
Cooling system		Finned aluminum heatsinks
Indicator & Button		Power switch, Power LED, HDD LED
Dimension		236.5 * 150.0 * 60.0 (mm)
Net weight		About 1.6 KG
Power & Environmental
Operating temp.		-20 ~ + 60 (?)
Storage temp.		-40 ~ + 80 (?)
Humidity		10 ~ 95% @ 10C (No condensation)
Vibration		50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock		10G/Peak (11 ms)
Power input		DC terminal 9~36V range
Power consumption		About 25W
Certificate		CE/FCC/ROHS

Read less...

To contact ESIS about CyberVisuell Industrial Fan-less Box PC Intel 12th Gen. Core i5 TBOX-12D28 use Get a quote.

TBOX-12D28 _V3.0 _Datasheet 241031(0.53MB)
