K-Clad is a highly durable, fire-resistant building cladding designed for interior and exterior use, offering superior protection and sustainability for modern construction needs.

Delivers unmatched fire resistance, holding at 1200°C for up to 90 minutes in lightweight and heavyweight construction.

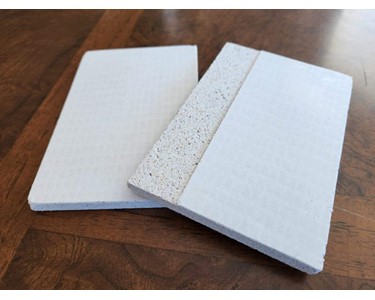

K-Clad is an advanced fire-resistant cladding system suitable for both interior and exterior applications in residential, commercial, and industrial construction. This magnesium oxide board offers a lightweight yet durable alternative to traditional plasterboard, with significant environmental and safety benefits.

Key Features

Tested fire resistance up to 1200°C and achieves ratings up to FRL 90/90/90, with compliance for bushfire zones (BAL FZ).
Available for both lightweight and heavyweight construction formats.
Up to 10 times stronger than plasterboard, while being lightweight and easy to handle.
Waterproof, mould resistant, high impact resistant, termite proof, and resistant to bacteria and flood damage.
Low CO2 emissions (5% compared to typical plasterboard at 95%), with no trees lost in production.
Simple installation with standard timber tools, and single-layer application compared to typical multi-layer plasterboard systems.

Technical Specifications

Board Name	Size (mm)	Thickness	Edge	Weight	Pattern
K-Clad (SE10) Exterior	2400x1200 / 2700x1200 / 3000x1200	10mm	Square (SQ)	28kg / 36kg / 38kg	Flat/Smooth
K-Clad (TE10) Interior	2400x1200 / 2700x1200 / 3000x1200	10mm	Recessed	28kg / 36kg / 38kg	Flat/Smooth

Certifications & Compliance

CSIRO NATA Labs certified. Fire Certificates of BCA compliance.
Compliant with Australian Standards: AS 3959 BAL FZ, AS 1530.1, AS1530.4/2014-2029, AS5367, AS4964, AS5637.
Various NCC 2022 fire and smoke compliance standards.
Resistance to Incipient Spread of Fire and Flashover (RISF).

Application & Advantages

Ideal for boundary fire walls, acoustic firewalls, building façades, and areas requiring bushfire protection.
Single 10mm sheet usage on each side of steel or timber frames for most fire-rated wall assemblies.
50% less labour and transport cost due to lighter weight compared to traditional plasterboard.
Zero interest to termites and inhibits bacteria, making it suitable for wet areas, schools, and hospitals.
Enhanced structural integrity and faster, more cost-effective installation.

To contact FireCrunch Australasia about K-Clad Fire Resistant Cladding use Get a quote.

Key Features

Tested fire resistance up to 1200°C and achieves ratings up to FRL 90/90/90, with compliance for bushfire zones (BAL FZ).
Available for both lightweight and heavyweight construction formats.
Up to 10 times stronger than plasterboard, while being lightweight and easy to handle.
Waterproof, mould resistant, high impact resistant, termite proof, and resistant to bacteria and flood damage.
Low CO2 emissions (5% compared to typical plasterboard at 95%), with no trees lost in production.
Simple installation with standard timber tools, and single-layer application compared to typical multi-layer plasterboard systems.

Technical Specifications

Board Name	Size (mm)	Thickness	Edge	Weight	Pattern
K-Clad (SE10) Exterior	2400x1200 / 2700x1200 / 3000x1200	10mm	Square (SQ)	28kg / 36kg / 38kg	Flat/Smooth
K-Clad (TE10) Interior	2400x1200 / 2700x1200 / 3000x1200	10mm	Recessed	28kg / 36kg / 38kg	Flat/Smooth

Certifications & Compliance

CSIRO NATA Labs certified. Fire Certificates of BCA compliance.
Compliant with Australian Standards: AS 3959 BAL FZ, AS 1530.1, AS1530.4/2014-2029, AS5367, AS4964, AS5637.
Various NCC 2022 fire and smoke compliance standards.
Resistance to Incipient Spread of Fire and Flashover (RISF).

Application & Advantages

Ideal for boundary fire walls, acoustic firewalls, building façades, and areas requiring bushfire protection.
Single 10mm sheet usage on each side of steel or timber frames for most fire-rated wall assemblies.
50% less labour and transport cost due to lighter weight compared to traditional plasterboard.
Zero interest to termites and inhibits bacteria, making it suitable for wet areas, schools, and hospitals.
Enhanced structural integrity and faster, more cost-effective installation.

Read less...

To contact FireCrunch Australasia about K-Clad Fire Resistant Cladding use Get a quote.
