Boundary Fire Walls

Supplier: FireCrunch Australasia

Boundary Fire Walls

This product is a high-performance fire-resistant building board designed for use as boundary fire walls, offering certified protection and durability for residential, commercial, and industrial applications.

Delivers certified, high fire-resistance protection up to 120 minutes with minimal material and installation costs.

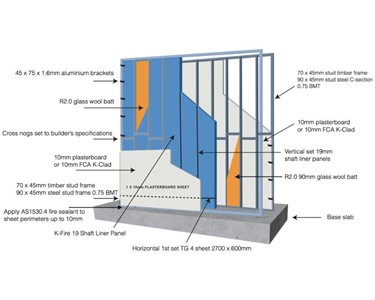

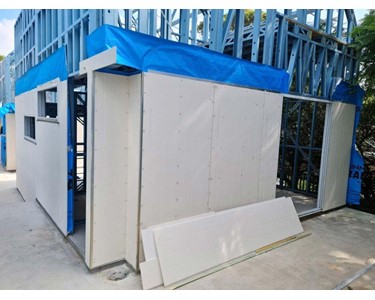

Boundary fire walls are essential when adjacent buildings are constructed close to each other or on property boundaries. This fire-resistant board allows for the construction of passive fire separation walls, featuring advanced protection and compliance with strict Australian standards.

Key Specifications

Fire rated up to 120 minutes (tested)
Meets BAL FZ and up to FRL 90/90/90 (Fire Resistance Level) on steel and timber frames
Timber Frames: FRL 60/60/60, single frame 90 x 45 mm MGP10
Steel Frames: FRL 90/90/90, single frame 92 x 45 mm, 1.00 to 1.15 BMT standard cold roll steel section
Load bearing to 55 kN or 18.3 kN per linear metre (up to 120 minutes on light gauge steel frames)
Only one 10 mm sheet required per side of frame, with glass wool batt in cavity (R 2.5)
Fire tested by NATA Labs, CSIRO, and Resolute Labs (certified to National Construction Code – NCC)
Non-combustible, tested to AS 1530.1; smoke release AS 3837
Single sheet solution: reduces material, labour and installation costs versus traditional plasterboard (which requires three layers per side)

Features

Resistant to high temperatures (up to 1200ºC flame exposure)
Water, mould, mildew, and bacteria resistant – non-asbestos
Termite and insect resistant
Low thermal conductivity (~0.44 W/mK), higher R-values than plasterboard
Environmental benefits – less than 5% CO₂ in manufacture
10 times stronger than plasterboard; impact and load-bearing certified
Lightweight and efficient: simpler handling and installation using regular timber tools
Eco-friendly, with 95% less CO₂ emissions than standard plasterboard

Product Variants

K-Clad - Flat Surface Cladding (Interior / Exterior) 10 mm

Certification and Compliance

Tested to AS 1530.4-2014, AS 3837, AS 4964, AS 717.1
NATA Labs and CSIRO certified, with independent Fire Engineer assessments
Meets National Construction Code (NCC) requirements for fire, acoustic, thermal, and strength criteria

To contact FireCrunch Australasia about Boundary Fire Walls use Get a quote.

Key Specifications

Fire rated up to 120 minutes (tested)
Meets BAL FZ and up to FRL 90/90/90 (Fire Resistance Level) on steel and timber frames
Timber Frames: FRL 60/60/60, single frame 90 x 45 mm MGP10
Steel Frames: FRL 90/90/90, single frame 92 x 45 mm, 1.00 to 1.15 BMT standard cold roll steel section
Load bearing to 55 kN or 18.3 kN per linear metre (up to 120 minutes on light gauge steel frames)
Only one 10 mm sheet required per side of frame, with glass wool batt in cavity (R 2.5)
Fire tested by NATA Labs, CSIRO, and Resolute Labs (certified to National Construction Code – NCC)
Non-combustible, tested to AS 1530.1; smoke release AS 3837
Single sheet solution: reduces material, labour and installation costs versus traditional plasterboard (which requires three layers per side)

Features

Resistant to high temperatures (up to 1200ºC flame exposure)
Water, mould, mildew, and bacteria resistant – non-asbestos
Termite and insect resistant
Low thermal conductivity (~0.44 W/mK), higher R-values than plasterboard
Environmental benefits – less than 5% CO₂ in manufacture
10 times stronger than plasterboard; impact and load-bearing certified
Lightweight and efficient: simpler handling and installation using regular timber tools
Eco-friendly, with 95% less CO₂ emissions than standard plasterboard

Product Variants

K-Clad - Flat Surface Cladding (Interior / Exterior) 10 mm

Certification and Compliance

Tested to AS 1530.4-2014, AS 3837, AS 4964, AS 717.1
NATA Labs and CSIRO certified, with independent Fire Engineer assessments
Meets National Construction Code (NCC) requirements for fire, acoustic, thermal, and strength criteria

Read less...

To contact FireCrunch Australasia about Boundary Fire Walls use Get a quote.

FireCrunch-K-Sound-FireWall-Plus-Acoustic-Single-Frame-Rw50(0.74MB)

FireCrunch-General-Technical-Reference-Installation(0.58MB)

FireCrunch-Bushfire-Manual(1.92MB)

FireCrunch-K-Fire-19-SL4-Shaft-Liner-Summary(3.24MB)
