FireCrunch Fast Fix Shaft Liner Double ...

FireCrunch - Fast Fix Shaft Liner Double Stud Party Wall

Supplier: FireCrunch Australasia

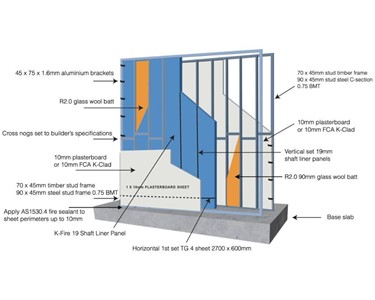

Fast Fix Shaft Liner Double Stud Party Wall

Designed for rapid installation and high-performance fire and acoustic separation, this double stud party wall system is ideal for both new builds and renovations.

Rapid, H-stud-free installation cuts labour and materials without sacrificing fire or acoustic performance.

Key Features

High density 19mm fire panels for shaft liner party wall applications
Delivers Fire Resistance Levels (FRL) of 60 and 90 minutes, both load and non-load bearing
Acoustic performance: Rw 62 / ctr 52 (APS) with registered FE assessment and NATA tests under AS1530.4/2014-2029
Eliminates need for H-studs, J-track or U-Track—uses fast fix pre-drilled aluminium brackets
Fast, straightforward installation—reduces labour and materials compared to alternatives
Utilises 1 x 10mm plasterboard or FCA 10mm K-Clad TE10 on each wall frame side
Enhanced with Glass Wool Cavity Batts (R2.0)
Tested and certified to AS1530.1, AS1530.4/2014-2029, AS5637 RISF, AS3837, AS1530.8.2, AS3959 (Bushfire BAL FZ), AS4964, AS717.1
Environmentally conscious—low CO2 emissions, high carbon capture cladding, non-hazardous, non-asbestos
Compatible for use as shaft liner firewalls, intertenancy, common, semi-detached, duplex & zero lot firewalls

Specifications

Panel Thickness	19mm
Board Size	2700 x 600 mm (TG 4-sided)
Frame Options	Timber (70x45 mm) and Steel (92x45 mm)
Plasterboard/Cladding Each Side	10mm standard plasterboard or 10mm K-Clad TE10
Insulation	R2.0/R2.5 glass wool batts

Certifications & Compliance

AS1530.1, AS1530.4/2014-2029
AS5637 RISF, AS3837 (Smoke & Heat Release), AS1530.8.2, AS3959 (Bushfire BAL FZ)
AS4964 (Non-Asbestos), AS717.1 (Acoustics Rw 62)
NATA Labs CSIRO certified in Australia

Applications

Shaft liner firewalls
Common and intertenancy walls
Semi-detached, duplex, and zero-lot firewalls
Load and non-load bearing fire separation

Environmental Benefits

Low CO₂ emissions in manufacturing
High carbon capture and sequestration
Non-toxic, non-hazardous, and non-asbestos composition
Durable and inert in water, flood-resistant
Minimises use of timber compared to conventional plasterboard

To contact FireCrunch Australasia about FireCrunch Fast Fix Shaft Liner Double Stud Party Wall use Get a quote.

Key Features

High density 19mm fire panels for shaft liner party wall applications
Delivers Fire Resistance Levels (FRL) of 60 and 90 minutes, both load and non-load bearing
Acoustic performance: Rw 62 / ctr 52 (APS) with registered FE assessment and NATA tests under AS1530.4/2014-2029
Eliminates need for H-studs, J-track or U-Track—uses fast fix pre-drilled aluminium brackets
Fast, straightforward installation—reduces labour and materials compared to alternatives
Utilises 1 x 10mm plasterboard or FCA 10mm K-Clad TE10 on each wall frame side
Enhanced with Glass Wool Cavity Batts (R2.0)
Tested and certified to AS1530.1, AS1530.4/2014-2029, AS5637 RISF, AS3837, AS1530.8.2, AS3959 (Bushfire BAL FZ), AS4964, AS717.1
Environmentally conscious—low CO2 emissions, high carbon capture cladding, non-hazardous, non-asbestos
Compatible for use as shaft liner firewalls, intertenancy, common, semi-detached, duplex & zero lot firewalls

Specifications

Panel Thickness	19mm
Board Size	2700 x 600 mm (TG 4-sided)
Frame Options	Timber (70x45 mm) and Steel (92x45 mm)
Plasterboard/Cladding Each Side	10mm standard plasterboard or 10mm K-Clad TE10
Insulation	R2.0/R2.5 glass wool batts

Certifications & Compliance

AS1530.1, AS1530.4/2014-2029
AS5637 RISF, AS3837 (Smoke & Heat Release), AS1530.8.2, AS3959 (Bushfire BAL FZ)
AS4964 (Non-Asbestos), AS717.1 (Acoustics Rw 62)
NATA Labs CSIRO certified in Australia

Applications

Shaft liner firewalls
Common and intertenancy walls
Semi-detached, duplex, and zero-lot firewalls
Load and non-load bearing fire separation

Environmental Benefits

Low CO₂ emissions in manufacturing
High carbon capture and sequestration
Non-toxic, non-hazardous, and non-asbestos composition
Durable and inert in water, flood-resistant
Minimises use of timber compared to conventional plasterboard

Read less...

To contact FireCrunch Australasia about FireCrunch Fast Fix Shaft Liner Double Stud Party Wall use Get a quote.
