Snorkel UL40 Mast Boom Lift

All Products > Material Handling & Lifting > Vertical Mast Lift

Snorkel - UL40 Mast Boom Lift

Supplier: Equipment Sales Australia
Snorkel - UL40 Mast Boom Lift
UL40 Mast Boom Lift
Snorkel - UL40 Mast Boom Lift
UL40 Mast Boom Lift
Snorkel - UL40 Mast Boom Lift
UL40 Mast Boom Lift
Snorkel - UL40 Mast Boom Lift

This new UL40 mast boom lift is designed for safely lifting one operator plus tools to a maximum working height of 14.1 metres, ideal for interior maintenance and facility management.

Description
Safely lifts one person plus tools to 14.1m working height with outstanding stability.
Key Features
  • Patented 'Girder Lock' telescopic mast system for superior platform stability
  • Innovative integrated tilt-back system enables transport through standard doorways
  • Designed for single-person use plus tools, with ground-level entry and push-button controls
  • EZ Loader transport system for easy handling and setup
  • Outrigger interlock indicators and non-marking wheels & casters
  • Integrated battery charger (DC version)

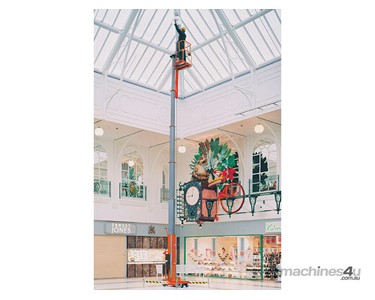

Ideal for interior maintenance, including sports halls, auditoriums, atriums and shopping malls, where safe access to high ceilings is required.

Specifications
Max. Working Height:
14.1 m
Max. Platform Height:
12.1 m
Platform Length:
0.56 m
Platform Width:
0.66 m
Outrigger Footprint:
2.95 x 2.85 m
Overall Width:
0.74 m
Overall Length:
1.32 m
Stowed Height:
2.9 m
Tilt Back Height:
2.0 m
Tilt Back Length:
2.99 m
Platform Capacity (SWL):
136 kg
Max. Wind Speed:
0 m/s
Raise/Lower Time:
60/40 seconds
Wheels:
250 mm x 64 mm rear, 150 mm front casters
Wall Access:
736 mm
Power Source (AC):
120/220 V AC, 50 Hz
Power Source (DC):
1 x 12V 105 AH battery
Gross Weight (AC):
470 kg
Gross Weight (DC):
500 kg
Warranty
  • 2 years parts & labour
  • 5 years structural warranty
