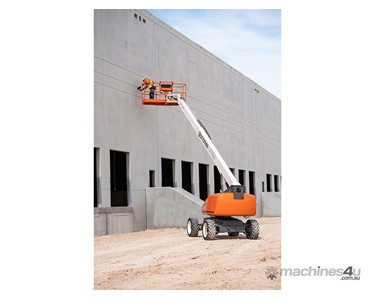

Snorkel Telescopic Boom Lift | 460SJ
Ideal for construction and industrial operations requiring elevated work platforms with high reach and significant stability.
Max. Working Height | 16.0 m |
Max. Platform Height | 14.0 m |
Max. Working Outreach | 12.3 m |
Platform Size | 2.44 m x 0.91 m |
Overall Width | 2.31 m |
Transport Width | 2.08 m |
Transport Length | 6.81 m |
Transport Height | 2.92 m |
Stowed Height | 2.38 m |
Ground Clearance | 320 mm |
Platform Capacity - Unrestricted | 272 kg |
Platform Capacity - Restricted | 454 kg |
Max Drive Height | 14.0 m |
Max Wind Speed | 12.5 m/s |
Max Drive Speed (stowed) | 6.8 km/h |
Max Drive Speed (elevated) | 1.0 km/h |
Jib Length & Arc | 1.67 m, 135° (+70°/-65°) |
Platform Rotation | 150° |
Turret Rotation | 360° continuous |
Tailswing | 0.9 m |
Raise/Lower Time | 64/64 sec |
Gradeability | 50% |
Inside/Outside Turning Radius | 3.0 m / 5.06 m |
Tyres | 355/55 D625 foam filled lug |
Drive System | 4 wheel drive |
Power Source | Kubota 18.6 kW (24.9 hp) diesel – Stage V |
Auxiliary Power Unit | 12V DC |
Weight | 7,829 kg |
To contact Equipment Sales Australia about Snorkel Telescopic Boom Lift | 460SJ use Get a quote.
