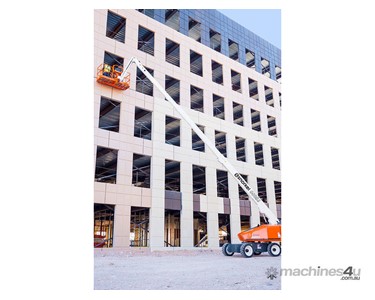

Snorkel Telescopic Boom Lift | 660SJ
Max Working Height | 22.0 m |
Max Platform Height | 20.0 m |
Max Working Outreach | 17.7 m |
Platform Size | 2.44 m x 0.91 m |
Overall Width | 2.46 m |
Transport Length | 8.3 m |
Overall Length | 10.1 m |
Transport Width | 2.24 m |
Transport Height | 2.9 m |
Stowed Height | 2.51 m |
Ground Clearance | 340 mm |
Platform Capacity (Unrestricted) | 272 kg |
Platform Capacity (Restricted) | 454 kg |
Max Drive Height | 20.0 m |
Max Wind Speed | 12.5 m/s |
Max Drive Speed (stowed) | 5.6 km/h |
Max Drive Speed (elevated) | 0.96 km/h |
Jib Length | 1.67 m |
Jib Arc | 135° (+70°/-65°) |
Platform Rotation | 150° |
Turret Rotation | 360° continuous |
Tailswing | 1.2 m |
Raise/Lower Time | 50 / 50 seconds |
Gradeability | 45% |
Inside Turning Radius | 3.06 m |
Outside Turning Radius | 5.21 m |
Tyres | 355/55 D625 foam filled lug |
Drive System | 4 wheel drive |
Power Source | Cummins 65 hp (47.8 kW) turbo diesel, Deutz T4F, Stage V |
Auxiliary Power Unit | 12V DC |
Weight | 12,982 kg |
To contact Equipment Sales Australia about Snorkel Telescopic Boom Lift | 660SJ use Get a quote.
