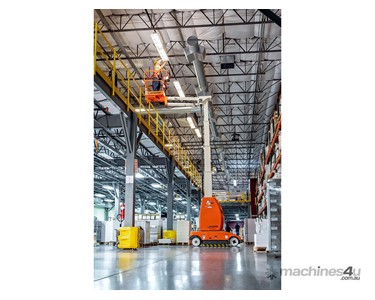

Snorkel MB26J Mast Boom Lift
The MB26J mast boom lift delivers superior up-and-over capability with impressive manoeuvrability, featuring an electric drive and jib boom for working efficiently at height and in tight areas.
Max Working Height | 9.8 m |
Max Platform Height | 7.8 m |
Max Working Outreach | 3.0 m |
Platform Capacity (SWL) | 215 kg |
Platform Size | 0.78 m x 0.73 m |
Dimensions (L x W x H - Stowed) | 2.8 m x 1.0 m x 1.98 m |
Weight | 2,660 kg |
Gradeability | 25% |
Inside Turning Radius | 0.3 m |
Outside Turning Radius | 2.1 m |
Power Source | 4 x 6V x 375 AH batteries |
Jib Length | 1.4 m |
Jib Arc | 130° |
Mast Rotation | 360° (Non-Continuous) |
Tyres | 323 mm Non-marking rubber |
Ideal for applications that demand vertical and horizontal reach, particularly in warehouses, factories, maintenance, installation, and indoor/outdoor construction environments.
