Tallest working height in its class with efficient electric drive system.

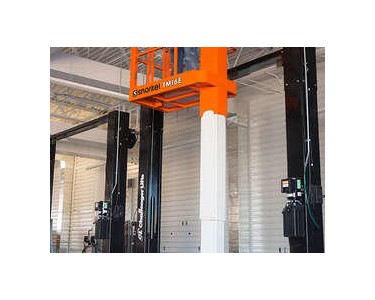

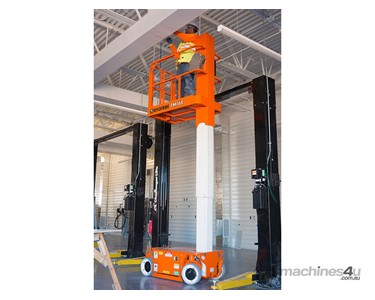

The TM16E is a self-propelled telescopic mast lift that delivers the tallest working height in its class from Snorkel's range. Featuring a robust electric drive system for long duty cycles and smooth, proportional controls for accurate positioning, it is engineered for versatile, effective operation in demanding environments.

Key Features

Roll-out deck extension
Proportional controls
Saloon-door style entry gates
Descent & tilt alarms
Emergency lowering at chassis controls
Non-marking rubber tyres
Crane lift points
Horn
2 persons indoor
Selectable motion alarm
Integrated battery charger 110V 20A
Hour meter & on-board diagnostics display

Specifications

Condition	New
Make	Snorkel
Model	TM16E
Max Working Height	6.87 m
Max Platform Height	4.87 m
Platform Size (Stowed)	0.68 m x 0.99 m
Platform Size (Extended)	0.68 m x 1.5 m
Extension Deck Length	0.51 m
Overall Width	0.76 m
Overall Length	1.37 m
Stowed Height	1.98 m
Ground Clearance	76 mm
Platform Capacity (SWL)	227 kg
Max Drive Height	4.87 m
Max Wind Speed	0 m/s
Max Drive Speed (Stowed)	4.0 km/h
Max Drive Speed (Elevated)	0.6 km/h
Raise/Lower Time	12.5 / 10.5 sec
Gradeability	25%
Max Operating Slope (Side to Side / Front to Back)	1.5° / 1.5°
Inside Turning Radius	0 m
Outside Turning Radius	1.4 m
Tyres	323 mm, Non-marking rubber
Parking Brake	2 wheel, spring applied, electric release
Drive System	Dual DC motors
Controls	Proportional
Power Source	24V 220Ah batteries
Battery Charger	20 amp
Weight	1,105 kg

Warranty

2 year parts & labour
5 year structural warranty

To contact Equipment Sales Australia about Snorkel TM16E Mast Boom Lifts use Get a quote.
