TPV 333mV Integrator and Rogowski Coil Kit ...

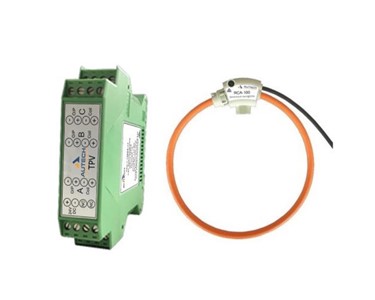

TPV 333mV Integrator and Rogowski Coil Kit

Supplier: Autech Control Group

This integrator and Rogowski coil kit enables accurate measurement and monitoring of high power loads, impulsive currents, and DC ripple, making it ideal for advanced electrical energy analysis.

Accurate, linear measurement across a wide current and frequency range.

?TPV 333mV Integrator and Rogowski Coil Kit?

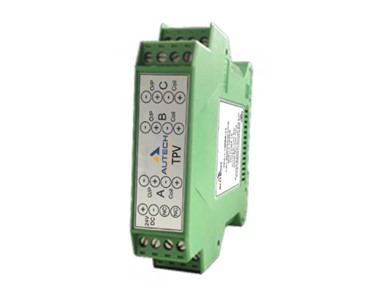

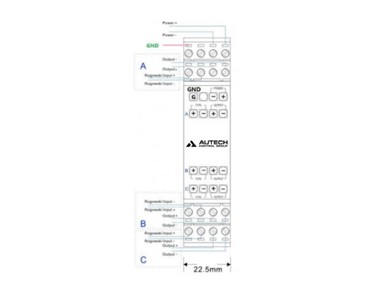

This kit is designed for precise current measurement using Rogowski coils, featuring a three-phase DIN-rail integrator with a 333mV output. It is ideal for use in distribution boards, offering flexible solutions for high power load analysis, impulsive current monitoring, and DC ripple measurement.

Features

Compatible with any model and size of RCA Rogowski coils
Customisable input values upon request
Active electronic circuit ensures negligible offset and excellent linearity
Linear output across a wide frequency range (30Hz – 5kHz)
Enables use with secondary CTs for measurement of integrator output
Easy DIN-rail installation in a compact 1-module enclosure
Low power consumption (8W)
Flexible and comfortable for situations unsuitable for traditional transducers

What Does the Integrator Do?

Amplifies and converts the Rogowski coil's mV-level output to a standard signal suitable for meters
Ensures linear response over varying electrical network frequencies, maintaining the same output level
Essential for equalising and shifting the coil output by 90°, facilitating accurate readings

Applications

High power load analysis
Monitoring of impulsive currents
Measuring DC ripple
Ideal for use where conventional current transducers are not suitable

Specifications

Model	TPV
Output	333mV rms
Rated Ratio Options	100A, 600A, 1000A, 3000A, 6000A
Read Accuracy	0.5% typical at =10A to 110% of rated current @ 25°C
Phase Error	=0.5°
Linearity	±0.2% of reading (10% to 120% of range)
Bandwidth	30Hz to 5kHz
Maximum Burden	0.5O (each phase)
Measurement	For use with secondary CTs to measure integrator output
Power Consumption	8W
Output on 0A (zero drift)	=0.01A
Temperature Drift	200ppm/°C
Weight	20g
Dimensions	114 x 100 x 22.5 mm
Power Supply	24V DC
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 90°C
Relative Humidity	80% max. (non-condensing)
IP Protection Degree	IP20

To contact Autech Control Group about TPV 333mV Integrator and Rogowski Coil Kit use Get a quote.

?TPV 333mV Integrator and Rogowski Coil Kit?

Features

Compatible with any model and size of RCA Rogowski coils
Customisable input values upon request
Active electronic circuit ensures negligible offset and excellent linearity
Linear output across a wide frequency range (30Hz – 5kHz)
Enables use with secondary CTs for measurement of integrator output
Easy DIN-rail installation in a compact 1-module enclosure
Low power consumption (8W)
Flexible and comfortable for situations unsuitable for traditional transducers

What Does the Integrator Do?

Amplifies and converts the Rogowski coil's mV-level output to a standard signal suitable for meters
Ensures linear response over varying electrical network frequencies, maintaining the same output level
Essential for equalising and shifting the coil output by 90°, facilitating accurate readings

Applications

High power load analysis
Monitoring of impulsive currents
Measuring DC ripple
Ideal for use where conventional current transducers are not suitable

Specifications

Model	TPV
Output	333mV rms
Rated Ratio Options	100A, 600A, 1000A, 3000A, 6000A
Read Accuracy	0.5% typical at =10A to 110% of rated current @ 25°C
Phase Error	=0.5°
Linearity	±0.2% of reading (10% to 120% of range)
Bandwidth	30Hz to 5kHz
Maximum Burden	0.5O (each phase)
Measurement	For use with secondary CTs to measure integrator output
Power Consumption	8W
Output on 0A (zero drift)	=0.01A
Temperature Drift	200ppm/°C
Weight	20g
Dimensions	114 x 100 x 22.5 mm
Power Supply	24V DC
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 90°C
Relative Humidity	80% max. (non-condensing)
IP Protection Degree	IP20

Read less...

To contact Autech Control Group about TPV 333mV Integrator and Rogowski Coil Kit use Get a quote.
