Canvas 4 All-in-One PLC

Supplier: Autech Control Group

Canvas 4 All-in-One PLC

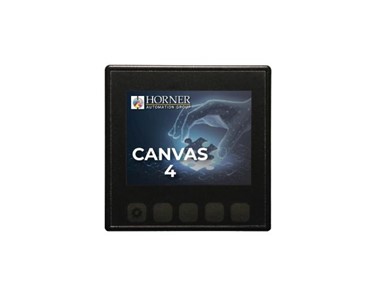

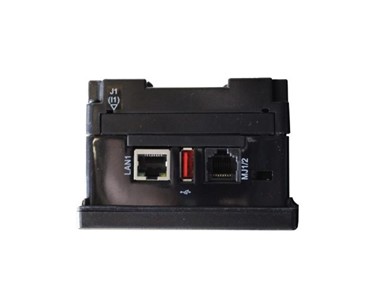

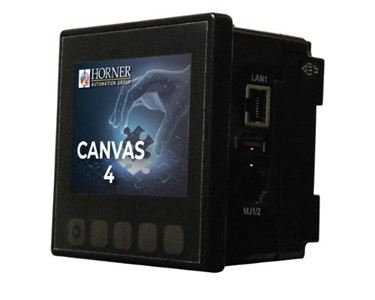

The Canvas 4 All-in-One PLC offers powerful programmable logic control with integrated operator interface, networking, and versatile I/O options, making it an ideal solution for advanced industrial automation tasks.

Fully integrated PLC with built-in HMI, networking, and advanced I/O in one compact device.

The Canvas 4 provides a complete, compact all-in-one solution for industrial automation. It integrates a logic engine, operator interface, networking, and extensive I/O in a single device.

Key Features

All-new graphics engine with Cscape 10 enhanced graphics
Multi-core SOM with dedicated logic and graphics cores
3.5” QVGA (320×240) colour display with 5 physical function keys
6 I/O configurations accommodating 22–44 onboard I/O points
Ethernet, RS-232/485 and CAN ports, 2MB logic memory
DIN-rail or ¼ DIN panel mountable
USB-A or Micro SD for easy data storage
Online programming and MQTT support with improved WebMI features
WebMI+, MQTT, Enhanced IEC, and J1939 features included as standard

Networking & Communication

1 x 10/100 Ethernet port (Auto-MDX)
Integrated CAN port supporting CsCAN, CANopen, J1939, DeviceNet Scanner
Protocols: Ethernet IP (Server & HMI), Modbus TCP (Client/Server), BACnet IP (Server), EGD, FTP, SMTP, NTP, ICMP
MQTT Sparkplug, Horner OC360 Cloud, WebMI via HTML5, EnvisionRV

Technical Specifications

Logic memory	2 MB
Logic scan rate	0.02 ms/K
Display resolution	320 x 240 (QVGA), 3.5" TFT colour
User memory	microSD removable
Built-in I/O	22–44 points, 6 configuration options
Digital I/O (max)	2048 In / 2048 Out
Analogue I/O (max)	512 In / 512 Out
General purpose registers	50,000 (retentive)
General purpose internal coils	32,768 (16,384 retentive)
Serial ports	1 x RS-232, 1 x RS-485
USB ports	USB-A, Mini-B
Supported CAN protocols	CsCAN, CANopen, DeviceNet, J1939
Operating temperature	0 to 60 °C (optional -40 °C low temp)
Humidity	5 to 95% (non-condensing)
Dimensions (H × W × D)	96 mm × 96 mm × 58 mm (COM option adds 13 mm depth)
Certifications	CE, UL Class 1 Div II, NEMA & UL Type 1/3R/4/4x/12/12k/13, ABS

Additional Information

AutoTune PID capable
Online programming
OEM faceplate available
Local comment storage
Supports PLC/Drive protocols, Modbus Master/Slave, Serial ASCII
Up to four CAN network segments (500 m per segment)

To contact Autech Control Group about Canvas 4 All-in-One PLC use Get a quote.

The Canvas 4 provides a complete, compact all-in-one solution for industrial automation. It integrates a logic engine, operator interface, networking, and extensive I/O in a single device.

Key Features

All-new graphics engine with Cscape 10 enhanced graphics
Multi-core SOM with dedicated logic and graphics cores
3.5” QVGA (320×240) colour display with 5 physical function keys
6 I/O configurations accommodating 22–44 onboard I/O points
Ethernet, RS-232/485 and CAN ports, 2MB logic memory
DIN-rail or ¼ DIN panel mountable
USB-A or Micro SD for easy data storage
Online programming and MQTT support with improved WebMI features
WebMI+, MQTT, Enhanced IEC, and J1939 features included as standard

Networking & Communication

1 x 10/100 Ethernet port (Auto-MDX)
Integrated CAN port supporting CsCAN, CANopen, J1939, DeviceNet Scanner
Protocols: Ethernet IP (Server & HMI), Modbus TCP (Client/Server), BACnet IP (Server), EGD, FTP, SMTP, NTP, ICMP
MQTT Sparkplug, Horner OC360 Cloud, WebMI via HTML5, EnvisionRV

Technical Specifications

Logic memory	2 MB
Logic scan rate	0.02 ms/K
Display resolution	320 x 240 (QVGA), 3.5" TFT colour
User memory	microSD removable
Built-in I/O	22–44 points, 6 configuration options
Digital I/O (max)	2048 In / 2048 Out
Analogue I/O (max)	512 In / 512 Out
General purpose registers	50,000 (retentive)
General purpose internal coils	32,768 (16,384 retentive)
Serial ports	1 x RS-232, 1 x RS-485
USB ports	USB-A, Mini-B
Supported CAN protocols	CsCAN, CANopen, DeviceNet, J1939
Operating temperature	0 to 60 °C (optional -40 °C low temp)
Humidity	5 to 95% (non-condensing)
Dimensions (H × W × D)	96 mm × 96 mm × 58 mm (COM option adds 13 mm depth)
Certifications	CE, UL Class 1 Div II, NEMA & UL Type 1/3R/4/4x/12/12k/13, ABS

Additional Information

AutoTune PID capable
Online programming
OEM faceplate available
Local comment storage
Supports PLC/Drive protocols, Modbus Master/Slave, Serial ASCII
Up to four CAN network segments (500 m per segment)

Read less...

To contact Autech Control Group about Canvas 4 All-in-One PLC use Get a quote.
