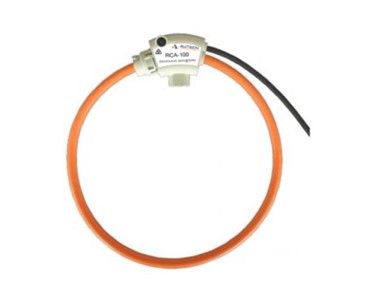

The RCA Rogowski Coil is a flexible current transducer ideal for accurate, non-intrusive current measurement in challenging installations and confined spaces.

Flexible coil design enables easy, non-intrusive current measurement in tight or awkward spaces.

Features

Flexible Rogowski coil, Ø 8 mm, secured with cable ties
High linearity measurement from 1 A to 100,000 A (100 kA)
Wide dynamic range
Ideal for large, awkward-shaped conductors or areas with limited access
Safe operation – not damaged by overloads and no danger from open-circuited secondary
Non-intrusive design draws no power from main conductor
Uniform measurement at any conductor position inside the coil
Excellent external interference rejection

Technical Specifications

Type: Flexible current transducer based on the Rogowski principle
Available in various sizes (customisable on request)
Requires connection to an electronic integrator for phase shift compensation and frequency equalisation
Shielded coil for stable measurement from low currents up to hundreds of kA
Measurement uniformity and external field immunity

Applications

Suitable for installations where traditional rigid current transformers are impractical due to size or shape constraints
Use in energy monitoring, industrial automation, and systems where non-intrusive current measurement is required

To contact Autech Control Group about Rogowski Coil | RCA use Get a quote.

Features

Flexible Rogowski coil, Ø 8 mm, secured with cable ties
High linearity measurement from 1 A to 100,000 A (100 kA)
Wide dynamic range
Ideal for large, awkward-shaped conductors or areas with limited access
Safe operation – not damaged by overloads and no danger from open-circuited secondary
Non-intrusive design draws no power from main conductor
Uniform measurement at any conductor position inside the coil
Excellent external interference rejection

Technical Specifications

Type: Flexible current transducer based on the Rogowski principle
Available in various sizes (customisable on request)
Requires connection to an electronic integrator for phase shift compensation and frequency equalisation
Shielded coil for stable measurement from low currents up to hundreds of kA
Measurement uniformity and external field immunity

Applications

Suitable for installations where traditional rigid current transformers are impractical due to size or shape constraints
Use in energy monitoring, industrial automation, and systems where non-intrusive current measurement is required

Read less...

To contact Autech Control Group about Rogowski Coil | RCA use Get a quote.

RCA-Coils-Data-Sheet(0.43MB)
