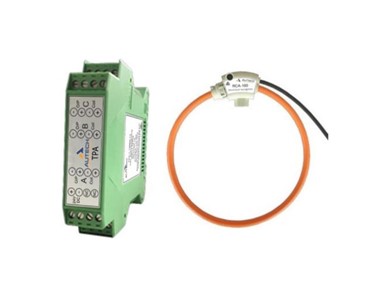

This integrator and Rogowski coil kit is designed for precise current measurement, ideal for high power load analysis and monitoring in electrical installations.

Flexible and precise current measurement for demanding electrical applications.

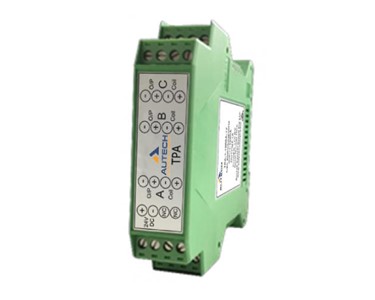

The integrator and Rogowski coil kit offers a flexible, three-phase DIN-rail system for accurate current measurement. Housed in a compact plastic DIN-rail enclosure, it is directly mains powered and suitable for installation in distribution boxes.

How It Works

The Rogowski coil outputs a low voltage (mV) signal, which the integrator amplifies and converts to a standard 1A AC signal suitable for meters.
The integrator equalizes the coil's frequency response, ensuring linear measurement across a wide frequency range for use on different electrical network frequencies.
It provides a necessary 90° phase shift and signal equalisation with negligible offset and high linearity.

Key Features

Compatible with all models and sizes of RCA Rogowski coils (0-1A AC output).
Customisable input values available on request for specific applications.
Highly flexible system suitable for:
- High power load analysis
- Impulsive current monitoring
- DC ripple measurement
Useful where traditional current transducers are not suitable.
Easy integration and installation in standard distribution boxes.

Applications

Electrical network monitoring
Industrial automation
Energy management systems

Specifications

Output Signal	0–1A AC
Mounting Type	DIN rail
Power	Direct from mains
Custom Input Value	Available on request

To contact Autech Control Group about TPA 1A Integrator and Rogowski Coil Kit use Get a quote.

How It Works

The Rogowski coil outputs a low voltage (mV) signal, which the integrator amplifies and converts to a standard 1A AC signal suitable for meters.
The integrator equalizes the coil's frequency response, ensuring linear measurement across a wide frequency range for use on different electrical network frequencies.
It provides a necessary 90° phase shift and signal equalisation with negligible offset and high linearity.

Key Features

Compatible with all models and sizes of RCA Rogowski coils (0-1A AC output).
Customisable input values available on request for specific applications.
Highly flexible system suitable for:
- High power load analysis
- Impulsive current monitoring
- DC ripple measurement
Useful where traditional current transducers are not suitable.
Easy integration and installation in standard distribution boxes.

Applications

Electrical network monitoring
Industrial automation
Energy management systems

Specifications

Output Signal	0–1A AC
Mounting Type	DIN rail
Power	Direct from mains
Custom Input Value	Available on request

Read less...

To contact Autech Control Group about TPA 1A Integrator and Rogowski Coil Kit use Get a quote.
