Thermo Scientific Premium Muffle Furnace ...

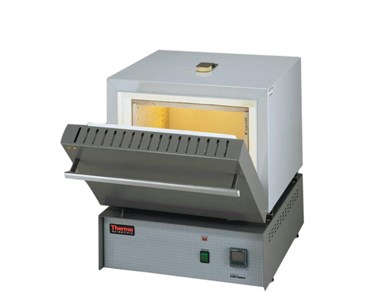

Thermo Scientific - Premium Muffle Furnace | 4 programmes, 16 segments

Supplier: Thermo Fisher Scientific

Premium Muffle Furnace | 4 programmes, 16 segments

This premium muffle furnace is designed for advanced laboratory and industrial applications, offering precise digital control with multiple programmes and segments.

Advanced multi-programme control and superior temperature uniformity for demanding applications.

Key Features

Ideal for ashing organic and inorganic samples, and gravimetric analysis.
Four heating elements (top, bottom, sides) for optimised temperature uniformity.
Integrated vent to remove contaminants and moisture, prolonging element and furnace life.
Rear port (Ø 0.95 cm) for independent chamber temperature monitoring.
Optional stainless steel shelf doubles internal capacity (max temp 900 °C).
Door safety switch cuts power if door is opened.
Thermocouple break protection prevents uncontrolled operation.
Mechanical over-temperature protection on models with B1, C1, and D1 controls.
Digital programmable control: 4 saved programmes, 16 segments each. RS232 communication port.

Technical Specifications

Temperature Control	Digital, 4 programmes, 16 segments per programme
Operating Voltage	208 V, 50/60 Hz
Power Consumption	4000 W
Current	19.3 A
Inner Dimensions (L x W x H)	25 x 33 x 18 cm
Outer Dimensions (L x W x H)	51 x 48.5 x 53.3 cm
Chamber Volume	14 L
Temperature Range	100 °C to 1200 °C
Temperature Stability	±1.5 °C at 1000 °C
Temperature Uniformity	±4.5 °C at 1000 °C
Shelving	Stainless steel (optional)
Shipping Weight	60.8 kg
Certifications	CSA-approved

Controls Overview

Single setpoint digital control (A1)
Single setpoint with ramp/hold (B1)
Programmable: 1 stored programme, 8 segments (C1)
Programmable: 4 stored programmes, 16 segments each (D1, RS232 communication)

Additional Information

All models except F6010 and F6018 require hardwiring.
1-year warranty included.
Internal research restriction does not apply to this product line.

To contact Thermo Fisher Scientific about Thermo Scientific Premium Muffle Furnace | 4 programmes, 16 segments use Get a quote.

Key Features

Ideal for ashing organic and inorganic samples, and gravimetric analysis.
Four heating elements (top, bottom, sides) for optimised temperature uniformity.
Integrated vent to remove contaminants and moisture, prolonging element and furnace life.
Rear port (Ø 0.95 cm) for independent chamber temperature monitoring.
Optional stainless steel shelf doubles internal capacity (max temp 900 °C).
Door safety switch cuts power if door is opened.
Thermocouple break protection prevents uncontrolled operation.
Mechanical over-temperature protection on models with B1, C1, and D1 controls.
Digital programmable control: 4 saved programmes, 16 segments each. RS232 communication port.

Technical Specifications

Temperature Control	Digital, 4 programmes, 16 segments per programme
Operating Voltage	208 V, 50/60 Hz
Power Consumption	4000 W
Current	19.3 A
Inner Dimensions (L x W x H)	25 x 33 x 18 cm
Outer Dimensions (L x W x H)	51 x 48.5 x 53.3 cm
Chamber Volume	14 L
Temperature Range	100 °C to 1200 °C
Temperature Stability	±1.5 °C at 1000 °C
Temperature Uniformity	±4.5 °C at 1000 °C
Shelving	Stainless steel (optional)
Shipping Weight	60.8 kg
Certifications	CSA-approved

Controls Overview

Single setpoint digital control (A1)
Single setpoint with ramp/hold (B1)
Programmable: 1 stored programme, 8 segments (C1)
Programmable: 4 stored programmes, 16 segments each (D1, RS232 communication)

Additional Information

All models except F6010 and F6018 require hardwiring.
1-year warranty included.
Internal research restriction does not apply to this product line.
