Thermo Scientific Multiscan & Selectscan ...

Thermo Scientific - Multiscan & Selectscan Metal Detectors

Supplier: Thermo Fisher Scientific

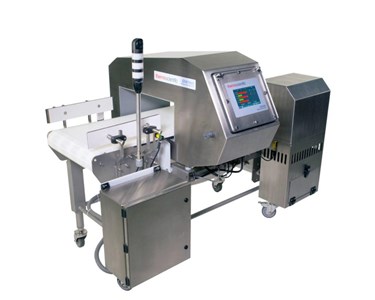

Multiscan & Selectscan Metal Detectors

The Sentinel Multiscan and Selectscan Metal Detectors are designed for the food industry, providing advanced detection of metal contaminants in food, beverage, and related products.

Detects up to five frequencies to identify all types and sizes of metal contaminants with market-leading sensitivity.

Sentinel Multiscan and Selectscan Metal Detectors are the first metal detectors in the food industry to utilise up to five user-selectable frequencies for the detection of all types and shapes of metal contaminants. They ensure increased safety, improved product quality, and enhanced production efficiency.

Models Available

Sentinel 5000 Multiscan: Offers up to five frequency scanning, identifying metal contaminants as much as 50% smaller than those detected by comparable models.
Sentinel 3000 Multiscan: Compact model, suitable for metal detection-checkweighing combination systems, detecting contaminants up to 35% smaller.
Sentinel 1000 Selectscan: Allows rapid identification of the best single frequency for specific applications and adjusts for temperature and electromagnetic interference.

Key Features

Remote control panel mounting
Frequency range: 50 – 1000 kHz (multiscan runs up to five frequencies)
Easy-to-use touchscreen with Autolearn set-up optimisation
Graphical displays for phase, rejects, quality tests, and detection thresholds
IP69K rating for severe washdown and dust resistance
Software balance functions (no manual rebalancing required)
Wide ambient temperature tolerance
Fe, non-Fe, and 316 SS test pieces supplied
Interfaces available on both metal detector and checkweighers (in combo systems)

Specifications

Specification	Details
Opening Dimensions	Width: 75 – 2000 mm; Height: 75 – 600 mm (increments of 25 mm up to 200 mm, 50 mm above 200 mm)
Certification/Compliance	cCSAus, CE, ISO9001
HMI	7" (178 mm) colour touchscreen
USB Port	Watertight USB 2.0
Construction	304 stainless steel (HD option: 316 SS)
Electrical Requirements	100/240 V AC, single phase, 50/60 Hz, 0.6–1.2 A
Ingress Protection	IP69K, HD option with thermal shock protection
Operating Temperature	-10°C to +40°C (ambient); Product in aperture: -10°C to +55°C (max 40°C for HD)
Max Washdown Temperature	55°C (HD: 65°C)
Relative Humidity	20–80%, non-condensing (breather valve standard)
Detection Sensitivity	Detects contaminants up to 70% smaller than APEX 500 (application dependent)
Speed Range	0.5 – 80 m/min (encoder input recommended)

Applications

Metal detection in food, beverages, and other processing products
Fits food industry metal detection-checkweighing systems and stand-alone installations
Suitable for severe washdown and high-dust environments

To contact Thermo Fisher Scientific about Thermo Scientific Multiscan & Selectscan Metal Detectors use Get a quote.

Models Available

Sentinel 5000 Multiscan: Offers up to five frequency scanning, identifying metal contaminants as much as 50% smaller than those detected by comparable models.
Sentinel 3000 Multiscan: Compact model, suitable for metal detection-checkweighing combination systems, detecting contaminants up to 35% smaller.
Sentinel 1000 Selectscan: Allows rapid identification of the best single frequency for specific applications and adjusts for temperature and electromagnetic interference.

Key Features

Remote control panel mounting
Frequency range: 50 – 1000 kHz (multiscan runs up to five frequencies)
Easy-to-use touchscreen with Autolearn set-up optimisation
Graphical displays for phase, rejects, quality tests, and detection thresholds
IP69K rating for severe washdown and dust resistance
Software balance functions (no manual rebalancing required)
Wide ambient temperature tolerance
Fe, non-Fe, and 316 SS test pieces supplied
Interfaces available on both metal detector and checkweighers (in combo systems)

Specifications

Specification	Details
Opening Dimensions	Width: 75 – 2000 mm; Height: 75 – 600 mm (increments of 25 mm up to 200 mm, 50 mm above 200 mm)
Certification/Compliance	cCSAus, CE, ISO9001
HMI	7" (178 mm) colour touchscreen
USB Port	Watertight USB 2.0
Construction	304 stainless steel (HD option: 316 SS)
Electrical Requirements	100/240 V AC, single phase, 50/60 Hz, 0.6–1.2 A
Ingress Protection	IP69K, HD option with thermal shock protection
Operating Temperature	-10°C to +40°C (ambient); Product in aperture: -10°C to +55°C (max 40°C for HD)
Max Washdown Temperature	55°C (HD: 65°C)
Relative Humidity	20–80%, non-condensing (breather valve standard)
Detection Sensitivity	Detects contaminants up to 70% smaller than APEX 500 (application dependent)
Speed Range	0.5 – 80 m/min (encoder input recommended)

Applications

Metal detection in food, beverages, and other processing products
Fits food industry metal detection-checkweighing systems and stand-alone installations
Suitable for severe washdown and high-dust environments

Read less...

To contact Thermo Fisher Scientific about Thermo Scientific Multiscan & Selectscan Metal Detectors use Get a quote.
