Thermo Scientific Laboratory Vacuum Oven ...

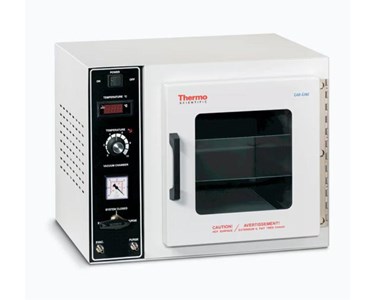

Thermo Scientific - Laboratory Vacuum Oven | 65.1 L

Supplier: Thermo Fisher Scientific

Laboratory Vacuum Oven | 65.1 L

This versatile vacuum oven provides controlled heating in vacuum environments, ideal for laboratory drying and curing applications up to 220°C.

Uniform and programmable heating up to 220°C with reliable vacuum sealing.

Key Features

Maximum temperature of 220°C, ideal for a wide range of laboratory processes including drying, curing, embedding and coating.
Two control configurations and display options: bimetallic thermometer or programmable PID control.
Independent vacuum and purge needle valves for flexibility in operation.
Built-in wall heating system optimises uniform temperature distribution and saves chamber space.
7.6 cm glass wool insulation to prevent heat loss and silicon door seal with positive latching ensures reliable vacuum sealing at all levels.
Polycarbonate safety window within the door, vacuum level gauge from 0 to 762 mmHg.
Stainless steel vacuum and air lines for long-term performance and optimal chamber cleanliness.
Removable aluminium stacking shelves and an easy-to-clean stainless steel (type 304) interior.
Front-mounted three-way valves for easy evacuation, venting and inert gas purging.
Durable, powder-coated heavy steel outer case.

Technical Specifications

Attribute	Value
Capacity	65.1 L
Internal dimensions (H × W × D)	36 × 36 × 51 cm
External dimensions (H × W × D)	56 × 64 × 64 cm
Power	240 V, 50/60 Hz, 6.7 A, 1600 W
Temperature range	Ambient +10°C to 220°C
Temperature Uniformity	±5.0°C at 100°C, 25 ft. Hg
Temperature Resolution	±1.0°C
Vacuum range	0 to 30 in. Hg (0–762 mmHg)
Chamber material	Stainless steel (Type 304)
Number of shelves	2 (aluminium, removable)
Shipping weight	134 kg

Additional Details

Front and rear connections for vacuum lines and inert gas input (e.g., nitrogen or argon).
Built-in over-temperature protection and safety shutoff.
Programmable microprocessor control (model 3618P) offers ±0.2°C regulation and up to 24-step programs with ramp rates and dwell times.
Optional digital units for Torr/micrometre readings available (factory installation required).
Suitable for both research and general laboratory applications without internal-use restriction.
