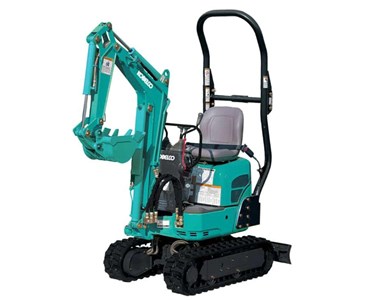

Name: Mini Excavator SK008 (0.8t Compact Class)
Price: 50000 AUD
Availability: InStock

Exceptionally narrow body width for unrivalled manoeuvrability in tight spaces.

Main Features

Super-compact design allows access through passages as narrow as 680 mm, making it suitable for work in confined spaces, especially residential areas with space restrictions.
Retractable crawler width of 680 mm (retracted) - 840 mm (extended) for versatile working requirements and easy transport.
High-output, 7.7 kW engine with 10.5 kN digging force, delivering best-in-class power for efficient operation.
Sturdy, reinforced structure with high lateral stability thanks to outer flange-type lower rollers.
Standard large-capacity 0.022 m³ bucket, larger than previous models, improving workload capacity.
Boom swing type mechanism for up to 310 mm digging width outside the left crawler when retracted, supporting versatile excavation close to walls.
Low tail swing radius (30.5 cm overhang) for safe and efficient work near obstacles.
Advanced maintenance features including fully opening hood, corrosion-resistant radiator, easy water drainage from fuel filter, and long-life hydraulic oil with a 1,000-hour replacement cycle.
Operator comfort with flat floor for ample legroom and cast bucket link for durability.

Technical Specifications

Operating Weight	1,035 kg
Standard Bucket Capacity	0.022 m³ (heaped), 0.016 m³ (struck)
Standard Bucket Width	350 mm (including side cutters)
Engine Model	PERKINS 402J-05 IG84555R, 2-cylinder diesel
Engine Output	7.7 kW / 2,400 min?¹ (10.5 PS / 2,400 rpm)
Fuel Tank Capacity	9.7 L
Travel Speed	1.8 km/h
Swing Speed	8.4 min?¹ (8.4 rpm)
Gradeability	58% (30 degrees)
Maximum Digging Force (Bucket)	10.5 kN (1,070 kgf)
Ground Contact Pressure	27.9 kPa (0.28 kgf/cm²)
Shoe Width	180 mm
Hydraulic Oil Capacity	System: 10.7 L (Oil in tank: 5.7 L)
Dimensions (transport position)	Length: 2,830 mm Width: 680 mm (retracted) / 840 mm (extended) Height: 1,500 mm
Blade Width × Height	680/840 mm × 180 mm
Boom Swing	Left: 45°, Right: 90°

Standard Equipment

To contact Sydney Trucks & Machinery STM about Kobelco Mini Excavator SK008 (0.8t Compact Class) use Get a quote.
