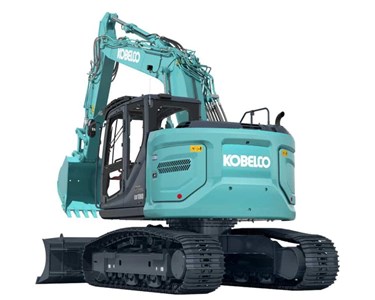

Kobelco - ED160BR-7 Hydraulic Medium Excavator

ED160BR-7 Hydraulic Medium Excavator

The ED160BR-7 is a robust hydraulic excavator designed for efficient digging, backfilling, and material handling, with advanced comfort, operability and safety features.

Combines high digging power, advanced comfort, and leading safety with smart remote monitoring.

Powerful Tier 4 Final ISUZU engine delivering 86.0 kW at 2,200 min?¹
Operating weight: 16,400 – 17,700 kg
Bucket capacity (ISO heaped): 0.38–0.50 m³
New ergonomic cabin with air suspension seat and optimal air conditioning
10-inch colour monitor with multiple camera modes for enhanced safety
Advanced hydraulic system with adjustable modes for various attachments
Power, Angle and Tilt (PAT) 6-way dozer blade for versatile earthwork
Integrated telematics via GEOSCAN for remote monitoring and maintenance planning
LED integrated lighting and intuitive jog dial controls

Ergonomically designed cabin with GRAMMER air suspension seat and adjustable controls
LED backlit switches and dials for use in low light
Optimally placed air conditioning vents for added comfort
Low-effort, ergonomically placed pilot control levers

High engine output and upgraded hydraulics shorten digging cycle time by 10% over previous models
Multiple camera views (right, rear, eagle-eye) for superior jobsite awareness
Automatic swing brake and dozer blade with 445 mm tilt and 25° angle for slope grading and backfilling
Large ground clearance (455 mm) for unhindered movement

Attachment mode for various tools (bucket, breaker, nibbler, rotating grapple, tilt rotator)
Easily adjusts hydraulic flow and operation characteristics for different attachments

GEOSCAN telematics system for live machine, maintenance, fuel, and security data
Remote location and operation monitoring, alerts for engine start/area departure
iNDr dust filter ensures long-term cooling performance

Engine Model	ISUZU 4JJ1XDRAC-01 (Tier 4 Final)
Rated Power Output	86.0 kW @ 2,200 min?¹
Bucket Capacity (ISO heaped)	0.38 – 0.50 m³
Operating Weight	16,400 – 17,700 kg
Max. Digging Depth	5.36 m (2.38 m arm), 5.79 m (2.84 m arm)
Max. Digging Reach	8.17 m (2.38 m arm), 8.62 m (2.84 m arm)
Dozer Blade	3,260 mm width x 810 mm height, tilt: 445 mm, angle: 25°
Drawbar Pulling Force	195 kN
Travel Speed	2.4 / 4.8 km/h
Fuel Tank Capacity	186 L

LED lighting (work lights, door light, cab light), camera system (rear, right, left)
AM/FM Bluetooth® radio, USB/12V power outlet, smartphone holder
Auto idle stop, quick hitch piping, travel alarm, wide rubber shoes, openable top guard

Powerful Tier 4 Final ISUZU engine delivering 86.0 kW at 2,200 min?¹
Operating weight: 16,400 – 17,700 kg
Bucket capacity (ISO heaped): 0.38–0.50 m³
New ergonomic cabin with air suspension seat and optimal air conditioning
10-inch colour monitor with multiple camera modes for enhanced safety
Advanced hydraulic system with adjustable modes for various attachments
Power, Angle and Tilt (PAT) 6-way dozer blade for versatile earthwork
Integrated telematics via GEOSCAN for remote monitoring and maintenance planning
LED integrated lighting and intuitive jog dial controls

Ergonomically designed cabin with GRAMMER air suspension seat and adjustable controls
LED backlit switches and dials for use in low light
Optimally placed air conditioning vents for added comfort
Low-effort, ergonomically placed pilot control levers

High engine output and upgraded hydraulics shorten digging cycle time by 10% over previous models
Multiple camera views (right, rear, eagle-eye) for superior jobsite awareness
Automatic swing brake and dozer blade with 445 mm tilt and 25° angle for slope grading and backfilling
Large ground clearance (455 mm) for unhindered movement

Attachment mode for various tools (bucket, breaker, nibbler, rotating grapple, tilt rotator)
Easily adjusts hydraulic flow and operation characteristics for different attachments

GEOSCAN telematics system for live machine, maintenance, fuel, and security data
Remote location and operation monitoring, alerts for engine start/area departure
iNDr dust filter ensures long-term cooling performance

Engine Model	ISUZU 4JJ1XDRAC-01 (Tier 4 Final)
Rated Power Output	86.0 kW @ 2,200 min?¹
Bucket Capacity (ISO heaped)	0.38 – 0.50 m³
Operating Weight	16,400 – 17,700 kg
Max. Digging Depth	5.36 m (2.38 m arm), 5.79 m (2.84 m arm)
Max. Digging Reach	8.17 m (2.38 m arm), 8.62 m (2.84 m arm)
Dozer Blade	3,260 mm width x 810 mm height, tilt: 445 mm, angle: 25°
Drawbar Pulling Force	195 kN
Travel Speed	2.4 / 4.8 km/h
Fuel Tank Capacity	186 L

LED lighting (work lights, door light, cab light), camera system (rear, right, left)
AM/FM Bluetooth® radio, USB/12V power outlet, smartphone holder
Auto idle stop, quick hitch piping, travel alarm, wide rubber shoes, openable top guard
