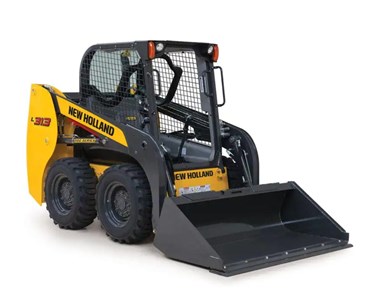

New Holland - Skid Steer Loader 300 Series

Skid Steer Loader 300 Series

The New Holland 300 Series Skid Steer Loaders and Compact Track Loaders are robust machines engineered for tough jobs, offering superior visibility, comfort, and performance for various construction and earthmoving tasks.

Super Boom® vertical lift design enables maximum dump reach and all-around visibility for superior productivity.

Engineered for demanding applications, these loaders maximise productivity with the Super Boom® vertical lift linkage, providing exceptional dump height and reach—ideal for loading high-sided truck boxes and hoppers. The design also prioritises operator visibility and comfort with a wide cab, ergonomic controls, and advanced features to reduce fatigue and improve efficiency.

Key Features

Super Boom® vertical lift for higher dump reach and improved visibility
Wide cab with noise-absorbing trim and optional sealed, pressurised environment
Easy-entry, comfortable operator station with enhanced instrument cluster and joystick controls
Fast cycle times with reliable, quiet hydraulic systems
Automatic straight-line tracking on electronic models for improved accuracy
Efficient maintenance access with grouped service points and flip-forward cab
Optional equipment—including road light kits, cylinder guards, beacon, demolition door, and foot controls
Standard two-speed drive (compact track models) and simple hydraulic track adjustment

Specifications Overview

Model	Boom Geometry	Rated Capacity (kg)	Tipping Load (kg)	Power (kW/hp)	Operating Weight (kg)	Travel Speed (km/h)	Pump Flow Rate (L/min)
L313	Radial	590	1179	36/49	2300	12.7	59
L315	Radial	680	1361	44.7/60	2430	12.7	59
L318	Vertical	818	1633	44.7/60	2832	12.7/18	72
L320	Vertical	905	1814	44.7/60	2930	12.7/18	72
L325	Vertical	1135	2268	61/82	3580	11.3/16.9	85
L330	Vertical	1360	2722	67/90	3765	11.3/16.9	85
C327	Radial	1225	2449	55/74	3750	8.9/12.9	85
C332	Vertical	1451	2902	61/82	4336	8.9/12.9	85
C338	Vertical	1723	3447	67/90	4547	8.9/12.9	85

Dimensions and Capacity

Overall height with bucket: 3859–4326 mm (model dependent)
Maximum hinge pin height: 2845–3330 mm
Operating weight: 2300–4547 kg
Ground clearance: 178–244 mm
High-flow hydraulic options for select models
Glow plugs and robust starter included

Easy-access grouped service points, single-side battery maintenance layout, and a rear door/hood for effortless checks. Engage the boom lock from inside the cab for added safety.

Backed by the New Holland dealer and global parts network, ensuring rapid support and parts availability to minimise downtime and maximise machine reliability.
