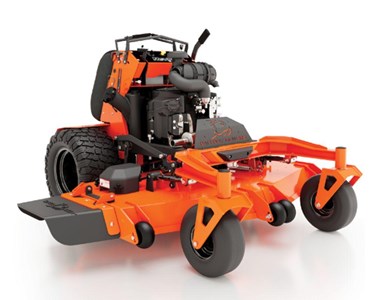

Revolt - Stand-On Zero Turn Mower | Kawasaki FX691 FX730

Supplier: PFG Australia

Stand-On Zero Turn Mower | Kawasaki FX691 FX730

The Revolt Stand-On Zero-Turn Mower is expertly engineered for precision, manoeuvrability and durability, making it a leading choice for professional landscapers and demanding commercial applications.

Superior manoeuvrability with a low centre of gravity and robust commercial construction.

The Revolt Stand-On Zero-Turn Mower is manufactured in Batesville, Arkansas and designed for maximum performance and usability. Its compact frame, curved I-Beam front fork support, large rear and no-flat front tyres provide exceptional visibility, stability, and traction.

Key Features

4.8 mm / 7-gauge all-steel, formed and welded deck with reinforced edges
Curved I-Beam front rail for added durability
Quick access panel for drive and belt maintenance
Dual Hydro-Gear performance integrated drive systems
9.5 mm steel front forks, 82.55 mm trail for smooth directional change
Improved variable deck lift adjustment
Removable panel for easy maintenance of battery, control arm, and hydro-tanks
Adjustable rubber suspension riding platform for operator comfort
Peer cast iron, maintenance-free spindles
Three-position speed control & electric PTO
Ergonomic thigh pad & no-flat front tyres
Integrated striping kit for a professional finish

Operator Benefits

Lower centre of gravity for superior manoeuvrability and stability
Hand-operated height of cut control allows quick adjustments
Legendary 584 mm Reaper® tread pattern rear tyre for improved hillside traction
Smooth ride even in tight or sloped areas

Specifications

Engine Options	Kawasaki FX691 726cc 22 hp (36") Kawasaki FX730 726cc 23.5 hp (48")
Transmission	Dual Hydro Gear 3100 (36"); Dual Hydro Gear 3400 (48")
Cutting Width	914.4 mm (36") \| 1219 mm (48")
Overall Weight	365 kg (36") \| 422 kg (48")
Overall Height / Length	1219 mm / 1600 mm
Chute Width (Up / Down)	978 mm / 1283 mm (36") 1283 mm / 1588 mm (48")
Deck Thickness	7 Gauge / 4.8 mm
Cutting Height	50 mm to 127 mm
Lift & Height Adjustment	Hand-assist manual lift with height adjustment
Fuel Capacity	29.55 L
Rear / Front Tyres	21×7-10 Reaper / 13×6.5-6 Smooth (36") \| 23×9-10 Reaper / 13×6.5-6 Smooth (48")
Maximum Speed	Up to 14.48 km/h

To contact PFG Australia about Revolt Stand-On Zero Turn Mower | Kawasaki FX691 FX730 use Get a quote.
