Technomark - Connect Buddy 120 | Handheld Dot Peen Marking Machine Price Guide: $7,900

Supplier: Trend Marking Systems

Connect Buddy 120 Portable Dot Peen Marking Machine

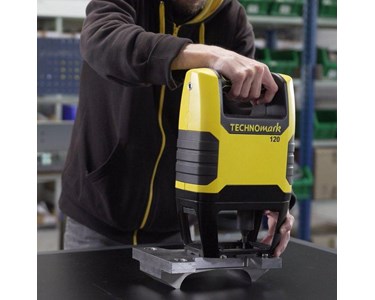

Connect Buddy 120 HandHeld Dotpeen Marking Machine.JPG

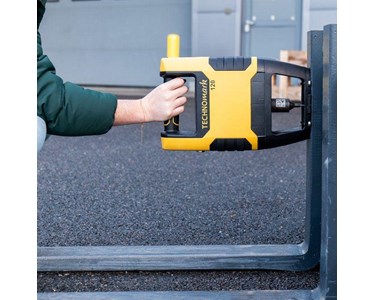

Connect 120 Battery Dot Peen Machine

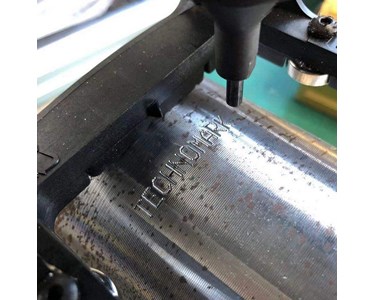

Dot Peen Permanent Marking on Round Surface

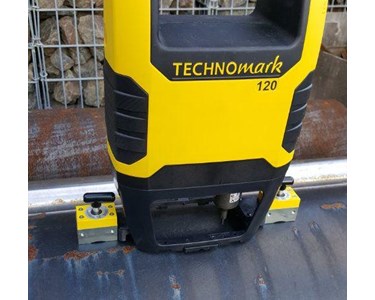

Dot Peen with Magnetic Fixture

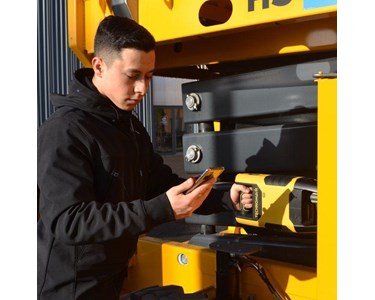

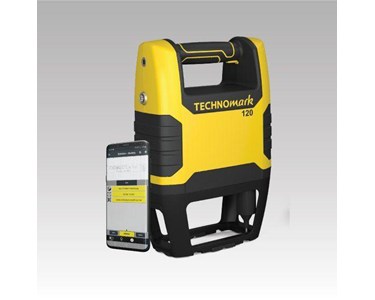

Connect Dot Peen with Smartphone App

The Connect Buddy 120 is a 100% wireless mobile dot peen marking system. Controlled via smartphone or tablet Wi-Fi, it replaces heavy controllers and trailing cables so you can mark bulky, hard-to-reach parts anywhere in your shop or field.

Advanced Portable Dot Peen

Receive 1-3 days from order

Connect Buddy 120 Mobile Dot Peen Marking Machine

The Connect Buddy 120 is an ultra-portable, 100% nomadic mobile dot peen marking system designed for ultimate operator freedom. Controlled directly from a smartphone or tablet via a secure wireless Wi-Fi connection, the Buddy 120 eliminates trailing cables and heavy controllers—allowing you to mark heavy, bulky, or hard-to-reach parts anywhere in your facility or out in the field.

Key Benefits & Value Proposition

True 100% Wireless Freedom: Connects directly to an Android smartphone or tablet via secure Wi-Fi. Operators can roam around large assemblies without cable constraints or distance limitations.
Large 120 x 60 mm Marking Window: Double the marking area of standard portable units, allowing multi-line text, large DataMatrix 2D codes, and detailed logos in a single pass.
Ergonomic & Lightweight: Weighing only 3.2 kg, the balanced in-axis handle and protective bumpers enable effortless 360° marking in any orientation (top, side, or inverted).
All-Day High-Performance Battery: Powered by an embedded 22V Lithium-ion (NMC) battery for full-day operation, featuring a hybrid plug-in backup mode for non-stop intensive tasks.
Versatile 5-in-1 Support Foot: Integrated mounting foot supports flat surfaces, magnetic positioning, non-slip rubber grip, cylinder/pipe marking, and precision positioning.

Smart App Control & Features

The marking head is managed via Technomark’s intuitive Connect App (compatible with Android 10+):

3-Click Marking Setup: Create, load, and execute marking jobs in seconds.
Traceability & Barcode Capabilities: Mark serial numbers, date/time stamps, alphanumeric text, 1D/2D DataMatrix codes, and custom logos.
Integrated Code Scanning: Utilize the mobile device camera to scan 1D and 2D barcodes for fast, error-free data entry.
Dual User Access Modes: Password-protected Administrator mode for template design and production-ready Operator mode for streamlined execution.
Real-Time Monitoring: Instant feedback on marking progress, battery life, and preventive maintenance alerts.

Technical Specifications

Feature	Specification
Marking Area	120 mm x 60 mm
Weight	3.2 kg
Connectivity	Secure Wireless Wi-Fi (Up to 10 m range to smartphone/tablet)
Power Source	High-performance 22V Lithium-ion (NMC) Battery
Operation Modes	100% Battery / Plug-in Hybrid Mode
Marking Forces	11 selectable force settings
Marking Speeds	3 selectable speed modes
Controller Application	Connect App (Android 10 and above)
Supported Materials	Steel, Stainless Steel, Aluminum, Titanium, Brass, Cast Iron, Hardened Metals (up to 62 HRC), and Rigid Plastics (PVC, Polyamide, Polycarbonate)
Marking Types	Alphanumeric Text, Serial Numbers, Time/Date Stamps, Shift Codes, Logos, QR Codes, DataMatrix (ECC200)
Included Hardware	5-in-1 multi-purpose support foot, protective bumpers, internal battery pack

Connect Buddy 120 Mobile Dot Peen Marking Machine

Key Benefits & Value Proposition

True 100% Wireless Freedom: Connects directly to an Android smartphone or tablet via secure Wi-Fi. Operators can roam around large assemblies without cable constraints or distance limitations.
Large 120 x 60 mm Marking Window: Double the marking area of standard portable units, allowing multi-line text, large DataMatrix 2D codes, and detailed logos in a single pass.
Ergonomic & Lightweight: Weighing only 3.2 kg, the balanced in-axis handle and protective bumpers enable effortless 360° marking in any orientation (top, side, or inverted).
All-Day High-Performance Battery: Powered by an embedded 22V Lithium-ion (NMC) battery for full-day operation, featuring a hybrid plug-in backup mode for non-stop intensive tasks.
Versatile 5-in-1 Support Foot: Integrated mounting foot supports flat surfaces, magnetic positioning, non-slip rubber grip, cylinder/pipe marking, and precision positioning.

Smart App Control & Features

The marking head is managed via Technomark’s intuitive Connect App (compatible with Android 10+):

3-Click Marking Setup: Create, load, and execute marking jobs in seconds.
Traceability & Barcode Capabilities: Mark serial numbers, date/time stamps, alphanumeric text, 1D/2D DataMatrix codes, and custom logos.
Integrated Code Scanning: Utilize the mobile device camera to scan 1D and 2D barcodes for fast, error-free data entry.
Dual User Access Modes: Password-protected Administrator mode for template design and production-ready Operator mode for streamlined execution.
Real-Time Monitoring: Instant feedback on marking progress, battery life, and preventive maintenance alerts.

Technical Specifications

Feature	Specification
Marking Area	120 mm x 60 mm
Weight	3.2 kg
Connectivity	Secure Wireless Wi-Fi (Up to 10 m range to smartphone/tablet)
Power Source	High-performance 22V Lithium-ion (NMC) Battery
Operation Modes	100% Battery / Plug-in Hybrid Mode
Marking Forces	11 selectable force settings
Marking Speeds	3 selectable speed modes
Controller Application	Connect App (Android 10 and above)
Supported Materials	Steel, Stainless Steel, Aluminum, Titanium, Brass, Cast Iron, Hardened Metals (up to 62 HRC), and Rigid Plastics (PVC, Polyamide, Polycarbonate)
Marking Types	Alphanumeric Text, Serial Numbers, Time/Date Stamps, Shift Codes, Logos, QR Codes, DataMatrix (ECC200)
Included Hardware	5-in-1 multi-purpose support foot, protective bumpers, internal battery pack
