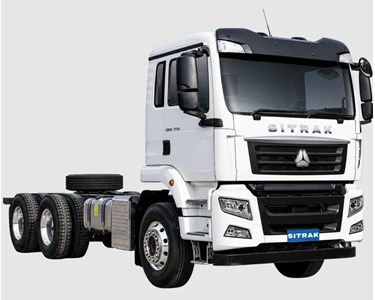

SITRAK - G5S 6x4 Tipper Cab & Chassis Truck

Supplier: Rumble Auto

G5S 6x4 Tipper Cab & Chassis Truck

The SITRAK G5S 6x4 Tipper Cab & Chassis is engineered for robust performance in construction and heavy-duty applications.

Robust performance for construction and heavy-duty applications.

Receive 1-3 days from order

Overview

The SITRAK G5S 6x4 Tipper Cab & Chassis is designed to meet the rigorous demands of construction, quarry, and infrastructure projects. With a powerful 7.36L engine and an Allison automatic transmission, this vehicle ensures dependable torque and traction, making it ideal for heavy material transport across Australia.

Key Features

Proven 7.36L Diesel Engine

Engine Model: MC07H.31-61
Displacement: 7.36L
Max Power: 228 kW @ 2200 rpm
Max Torque: 1250 Nm @ 1200–1700 rpm
Delivers strong low-to-mid range torque for loaded site operation.

Allison 3200P Automatic Transmission

Smooth automatic shifting
Improved control in stop-start construction environments
Reduced driver fatigue on repetitive haul cycles

Heavy-Duty 6x4 Driveline

GVM: 25,000 kg
Front Axle Design Load: 7,000 kg
Rear Axle Design Load: 18,000 kg
Main Drive Ratio: 5.29
Differential Locks: Interwheel & Interaxle
Provides improved traction on uneven or loose surfaces.

Reinforced Tipper-Ready Frame

Trapezoidal ladder-type chassis
Main Beam Section: 280 × 80 × 8 mm
Wide front / narrow rear frame design
Built to support tipper body installations and heavy payload cycles.

Suspension for Load Stability

Front: Parabolic leaf springs
Rear: 4-bag Hendrickson Comfort Air suspension
Enhances ride stability while protecting chassis integrity.

Advanced Safety & Braking

Dual Circuit Compressed Air Brake
EBS + ESC + HSA
AEBS + LDW
Spring Energy Air-Cut Parking Brake
Improves safety compliance and fleet protection standards.

Technical Specifications

The G5S 6x4 Tipper Cab & Chassis is equipped with robust specifications to handle demanding tasks.

Specification	Details
Kerb Weight	7,250 kg
GVM	25,000 kg
Max Speed	100 km/h
Max Gradeability	=30%
Fuel Tank Capacity	300 L
Kerb-to-Kerb Turning Circle	16.094 m
Overall Length	7,430 mm
Width	2,490 mm
Height (Unloaded)	3,145 mm
Wheelbase	4,300 mm
Front Overhang	1,430 mm
Rear Overhang	1,700 mm
Front Tyres	295/80R22.5
Rear Tyres	11R22.5
Rims	Aluminium (Front & Rear)
Operating Voltage	24V
Alternator	28V / 110A
Batteries	2 × 12V / 180Ah

Applications

The G5S 6x4 Tipper Cab & Chassis is versatile and suitable for various heavy-duty applications:

Construction & Civil Engineering — Ideal for transporting sand, gravel, soil, and aggregates.
Quarry & Mining Support — Reliable for heavy material hauling.
Infrastructure Projects — Suitable for road construction, demolition, and urban development.
Fleet Tipper Operations — Built for high-frequency daily operations in commercial fleets.
