High-resolution scans with a wide frequency range.

Receive 3-7 days from order

Overview

The GS8000 Lite is a sophisticated Ground Penetrating Radar (GPR) system specifically designed for subsurface utility location. It employs a stepped frequency antenna that operates within a frequency range of 40 MHz to 3.4 GHz, ensuring high-resolution scans and improved depth penetration. This makes it ideal for detecting and mapping buried utilities in various terrains.

Key Features

High-resolution scans: The stepped frequency antenna provides exceptional clarity and detail.
Wide frequency range: Covers 40 MHz to 3.4 GHz for versatile applications.
Portable design: Compact and foldable for easy transport.
Dual frequency visualisation: Offers control over data display for optimal results.
Expandable power options: Compatible with any large capacity USB C battery bank.

Technical Specifications

The GS8000 Lite is equipped with cutting-edge technology to ensure efficient and accurate subsurface investigations.

Model	GS8000 Lite
Configuration	Pushcart, integrated GPR sensor, tablet holder, power supply, cables, Wi-Fi module, basic tools & accessories, documentation.
Radar Technology	Stepped-frequency Continuous-Wave GPR
Modulated Frequency Range	40 – 3440 MHz
Effective Bandwidth	3200 MHz
Max. time window	200 ns
Scan Rate	500 Hz
Spatial Interval	Up to 100 scans/m
Acquisition Speed	Up to 80 Km/h
Wheel Encoders	2
Weight	24 kg
Dimensions	610 x 570 x 380 mm
Power supply	Removable flight-safe battery pack, Off-the-shelf power bank

Applications

This GPR system is ideal for utility locating and mapping, civil and survey contractors, and road and corridor investigations. It is also suitable for void and subsurface anomaly surveys.

Additional Information

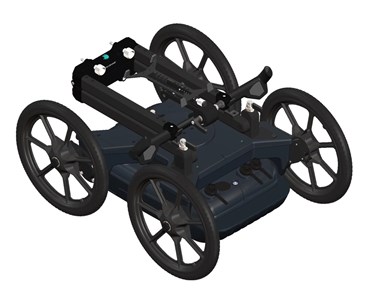

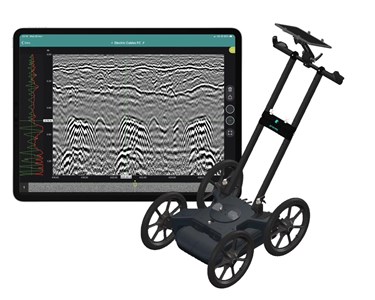

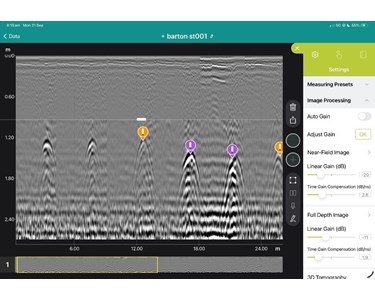

The GS8000 Lite is designed for simple operation in difficult sites, featuring off-road wheels and a foldable design for compact transport. It supports a high-frequency view for close-spaced and deep target review, and data can be shared instantly via the Proceq GPR Subsurface App on an Apple iPad.
