Danatronics Echo Pro Ultrasonic Flaw ...

Danatronics - Echo Pro Ultrasonic Flaw Detector Price Guide: $11,000

Supplier: PCTE - Construction

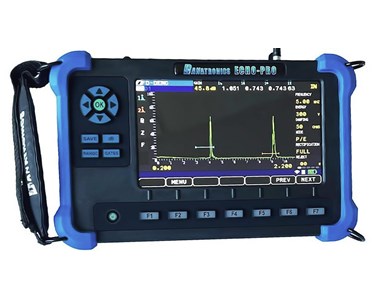

Echo Pro Ultrasonic Flaw Detector

1/2

The Echo Pro Ultrasonic Flaw Detector offers exceptional speed and ease of use, making it ideal for demanding ultrasonic inspections.

Video for Danatronics Echo Pro Ultrasonic Flaw Detector

Portable ultrasonic flaw detector with advanced features.

Receive 3-7 days from order

Overview

The Echo Pro Ultrasonic Flaw Detector is a state-of-the-art portable device designed to meet the needs of professionals in ultrasonic flaw detection. Built on over 70 years of expertise, it combines user-friendly features with advanced technology to ensure precise and efficient inspections.

Key Features

7” sunlight-readable Multi-Touch Display: Ensures visibility in various lighting conditions.
2 independent gates: Allows for precise amplitude and time-of-flight measurements.
Color change and vibrate on alarm: Provides immediate feedback during inspections.
Designed for IP67: Offers robust protection against dust and water.
8-10 hour battery life: Supports extended field operations without interruption.
Standard features: Includes datalogger, DAC, AWS, B-Scan, Wi-Fi, and Bluetooth connectivity.
Advanced features: Offers extended range, TVG, back echo attenuation, and more.

Applications

The Echo Pro is versatile and suitable for various applications including weld inspection, delaminations, porosity, disbond, forgings, castings, refining, power generation, oil and gas, pipeline inspection, tank inspection, and thickness surveys.

Technical Specifications

Size	252 mm x 157 mm x 64 mm
Weight	1.63 kg with battery, 1.18 kg without
Operating Temperature	-20 °C to 50 °C
Battery Life	8-10 hours
Battery Type	7.2V, 13.6AHr rechargeable lithium-ion
Power Requirements	AC Mains: 100-240 VAC, 50-60 Hz 1.4A max Input
Communication	USB, Wi-Fi, Bluetooth, RS-232 (Optional)
Languages	English, French, Spanish, Italian, Portuguese, German, Slovak, Swedish, Russian, Chinese, Japanese, Czech, Finnish, Hungarian
Certifications	CE certified, RHOS compliant, designed for IP67, ASTM E317-15 calibration certificate included

Warranty

The Echo Pro comes with a limited 2-year warranty under normal use on parts and labor, with an optional Dan-A-Care extension for up to 3 more years.
