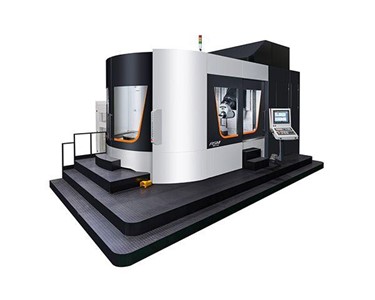

The Vision Wide ASM Series is a high-performance 5-axis CNC turning and milling center engineered for precision machining of cylindrical components. Designed for aerospace, automotive, and mould industries, it delivers exceptional speed, accuracy, and synchronized multi-axis control for complex geometries.

The ASM Series represents Vision Wide’s first venture into 5-axis CNC universal machining centers, combining turning and milling capabilities in a single platform. It is purpose-built for delicate cylindrical components and excels in applications requiring high-speed, multi-axis precision—such as aerospace parts, turbine blades, and aluminium moulds.

Equipped with a 5-axis universal head and rotary shafts powered by direct drive motors, the ASM Series ensures smooth, backlash-free rotation. The machine’s structure is refined through topology analysis to optimise the distance between the tool center point and the B-axis transmission, improving rigidity and machining accuracy.

Each model in the ASM Series supports high acceleration and rapid feed rates, making it suitable for demanding production environments. The series also includes advanced features such as coolant-through spindle systems, air-through spindle, and error correction mechanisms for universal head rotation.

Standard Inclusions

• HEIDENHAIN TNC 640 Controller
• Z axis travel 1,050 mm
• Dynamic collision monitoring
• 45° universal head central monitoring protection system
• Spindle and structure thermal compensation system
• Air blast through spindle
• Spindle cooling system
• Button for tool clamping
• Spindle ring cutting coolant device
• Universal head external cutting coolant device
• Wash gun and pneumatic interface
• Cutting fluid cooling system
• Centralized auto lubrication system
• Independent lubrication oil collector for 3 axes
• Enclosed sheet metal guard (with roof)
• Horizontal chain type magazine 40 tools
• Screw type chip conveyor on table sides
• Steel belt chip conveyor / water tank
• Swivelling operation panel
• Movable manual pulse generator
• Air conditioner for electrical cabinet
• X/Y/Z axis linear scale
• CNC simulation
• Auto power off function
• Tool axis retract function at power failure
• RJ45 interface
• Working lamp
• Operation cycle finish and alarm light
• Remote monitoring software (standard)
• Foundation pads and bolts kits
• Adjustment tool and tool kits
• Technical manuals (operation, maintenance manual and circuit diagram)

Optional Extras

• SIEMENS ONE Controller
• CG30X-01-07 / 7,000 rpm / HSK-A100
• HF29X-01-24 / 24,000 rpm / HSK-A63
• CM21X-04-10T / 10,000 rpm / HSK-T100
• CG30X-02-07T / 7,000 rpm / HSK-T100
• Spindle cutting vibration protection device
• Air through spindle ring
• Coolant through spindle system 20 / 60 bar
• Coolant through spindle system 20 / 60 bar and air through spindle 6 bar
• The interface of coolant through spindle
• Oil skimmer
• Oil mist cooling device (MQL)
• Chip clean flushing device at roof
• Coolant chiller
• Horizontal chain type magazine 60 / 119 tools
• Helical blade screw conveyor on table sides
• Chip clean flushing device on table side grooves
• Drum type chip conveyor / water tank
• Dual belt type chip conveyor / water tank
• Chip cart
• Auto workpiece measurement
• Auto tool measurement
• Adaptive feed control (AFC)
• Auto warm up
• Oil mist recycle device
• Remote monitoring software (professional)
• Spin window
