Featuring linear motor drives, high-resolution feedback systems, and advanced control technology, the AP Series is ideal for industries demanding micron-level accuracy and surface integrity.

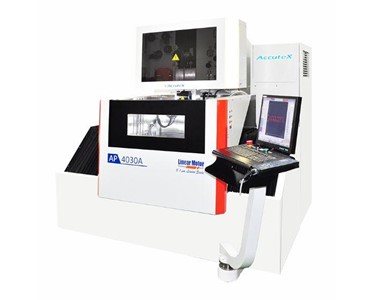

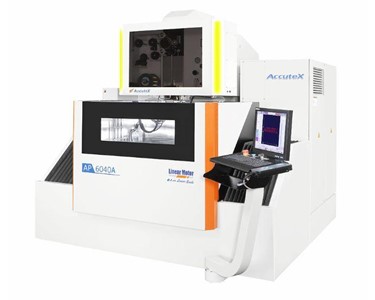

The Accutex AP Series Wire Cut EDM machines are designed for high-precision applications, featuring a high-rigidity structure with a compound table design that minimizes deformation and enhances load capacity.

The series includes a new generation shaft-type linear motor with closed-loop control and 0.1μm resolution linear scale, ensuring backlash-free accuracy and improved cutting efficiency.

The machines are Industry 4.0 compatible, supporting M2M protocol for real-time production and full automation. The ultra-resolution signal processor achieves smoother velocity and stable position control.

The AP Series also offers advanced features such as automatic wire threading, core remove module, and fine wire application for micro-machining.

Optional extras include a rotary table package, high-pressure water jet threading, and remote monitoring. These features make the AP Series a versatile and efficient solution for various industries, including aerospace, medical device manufacturing, and mold & die production.

Standard Inclusions

• SD Master
• Touch Screen
• XY Axes Linear Motor System
• 0.1μm Resolution Linear Scale
• Anti-Collision on XYUV Axes
• Safety Door Interlock
• Automatic Sliding door
• Upper/ Lower Flushing Nozzle
• Diamond Guide
• Conductor Plate
• Brass Wire
• Ion Exchange Resin
• Ion Resin Tank
• Paper Filter
• Waste Wire Bin
• Vertical Alignment Jig
• Diamond Guide Remove Jig
• Tools and Clampers
• Machine Status Indicator
• Tool Box

Optional Extras

• Transformer
• Auto Voltage Stabilizer
• Water Chiller
• MST II Power Module
• PCD/ Graphite Power Module
• Rotary Table Package (W axis)
• 0.05mm~0.1mm Fine Wire Application
• 0.05μm Resolution Linear Scale
• Auto Wire Threading (AWT)
• High Pressure Water Jet Threading
• 45Kg Wire Jumbo Feeder
• Remote Master
• GSM Messenger
• Anti-Collision on Z-Axis
• Industry 4.0 Intelligent
• Manufacturing Integration System
• Probing Measuring System
