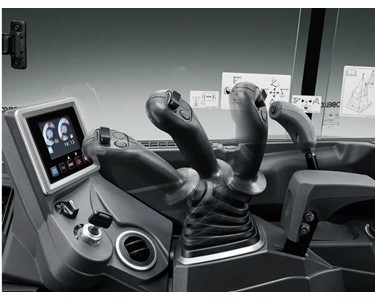

Hydraulic pilot-controlled dozer

The latest Series 7 versions of the SK28SR, SK30SR and SK35SR cater for operating weight requirements from three to four tonnes, with base machine weights ranging from 2,930kg to 3,890kg. The zero tailswing design makes them ideal for operating in limited space, and a versatile machine for a variety of applications.

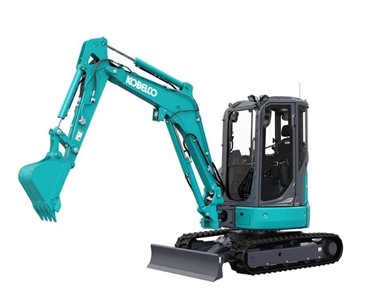

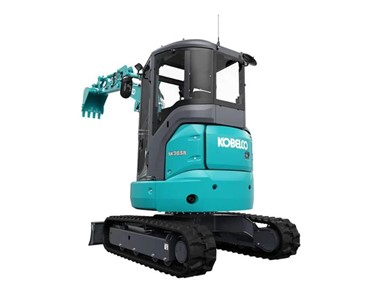

The new Kobelco SK28SR-7, SK30SR-7 and SK35SR-7 mini excavators deliver superior performance thanks to their increased engine output (from 18 to 19kW). Their larger bucket cylinders (from 65 to 70mm) also result in an increase in bucket digging force.

Features of this product

Zero tailswing design makes them ideal for operating in limited space

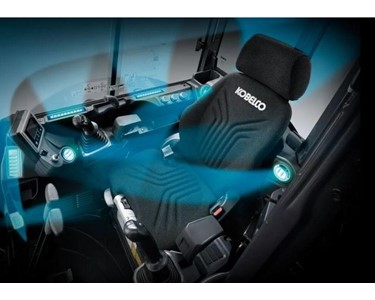

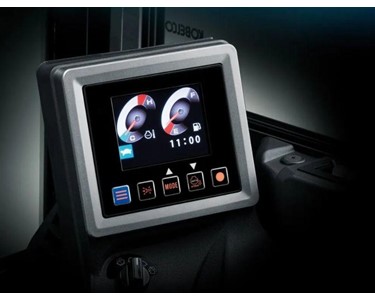

Newly designed cabin interior with a standard colour display
Delivers superior performance thanks to an increased engine output
Like all Kobelco mini excavators, the SK28SR comes with a standard 4 year/4,000 hour Full Machine Warranty.

Specifications of this product

Transport Dimensions
Length, Width & Height 4.73 x 1.55 x 2.55 m
Operating Weight 3,570 kg

Refilling Capacities
Fuel Tank 42 L
Hydraulic Oil Tank 20.4 (44.8) L

Working Range
Max. Digging Depth 2.83 m
Max. Digging Reach 5.20 m

Engine
Rated Power Output 18.9 kW
Rated Torque 88.0 Nm

Breakout Force
Bucket Digging Force 32.2 kN
Arm Crowding Force 19.1 kN

Hydraulic System
Max. Pump Flow 2 x 38.4, 1 x 19.2, 1 x 10.8 L/min
Standard Auxiliary N&B + Tilt Piping
