GWEIKE Compact Sheet Metal Cutting Fiber ...

GWEIKE - Compact Sheet Metal Cutting Fiber Laser | LF3015P Pro Price Guide: $93,390

Supplier: Koenig Machinery

Compact Sheet Metal Cutting Fiber Laser | LF3015P Pro

The Gweike LF3015P Pro combines a full-size 3000 × 1500 mm cutting bed with a space-saving enclosed design and slide-out table, making it ideal for precision metal cutting where floor space and efficiency matter.

Video for GWEIKE Compact Sheet Metal Cutting Fiber Laser | LF3015P Pro

Compact High Precision Fiber Laser

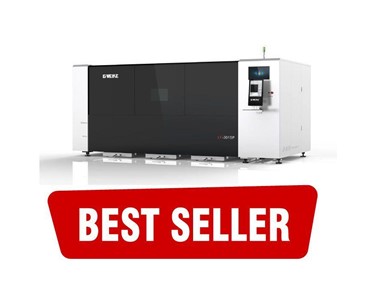

Gweike LF3015P Pro – Enclosed Fiber Laser Cutting Machine with Slide-Out Table

Product Description

The Gweike LF3015P Pro is a fully enclosed fiber laser cutting machine engineered for precision, safety, and efficient material handling. Featuring a 3000 × 1500 mm cutting bed with a single slide-out table, it delivers industrial cutting performance in a compact, workshop-friendly footprint.

The slide-out table allows sheets to be loaded externally using a forklift or crane, improving workflow efficiency and reducing downtime between jobs. Combined with a rigid frame, precision motion components, and advanced control software, the LF3015P Pro is built for reliable, repeatable production.

Specifications of This Product

Cutting area: 3000 × 1500 mm
Laser power options: 1.5 kW to 6 kW
Laser source options: MAX, Raycus, or IPG
Machine structure: Fully enclosed with electronically interlocked access door
Table design: Single slide-out loading table
Drive system: Precision rack and pinion with servo motors
Gantry: Aviation-grade aluminium
Control system: Cypcut CNC control software
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Supported file formats: DXF, AI, PLT, G-code and common CAD/CAM formats

Features of This Product

Fully enclosed cutting area for enhanced operator safety
Slide-out table for efficient loading and unloading of full sheets
Compact footprint suitable for space-conscious workshops
Stable machine frame for consistent cut quality
High-speed motion control for smooth acceleration and deceleration
Integrated monitoring for real-time process observation
Intelligent nesting and edge detection via Cypcut software

Applications of This Product

General metal fabrication
Sheet metal cutting for manufacturing and production
Signage and architectural metalwork
Agricultural and industrial component fabrication
Prototyping and small-to-medium batch production
Custom metal parts and job shop work

Why Choose This Product

The Gweike LF3015P Pro offers a practical balance between industrial fibre laser performance and workshop efficiency. Its slide-out table simplifies material handling without the complexity of full automation, while the enclosed design improves safety and compliance. With flexible laser power options and proven control software, it is a reliable solution for businesses looking to increase cutting capability without sacrificing floor space.

Technical Parameters	Specification
Laser Power	1.5kW / 2kW / 3kW / 4kW / 6kW
Bed size	3000 x 1500mm
Machine Size	470033302415mm
Laser source type	MAX, Raycus or IPG
Laser Head Type	Automatic focussing laser head 1-2kW = Raytools BM111 3kW = BOCI BLT421 6kW = BOCI BLT442
Cooling Type	Industrial Water Cooling – S&A water chiller
Moving Speed	80m/min
Acceleration	1.0G
Laser Output Control	0-100% set by software
Drive method	YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive
Positioning Accuracy	0.03 mm
Re-positioning accuracy	0.02mm
Minimum line width	0.1mm
Controlling Software	Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection
Graphic Format Supported	Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc.
Compatible Software	Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc.
Colour Separation	Yes (imports colours to control cutting layers)
Auxiliary Equipment	Exhaust Fan, Industrial water-cooling unit
Power Supply	Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp
Gas Regulation	Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting)
Gas connection	O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS
Working Environment	Temperature:0-45C, Humidity 5-95% (No Condensate Water)

Gweike LF3015P Pro – Enclosed Fiber Laser Cutting Machine with Slide-Out Table

Product Description

Specifications of This Product

Cutting area: 3000 × 1500 mm
Laser power options: 1.5 kW to 6 kW
Laser source options: MAX, Raycus, or IPG
Machine structure: Fully enclosed with electronically interlocked access door
Table design: Single slide-out loading table
Drive system: Precision rack and pinion with servo motors
Gantry: Aviation-grade aluminium
Control system: Cypcut CNC control software
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Supported file formats: DXF, AI, PLT, G-code and common CAD/CAM formats

Features of This Product

Fully enclosed cutting area for enhanced operator safety
Slide-out table for efficient loading and unloading of full sheets
Compact footprint suitable for space-conscious workshops
Stable machine frame for consistent cut quality
High-speed motion control for smooth acceleration and deceleration
Integrated monitoring for real-time process observation
Intelligent nesting and edge detection via Cypcut software

Applications of This Product

General metal fabrication
Sheet metal cutting for manufacturing and production
Signage and architectural metalwork
Agricultural and industrial component fabrication
Prototyping and small-to-medium batch production
Custom metal parts and job shop work

Why Choose This Product

Technical Parameters	Specification
Laser Power	1.5kW / 2kW / 3kW / 4kW / 6kW
Bed size	3000 x 1500mm
Machine Size	470033302415mm
Laser source type	MAX, Raycus or IPG
Laser Head Type	Automatic focussing laser head 1-2kW = Raytools BM111 3kW = BOCI BLT421 6kW = BOCI BLT442
Cooling Type	Industrial Water Cooling – S&A water chiller
Moving Speed	80m/min
Acceleration	1.0G
Laser Output Control	0-100% set by software
Drive method	YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive
Positioning Accuracy	0.03 mm
Re-positioning accuracy	0.02mm
Minimum line width	0.1mm
Controlling Software	Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection
Graphic Format Supported	Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc.
Compatible Software	Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc.
Colour Separation	Yes (imports colours to control cutting layers)
Auxiliary Equipment	Exhaust Fan, Industrial water-cooling unit
Power Supply	Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp
Gas Regulation	Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting)
Gas connection	O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS
Working Environment	Temperature:0-45C, Humidity 5-95% (No Condensate Water)
