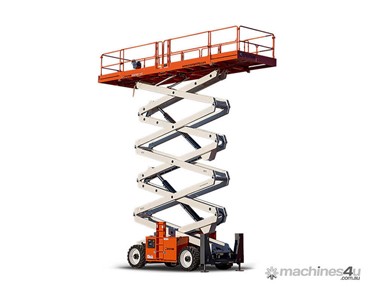

Largest ultra-capacity rough terrain scissor lift with 23.3m max working height and 907kg platform capacity.

Key Features

Largest ultra-capacity rough terrain scissor lift in North America
Twin extension deck for expansive working area
High lifting capacity: 907kg
4WD with hydraulic stabilisers and automatic levelling
Dual-powered extension decks and extra-wide pallet gate
Proportional joystick controls for precision
Fold-down guardrails, flashing amber lights, and descent alarms for enhanced safety
Rough terrain capabilities (50% gradeability)

Specifications

Max Working Height	23.3 m
Max Platform Height	21.3 m
Platform Size (stowed)	4.87 m x 2.28 m
Platform Size (extended)	8.23 m x 2.28 m
Extension Deck Length	1.37 m
Overall Width	2.28 m
Overall Length	4.87 m
Stowed Height	3.43 m
Min Height (guardrails folded)	2.5 m
Ground Clearance	356 mm
Platform Capacity (SWL)	907 kg
Max Drive Height	13.1 m
Max Wind Speed	12.5 m/s
Max Drive Speed (stowed/elevated)	6.7 km/h / 0.96 km/h
Raise/Lower Time	70/40 seconds
Gradeability	50%
Max Stabiliser Levelling (front/rear/side)	6° (front to rear), 12° (side to side)
Turning Radius (inside/outside)	2.4 m / 5.6 m
Tyres	13 x 36 foam filled
Power Source	Kubota diesel
Weight	11,566 kg

Additional Features

4 hydraulic stabilisers with automatic levelling
Manual lowering valve and dual lanyard attachment points
Hour meter & on-board diagnostics display
Platform overload system for added safety
Locking, oscillating axle
Power line to platform

Perfect for challenging construction and industrial jobsites requiring significant working height and load capacity along with superior off-road capability.

To contact Equipment Sales Australia about Snorkel S9070RT-HC Rough Terrain Scissor Lift use Get a quote.

Key Features

Largest ultra-capacity rough terrain scissor lift in North America
Twin extension deck for expansive working area
High lifting capacity: 907kg
4WD with hydraulic stabilisers and automatic levelling
Dual-powered extension decks and extra-wide pallet gate
Proportional joystick controls for precision
Fold-down guardrails, flashing amber lights, and descent alarms for enhanced safety
Rough terrain capabilities (50% gradeability)

Specifications

Max Working Height	23.3 m
Max Platform Height	21.3 m
Platform Size (stowed)	4.87 m x 2.28 m
Platform Size (extended)	8.23 m x 2.28 m
Extension Deck Length	1.37 m
Overall Width	2.28 m
Overall Length	4.87 m
Stowed Height	3.43 m
Min Height (guardrails folded)	2.5 m
Ground Clearance	356 mm
Platform Capacity (SWL)	907 kg
Max Drive Height	13.1 m
Max Wind Speed	12.5 m/s
Max Drive Speed (stowed/elevated)	6.7 km/h / 0.96 km/h
Raise/Lower Time	70/40 seconds
Gradeability	50%
Max Stabiliser Levelling (front/rear/side)	6° (front to rear), 12° (side to side)
Turning Radius (inside/outside)	2.4 m / 5.6 m
Tyres	13 x 36 foam filled
Power Source	Kubota diesel
Weight	11,566 kg

Additional Features

4 hydraulic stabilisers with automatic levelling
Manual lowering valve and dual lanyard attachment points
Hour meter & on-board diagnostics display
Platform overload system for added safety
Locking, oscillating axle
Power line to platform

Perfect for challenging construction and industrial jobsites requiring significant working height and load capacity along with superior off-road capability.
