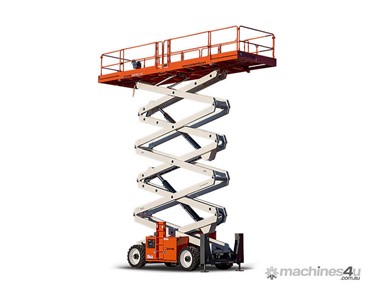

Ultra-high capacity lift with twin extension decks and heavy-duty rough terrain capability.

This ultra-capacity scissor lift is engineered for high lift capacity and elevated workspaces, ideal for rugged terrains. With twin extension decks and an extra-wide pallet gate, it is constructed to handle heavy-duty tasks while maximising efficiency and safety onsite.

Key Features

4-wheel drive for enhanced rough terrain capability
Dual powered extension decks
Hydraulic stabilisers with automatic levelling (4 units)
Foam-filled tyres
Proportional controls with joystick operation
Power line to platform & platform overload system
Drive and descent motion alarms
Fold-down guardrails and dual lanyard attachment points
Manual lowering valve and on-board diagnostics display
Locking, oscillating axle for improved stability
Flashing amber lights and hour meter

Specifications

Maximum Working Height	19.1 m
Maximum Platform Height	17.1 m
Platform Size (stowed)	4.87 m x 2.28 m
Platform Size (extended)	8.23 m x 2.28 m
Platform Capacity (SWL)	1,134 kg
Weight	9,072 kg
Drive System	4-wheel drive, Kubota diesel
Stowed Height	3.09 m
Minimum Height (guardrails folded)	2.1 m
Ground Clearance	356 mm
Maximum Drive Height	13.1 m
Maximum Wind Speed	12.5 m/s
Drive Speed (stowed/elevated)	6.7 km/h (stowed), 0.96 km/h (elevated)
Gradeability	50%
Turning Radius (inside/outside)	2.4 m (inside), 5.6 m (outside)
Tyres	13 x 36 foam filled
Extension Deck Length	1.37 m
Raise/Lower Time	55/35 seconds
Stabilisers Level (front to rear/side to side)	6° (front to rear), 12° (side to side)

Additional Information

Includes fold-down guardrails for low-clearance storage
Comes with 2 years parts & labour and 5 year structural warranty (whichever comes first, conditions apply)
Batteries to be returned for recycling at end of life

To contact Equipment Sales Australia about Snorkel S9056RT-HC Rough Terrain Scissor Lift use Get a quote.
