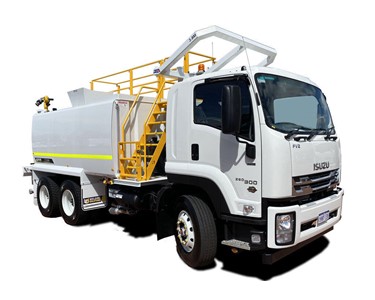

Designed for high durability in mining with a 14,000L tank and 3-year warranty.

Key Features & Specifications

14,000L heavy-duty steel water tank—6mm plate construction, 10mm floor, pressed ends, baffles, and sides for enhanced strength.
Vehicle: 296 HP diesel engine, steel spring suspension, Allison 6-speed automatic transmission, Euro 5 compliant with no AdBlue requirement.
3-year/200,000 km warranty, 26,000 kg GVM.
Comprehensive high-quality paint—abrasive blasted, two-pack epoxy internal liner, high-gloss exterior.
Steel guards with mud flaps.

Pumping & Hydraulics

Southern Cross water pump (100 x 65 x 250), hydraulically driven by Permco hydraulic motor.
Hot shift PTO, 200L hydraulic tank with spin return oil filter.
Pneumatic in-cab control box, engraved switch panel.
3 x 3” spray head valves (extra/batter sprays optional).
1 x 4” gravity-fed dribble bar (cab controlled), quick exhaust valves for faster action.
3” pressurised discharge outlet with manual valve, 3” chassis-level fill point with ball valve.
Pipework for creek suction self-filling.
1” sight gauge, safety pressure relief valve.
Heavy-duty spring return hose reel with 20 m of 25mm rubber hose and adjustable nozzle.
Elkhart Brass electric water cannon, in-cab joystick control.

Electrical & Mine Spec Compliance

Electrical work to mine site specifications.
LED taillights, high lights, reverse light and alarm, emergency stops (in-cab and external).
Locksafe battery and starter isolator (colour coded).
LED rear work lights and rotating amber beacons (front and rear), illuminated flag pole at ROPS.
Jump start receptacle.

Safety Features

Optional safety handrail and access platform (fold-down, painted Y14 golden yellow, AS 1657-1992 compliant).
ROPS (rollover protection system, ISO3471-2008) and FOPS (falling object protection) upgrades available.
2 x 9 kg fire extinguishers in over-centre hold down bracket.
LED lighting for high visibility, 2 x wheel chocks, comprehensive safety labelling.

Optional Extras & Customisation

High visibility reflective tape, toolbox, batter sprays, canvas seat covers, electric cannon nozzle, UHF radio.
Custom-built options to suit customer requirements.

To contact Welding Solutions about Isuzu Water Truck 14,000L Mine Spec use Get a quote.
