Enerpat - Single Output Metal Briquetting Press

Supplier: Enerpat Group

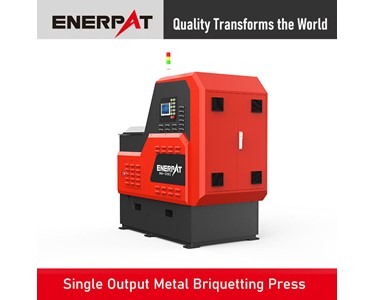

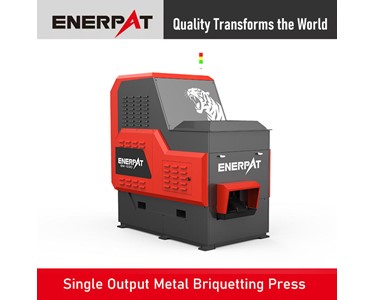

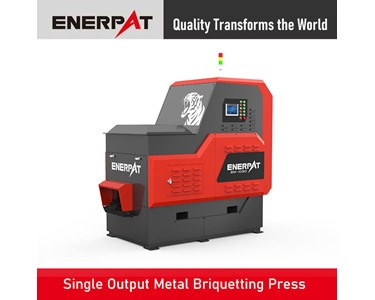

Single Output Metal Briquetting Press

The Single Output Metal Briquetting Press efficiently compacts metal chips into briquettes, enhancing workshop cleanliness and scrap value while supporting sustainable waste management.

Video for Enerpat Single Output Metal Briquetting Press

Achieves up to 95% oil removal from metal chips, ensuring cleaner, more profitable recycling.

Overview

The Single Output Metal Briquetting Press from the BM Series is designed for machining and recycling shops. It compresses aluminium, steel, stainless steel, iron, and copper chips into solid briquettes, recovering cutting fluid and freeing up valuable floor area. This eco-friendly machine increases scrap value and profitability, supports compliance with green regulations, and simplifies workshop operations.

Key Features

Efficient Compression: Maximises space by compressing various metal chips into dense briquettes.
Cutting Fluid Separation: Achieves up to 95% oil removal, virtually eliminating coolant leakage and contamination.
Eco-Friendly and Energy Efficient: Meets environmental standards and optimises workshops for sustainable operations.
Economic Benefits: Increases scrap metal price by $280 to $420 (AUD) per tonne (e.g., for iron chips), delivering major profitability improvements.
Stable Performance: Equipped with Siemens and Schneider core components for enhanced reliability.
Advanced PLC Control: Smart Siemens/Schneider PLC system with real-time monitoring, automatic alerts, and intuitive touch-screen controls.
Warranty: One year on the machine, five years on the motor, CE and ISO certified.
Comprehensive Support: Material testing, design solutions, technical support, installation training, and wear part replacement included.
Global Service: R&D in the UK, with service points in the US and globally for optimal support.

Technical Specifications

Model	Press Force (tonnes)	Bale Diameter (mm)	Motor (kW)	System Pressure (MPa)	Dimensions (mm)	Weight (kg)	Operation
BM-1090	100	90	11	25	2210 × 1050 × 1890	3000	Fully Automatic
BM-1612	160	120	18.5	25	3220 × 1320 × 2400	4000	Fully Automatic
BM-2013	200	130	22	25	3300 × 1420 × 2530	5000	Fully Automatic

Composition and Operation

Efficient Feeding System: Vertical screw design enables forced, uninterrupted feeding; horizontal screw prevents material bridging.
Durable Compression Chamber: High-hardness, wear-resistant chamber for uniform, solid briquettes with adjustable size.
Industrial Chiller: Supports 24/7 multi-shift operation with fixed/ambient temperature synchronisation.
High-Quality Hydraulic Cylinder: Five-year warranty, leak-resistant hollow design, premium components for longevity and efficiency.
Advanced PLC System: Real-time status monitoring, smart programming, user-friendly interface.

Typical Applications

Metal recycling shops
Machining operations
Facilities generating aluminium, steel, iron, or copper chips

Successful Cases & Materials Processed

BM-1090: Aluminium turnings, aluminium chips
BM-4015: Iron shavings
BM-1612: Copper chip
BM-3014: Aluminium chips
BM-6320: Copper chips

To contact Enerpat Group about Enerpat Single Output Metal Briquetting Press use Get a quote.
