Compact, durable shear processes a wide range of metal scrap with automated, high-efficiency operation.

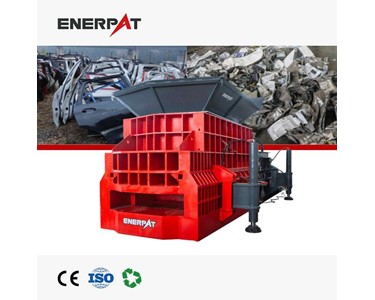

The Scrap Metal Shear, also known as a box shear or compact container shear, is designed to handle a wide range of ferrous and non-ferrous scrap materials. This horizontal shear is compact, easy to transport, and quick to install, making it ideally suited for small scrap yards, remote locations, and temporary demolition jobs.

Key Features

Processes a broad mix of materials including sheet steel, aluminium frames, light scrap steel, end-of-life vehicle bodies, rebar, pipe, structural profiles, and selected heavy melting scrap.
True automation allows continuous operation without the need for a full-time operator.
Flexible and compact unit; can be installed quickly with no permanent foundation required.
Available with electric or diesel power options.
Integrated hydraulic legs for self-lifting and simple trailer transport.
Wear-resistant liners and quality components to maximise longevity and reduce downtime.
Large hopper and continuous automatic cycling for uninterrupted material flow and maximum productivity.

Technical Specifications

Model	EMS-CS630-14
Shearing Force	630 t
Compressing Force	170 t
Blade Size	1400 × 420 mm
Feeding Port Size (L × W)	2000 × 1400 mm
Motor Power	90 kW
Output	2.5–4.5 t/h
Machine Length	5,900 mm
Machine Width	2,100 mm
Machine Height	2,600 mm
Machine Weight	40 t

Operational Advantages

Horizontal stepped hold-down compresses and secures scrap for precision cutting.
Continuous slide motion ejects cut material for smoother workflow.
Quick-change wear liners rated at 450 for easy maintenance.
Simple relocation for flexible site deployment.

To contact Enerpat Group about Enerpat Scrap Metal Shear | Compact Box Shear use Get a quote.
