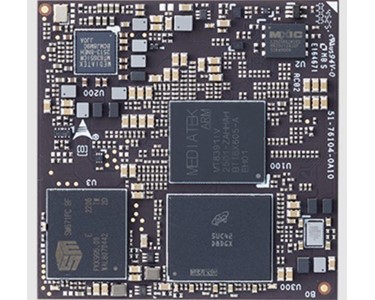

Computer on Modules | OSM-MTK520 Get latest price

Read more...

To contact Micromax about Computer on Modules | OSM-MTK520 use Get a quote.

Key Features

• MediaTek Genio 520 SoC with dual core Arm Cortex-A78 and hexa core Cortex-A55

• MediaTek 8th Gen NPU delivers up to 10 TOPS

• Up to 16GB LPDDR5, up to 256GB UFS

• DP, eDP, DSI, LVDS graphic output

• 10/100/1000 RGMii Ethernet with TSN support

• Extreme Rugged operating temperature: -40°C to +85°C (optional)

• OSM R1.2 compliant, Size-L (45mm x 45mm)

• 10 years product availability

Next-Gen Edge AI with the High Performance OSM-MTK520, 2x Arm Cortex A78 and 6x Arm Cortex A55

Accelerate your edge AI deployments with the ADLINK OSM-MTK520 OSM R1.2 Size-L module featuring the advanced MediaTek Genio 520 series processor. Equipped with a dual-core Arm Cortex-A78 and a hexa-core Cortex-A55 , it boasts an impressive MediaTek 8th Gen NPU engine capable of up to 10 TOPS , making it ideal for edge AI applications. This module excels in providing edge AI processing at ultra-low power consumption.

Supporting a variety of graphic outputs including DP, eDP, MIPI-DSI and LVDS, and comprehensive connectivity options such as 1x GbE with TSN support, I2S audio codec interface, 1x USB 3.1, and 2x USB 2.0 interfaces, the OSM-MTK520 is versatile and robust. It also includes 18x GPIO and ensures long-term availability with a 10-year product lifecycle.

Designed to meet the highest safety standards with an integrated security island, the OSM-MTK520 is available in rugged operating temperature options ranging from –40° C to 85° C. This makes it the perfect solution for demanding edge AI applications, where reliability and performance are paramount.

Specifications:

• MediaTek Genio 520 series processor with 2x Arm Cortex A78 and 6x Arm Cortex A55

• SGeT OSM R1.2 compliant, Size-L module (45mm x 45mm)

• Integrated 8th Gen MediaTek NPU delivers up to 10 TOPS

• Up to 16GB LPDDR5 memory, up to 256GB UFS storage

• DP, eDP, MIPI-DSI and LVDS display options, 2x MIPI-CSI 4-lanes

• GbE LAN + TSN, USB 3.1, UART, SPI, I2S, I2C, and GPIO

• Industrial temperature: -40°C to +85°C (optional)

• 10 years product availability
