Konecranes Electric Chain Hoist | EX ...

Konecranes - Electric Chain Hoist | EX C-series for Zone 22

Supplier: Konecranes and Demag

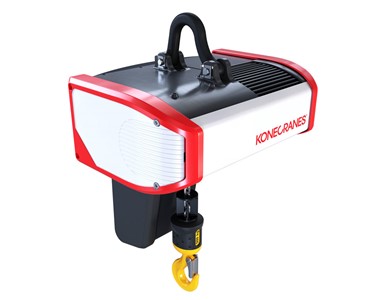

Electric Chain Hoist | EX C-series for Zone 22

The C-series electric chain hoist is a robust and advanced lifting solution designed for precise and reliable operations, ideal for a range of industrial applications.

Video for Konecranes Electric Chain Hoist | EX C-series for Zone 22

Designed for over a million reliable operations with minimal maintenance.

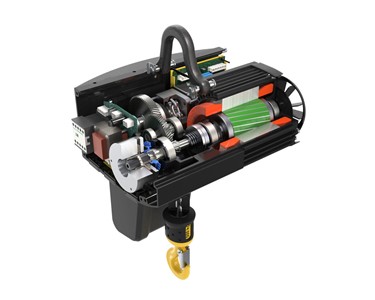

The C-series electric chain hoist is engineered for industrial environments requiring ergonomic, reliable, and precise lifting up to 5,000 kg. Built with the Core of Lifting components—purpose-built motor, controls, and gearbox—it's designed for over a million operations and minimal scheduled maintenance.

Key Features

Simple and versatile bracket for easy and safe installation
Precision gears with lifetime lubrication
High-quality, purpose-built hoisting motor
Fan cooling with overheating protection
Durable limit switches for added safety
Self-adjusting brake with minimal maintenance required
Easily adjustable slipping clutch prevents overload
Optimised chain drive for smooth, long-term operation
Ergonomic hook with non-slip coating for comfort and safety
Modular trolley, easily adjustable to flange width

Technical Specifications

Duty Class	Up to FEM 3m/ISO M6
Certifications	CE, RoHS, (CSA)
Lifting Capacity	Up to 5,000 kg
Electrical	Wide voltage range, low voltage control
Hooks	DIN 15401
Frame Paint	Anodised aluminium, 70 µm
Hoist Control	Pendant with cable
Chain	Galvanised load chain (T-grade)
Suspension	Bracket & full range of trolleys
Operating Temperature (40% ED, 240 starts/hr)	-20°C to +40°C
Operating Temperature (60% ED, 300 starts/hr)	-20°C to +50°C

Benefits

Longer continuous operation with cycling duty factor up to 60%
Robust motor for reduced maintenance
Designed for over a million operations
Automatic brake engagement on power loss
Wide choice of lifting speeds
Innovative slipping clutch and operational limit switch enhance durability and reliability
Shape and approach dimensions offer control, mobility, and efficient workspace usage
Quick, safe installation
Easy access to wearing components for maintenance
Ergonomic, intuitive controls for maximum safety and productivity

To contact Konecranes and Demag about Konecranes Electric Chain Hoist | EX C-series for Zone 22 use Get a quote.

Key Features

Simple and versatile bracket for easy and safe installation
Precision gears with lifetime lubrication
High-quality, purpose-built hoisting motor
Fan cooling with overheating protection
Durable limit switches for added safety
Self-adjusting brake with minimal maintenance required
Easily adjustable slipping clutch prevents overload
Optimised chain drive for smooth, long-term operation
Ergonomic hook with non-slip coating for comfort and safety
Modular trolley, easily adjustable to flange width

Technical Specifications

Duty Class	Up to FEM 3m/ISO M6
Certifications	CE, RoHS, (CSA)
Lifting Capacity	Up to 5,000 kg
Electrical	Wide voltage range, low voltage control
Hooks	DIN 15401
Frame Paint	Anodised aluminium, 70 µm
Hoist Control	Pendant with cable
Chain	Galvanised load chain (T-grade)
Suspension	Bracket & full range of trolleys
Operating Temperature (40% ED, 240 starts/hr)	-20°C to +40°C
Operating Temperature (60% ED, 300 starts/hr)	-20°C to +50°C

Benefits

Longer continuous operation with cycling duty factor up to 60%
Robust motor for reduced maintenance
Designed for over a million operations
Automatic brake engagement on power loss
Wide choice of lifting speeds
Innovative slipping clutch and operational limit switch enhance durability and reliability
Shape and approach dimensions offer control, mobility, and efficient workspace usage
Quick, safe installation
Easy access to wearing components for maintenance
Ergonomic, intuitive controls for maximum safety and productivity

Read less...

To contact Konecranes and Demag about Konecranes Electric Chain Hoist | EX C-series for Zone 22 use Get a quote.

brochure_c-series_hoist_2024_0(2.11MB)
