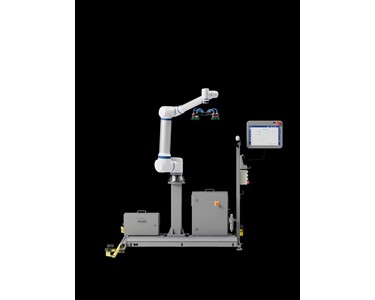

Elite Robots - Palletising Unit (Fixed Height) CPF10 Get latest price

Read more...

To contact Elite Oceania Pty Ltd about Elite Robots Palletising Unit (Fixed Height) CPF10 use Get a quote.

Applications of this product

The CP Series is designed for end-of-line palletising and stacking tasks across a wide range of industries. Typical applications include:

• Carton and box palletising

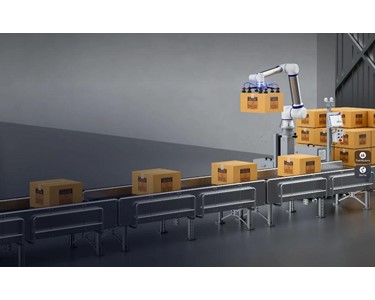

• End-of-line packaging operations
• De-palletising > value adding > re-palletising
• Small- to medium-scale palletisation
• Repetitive stacking processes
• Mixed SKU palletising
• Single and mixed case palletising
• Operations requiring frequent changeovers between pallet patterns or product sizes. It supports payloads from 20–30 kg, pallet sizes up to 1200 × 1200 mm, and stacking heights up to 2400 mm, making it suitable for diverse industrial environments

Features of this product

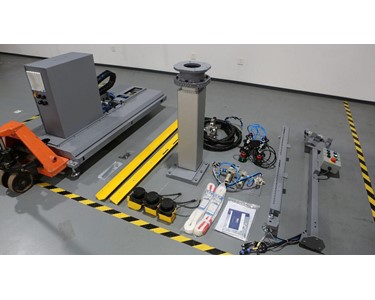

• Modular design with fixed column
• Collaborative robot arms (CS620, CS625, CS530H)
• Embedded palletising software with wizard-based setup
• No programming required
• Fast deployment (initial setup < 1 hour; task switch < 1 minute)
• Up to 14 boxes/min with dual vacuum cups

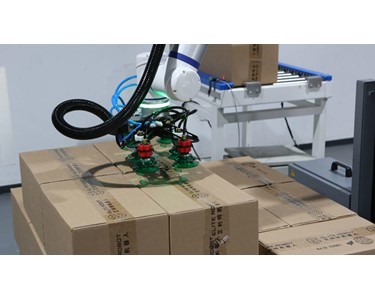

• EOAT compatibility with single or dual vacuum grippers
• Optional safety scanners with reduced mode and safety stop
• Compact footprint and lightweight structure
• 3D real-time palletising preview and live process monitoring
• Single and double track palletising support

Why choose this product (Benefits)

• Quick ROI: Typical return on investment in less than 12 months
• Ease of use: No coding or robot programming skills required
• High flexibility: Easily redeployed between production lines and applications
• Space-efficient: Minimal footprint without requiring layout changes
• Safe operation: Compliant with ISO 10218, ISO 13849, and ISO/TS 15066
• Reduced downtime: Rapid changeover between pallet patterns and products
• Cost-effective automation: Turnkey solution ready out of the box
• Future-proof: Modular architecture with optional accessories and upgrades

 Specifications of this product

Performance

• Max payload: 20–30 kg

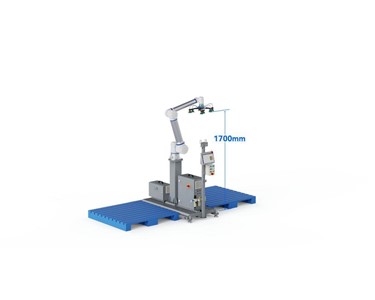

• Max palletising height: 1700 mm (CPF10) / 2400 mm (CPL07)
• Max speed: 7 boxes/min (single cup) / 14 boxes/min (dual cups)
• Max pallet size: 1200 × 1200 mm

Power & Environment

• Power supply: Single-phase 110/220 VAC, 50–60 Hz
• Peak power consumption: 2–3.5 kW
• Operating temperature: 0–50°C

Control & Connectivity

• I/O: 24 DI, 24 DO, 2 AI, 2 AO, High-speed DI
• Communication: RS485, Ethernet, Modbus TCP/RTU, Ethernet/IP, Profinet
• IP rating: IP44 (controller), IP54 (teach pendant)

Physical

• Footprint: 1400 × 1700 mm
• Teach pendant: 12.1” touchscreen (ERP400 / ERP400S)
